Pressure Regulating Solenoid: Testing and Inspection

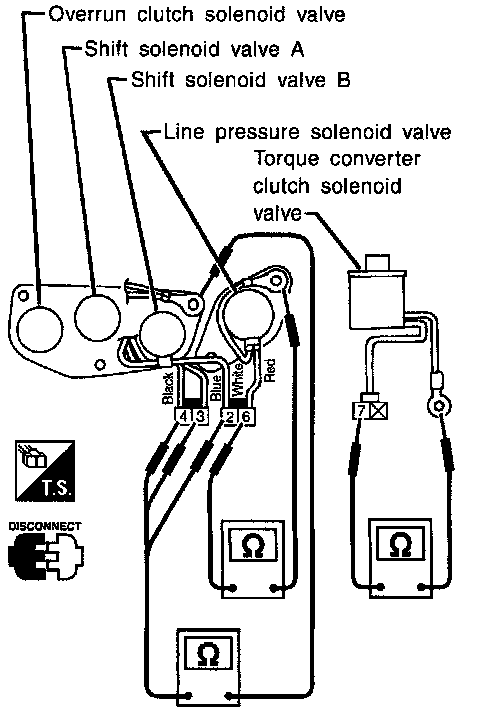

Resistance Check

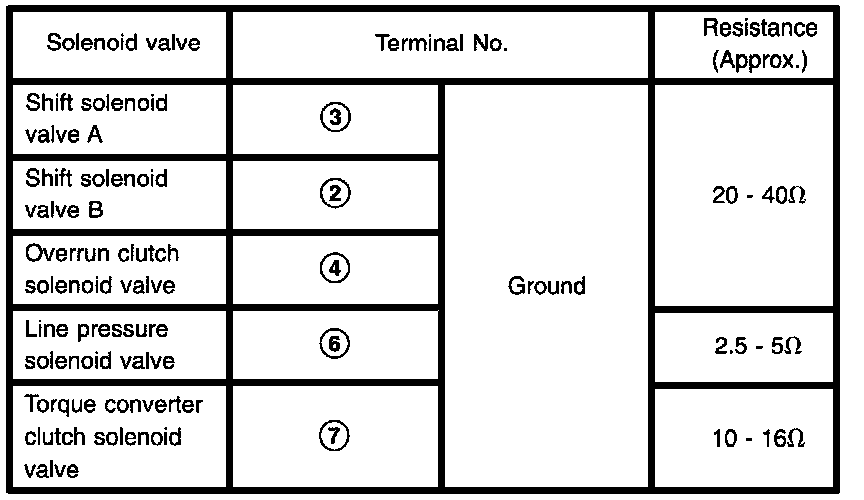

Check resistance between two terminals.

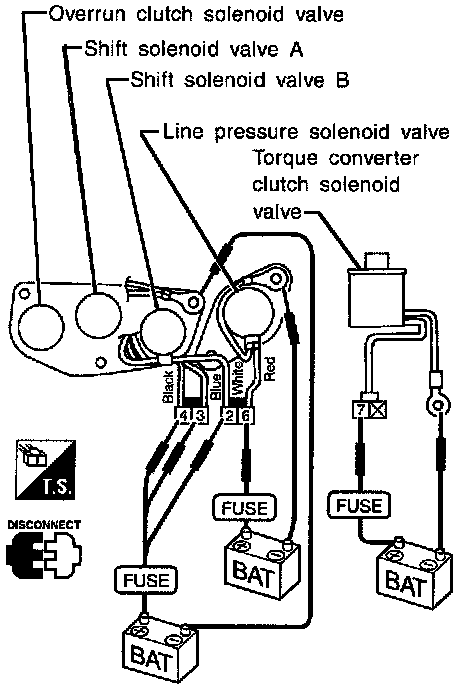

Operation Check
Check solenoid valve by listening for its operating sound while applying battery voltage to the terminal and ground.
