Manual Linkage With Floor Shift

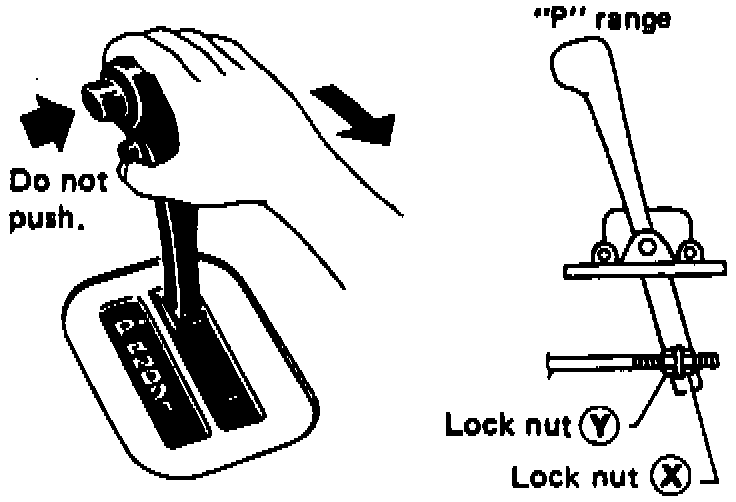

Fig. 7 Manual Linkage Adjustment:

1. Place selector lever in Park range.
2. Loosen locknuts, Fig. 7
3. Tighten locknut X until it touches trunnion, pulling selector lever toward reverse range side without pushing button.
4. Back off locknut X one turn and torque locknut Y to 8-11 ft.lbs.
5. Move selector lever from Park range to 1 range. Ensure lever moves smoothly.
