Manual Linkage With Column Shift

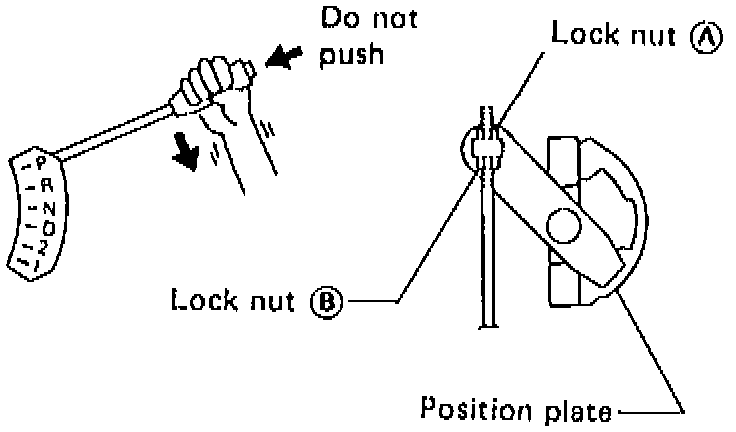

Fig. 8 Manual Linkage Adjustment:

1. Place selector lever in Park range.
2. Loosen locknuts, Fig. 8
3. Tighten locknut A until it touches trunnion, pulling selector lever toward reverse range side without pushing button.
4. Back off locknut A two turns and torque locknut "B" to 8-11 ft.lbs.
5. Move selector lever from Park range to 1 range. Ensure lever moves smoothly.
