Bedliner - Rattle Noise

Classification:
BT96-017

Reference:
NTB96-063

Date:
June 19, 1996

1994-96 TRUCK ACCESSORY BEDLINER RATTLE NOISE REPAIR

APPLIED VEHICLE(S):
1994-96 Truck (D21)

SERVICE INFORMATION

If a Nissan accessory bedliner in a 1994-96 Truck rattles in the wind at the upper rear edges, use the procedure in this bulletin to secure the bedliner to the truck bed.

SERVICE PROCEDURE

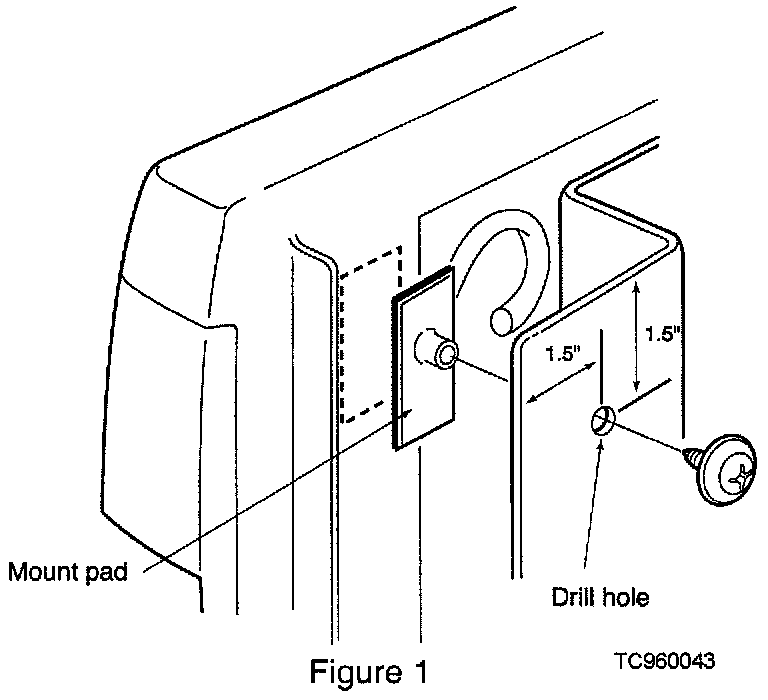

1. Drill a hole in the bedliner as shown (see Figure 1) to accommodate the screw from the mount pad kit.

2. Mount the pad to the truck bed.

3. Install the screw to secure the bedliner to the truck bed.

4. Perform the procedure on both sides of the truck bed.





PARTS INFORMATION

NOTE:
The kit contains six mount pads and six screws; enough for three repairs.

CLAIMS INFORMATION

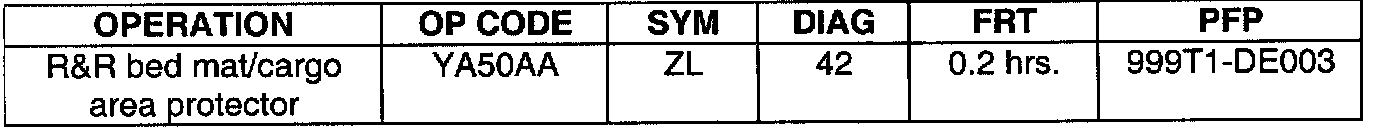

Submit a Primary Failed Part (PFP) claim using the coding as shown.
