Coil Spring

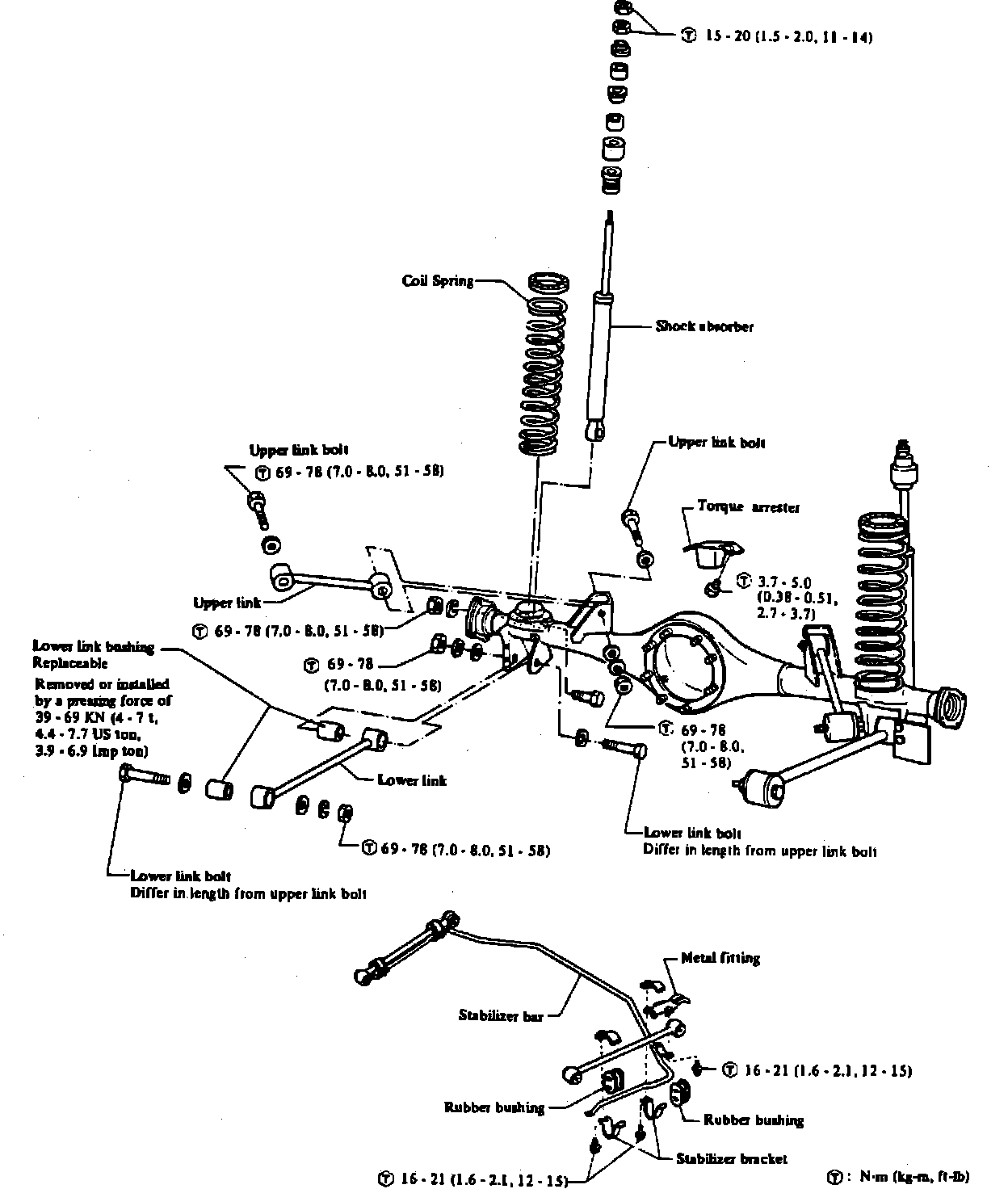

Fig. 8 Link Type Rear Suspension:

1. Raise vehicle and support underbody member on both sides.
2. Support rear axle with floor jack and remove both lower shock absorber mounting bolts. Remove rear wheels if necessary.
3. Slowly lower rear axle assembly and remove coil springs after they are fully extended.
4. To install, reverse procedure.
