Steering: Testing and Inspection

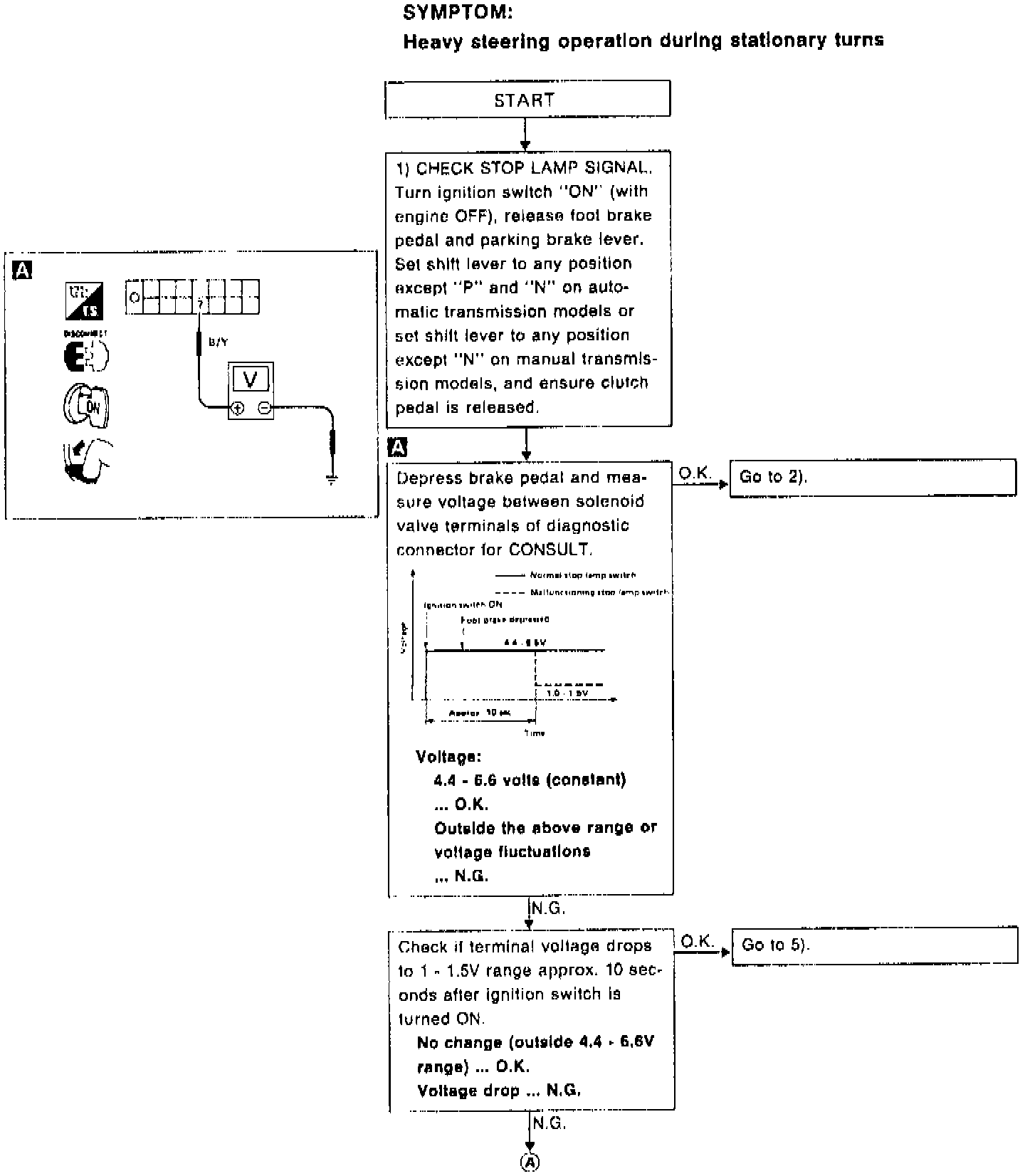

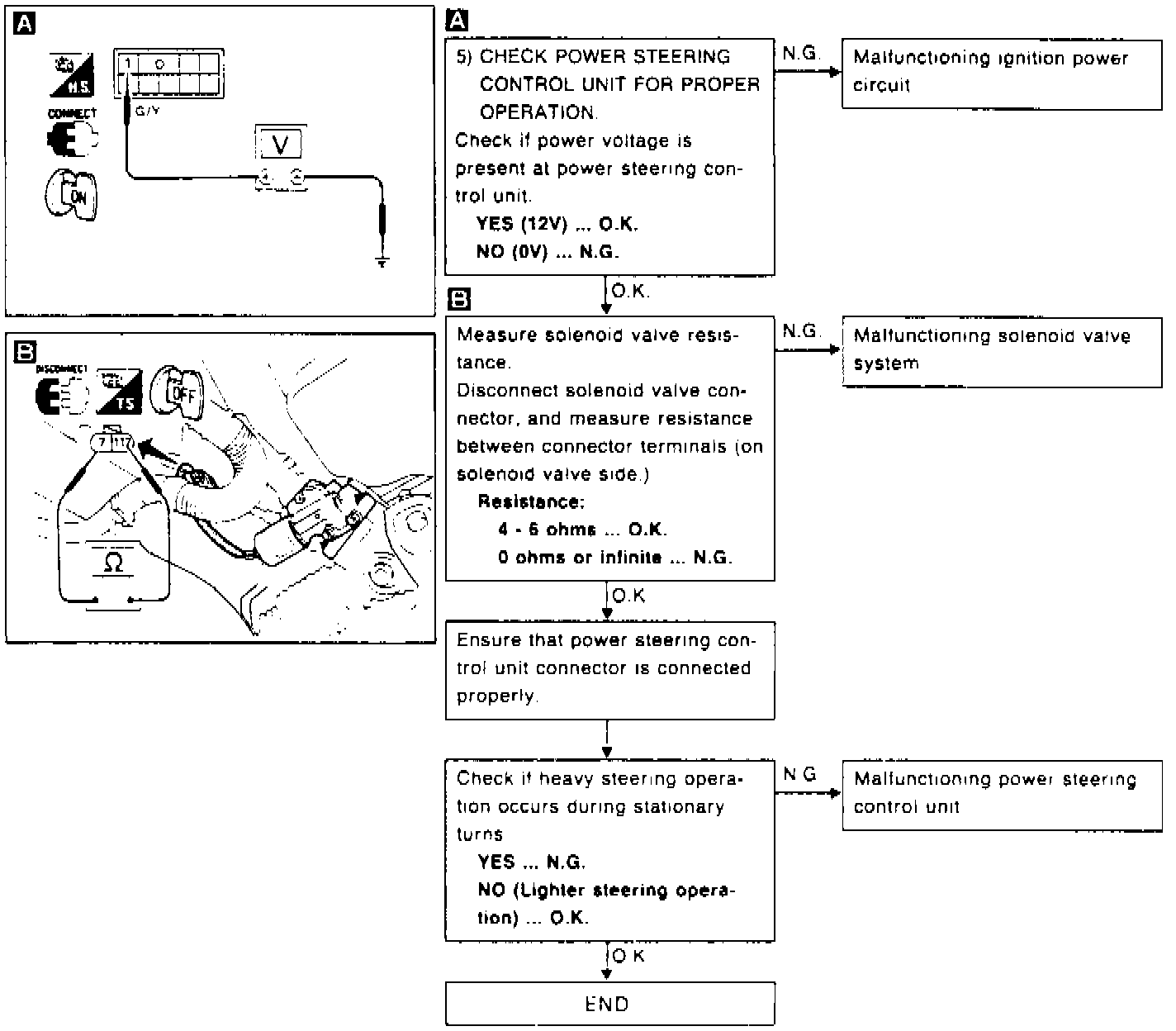

Fig. 2 Twin Orifice Steering System Diagnosis (Part 1 Of 10):

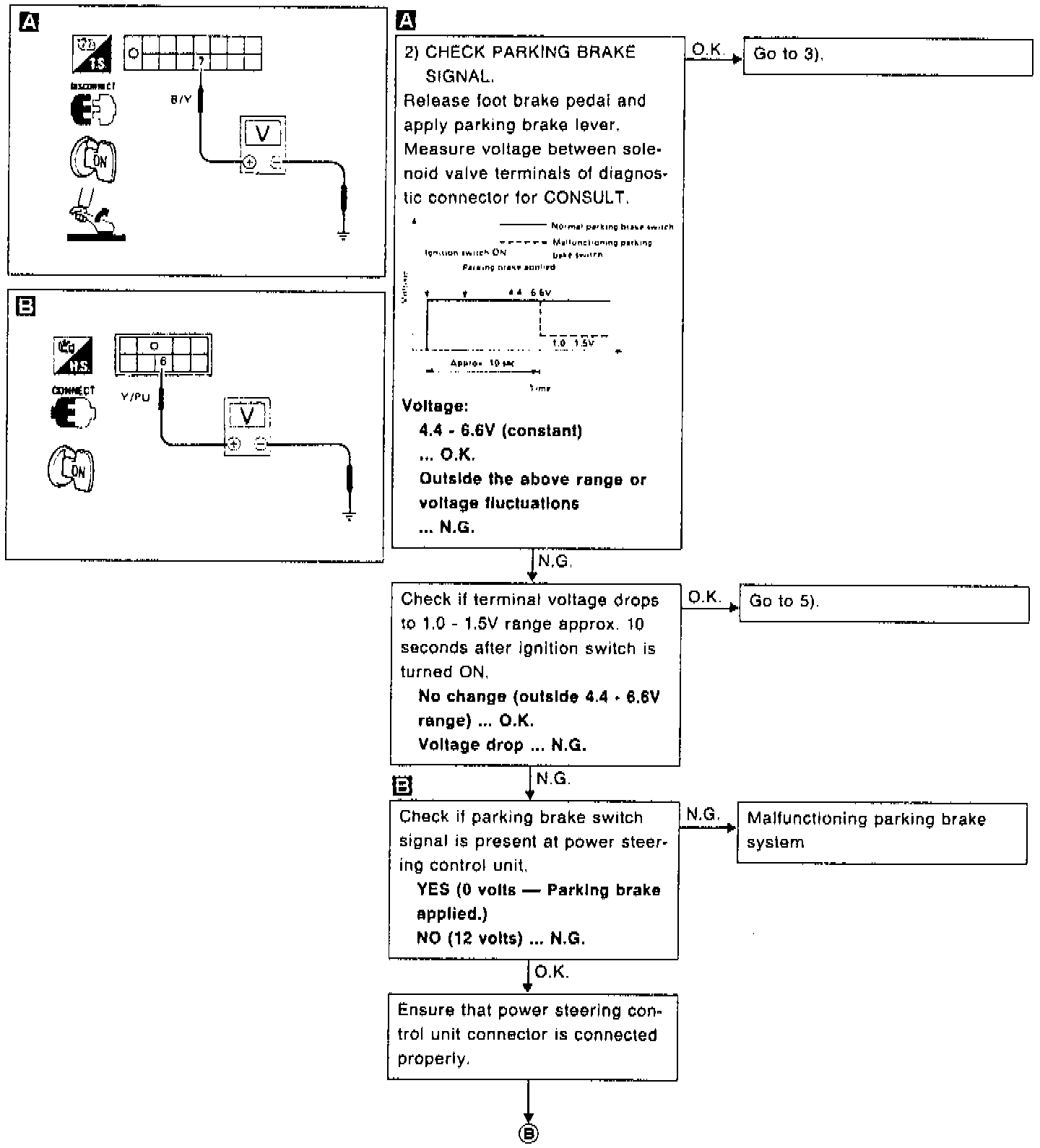

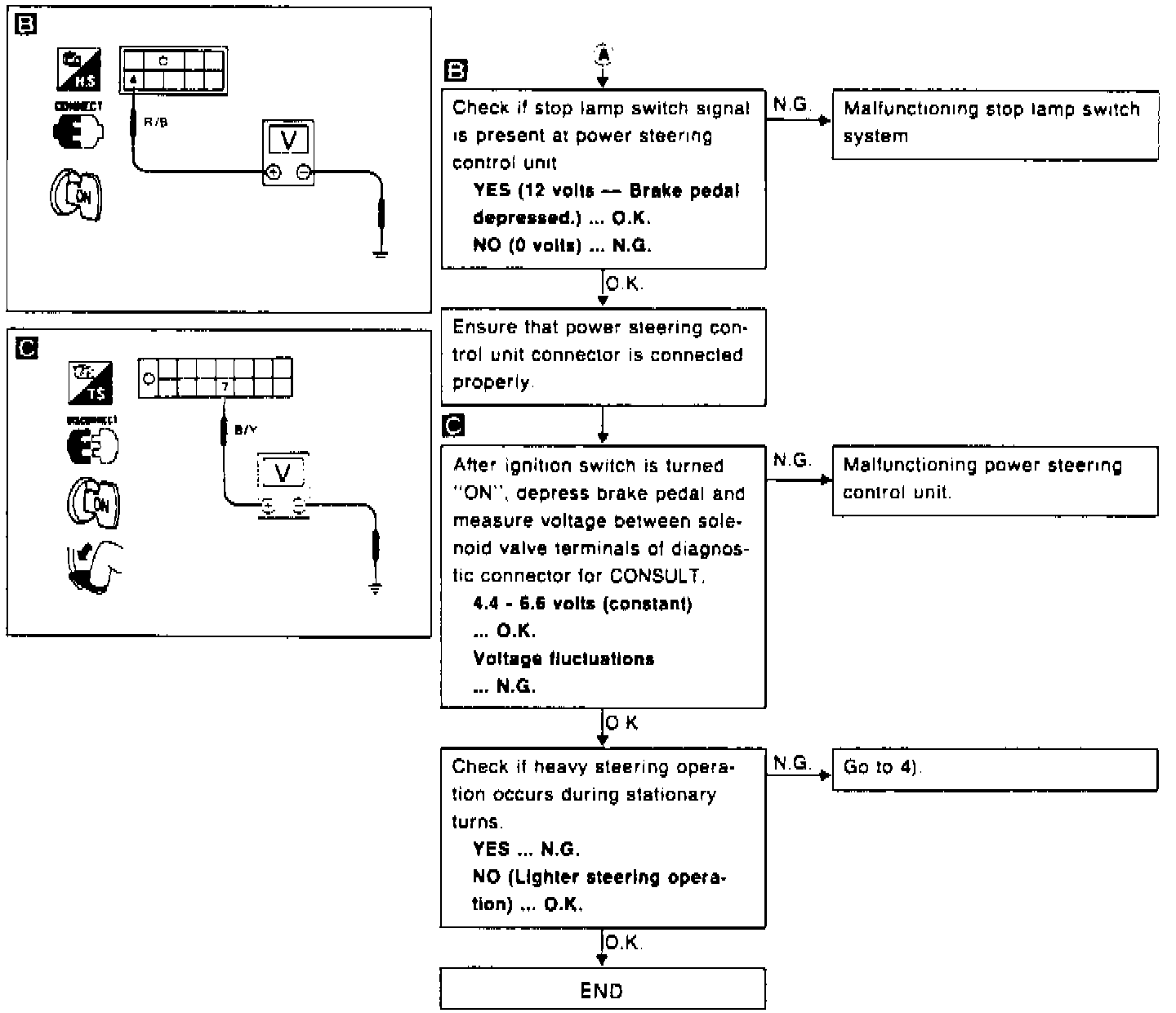

Fig. 2 Twin Orifice Steering System Diagnosis (Part 2 Of 10):

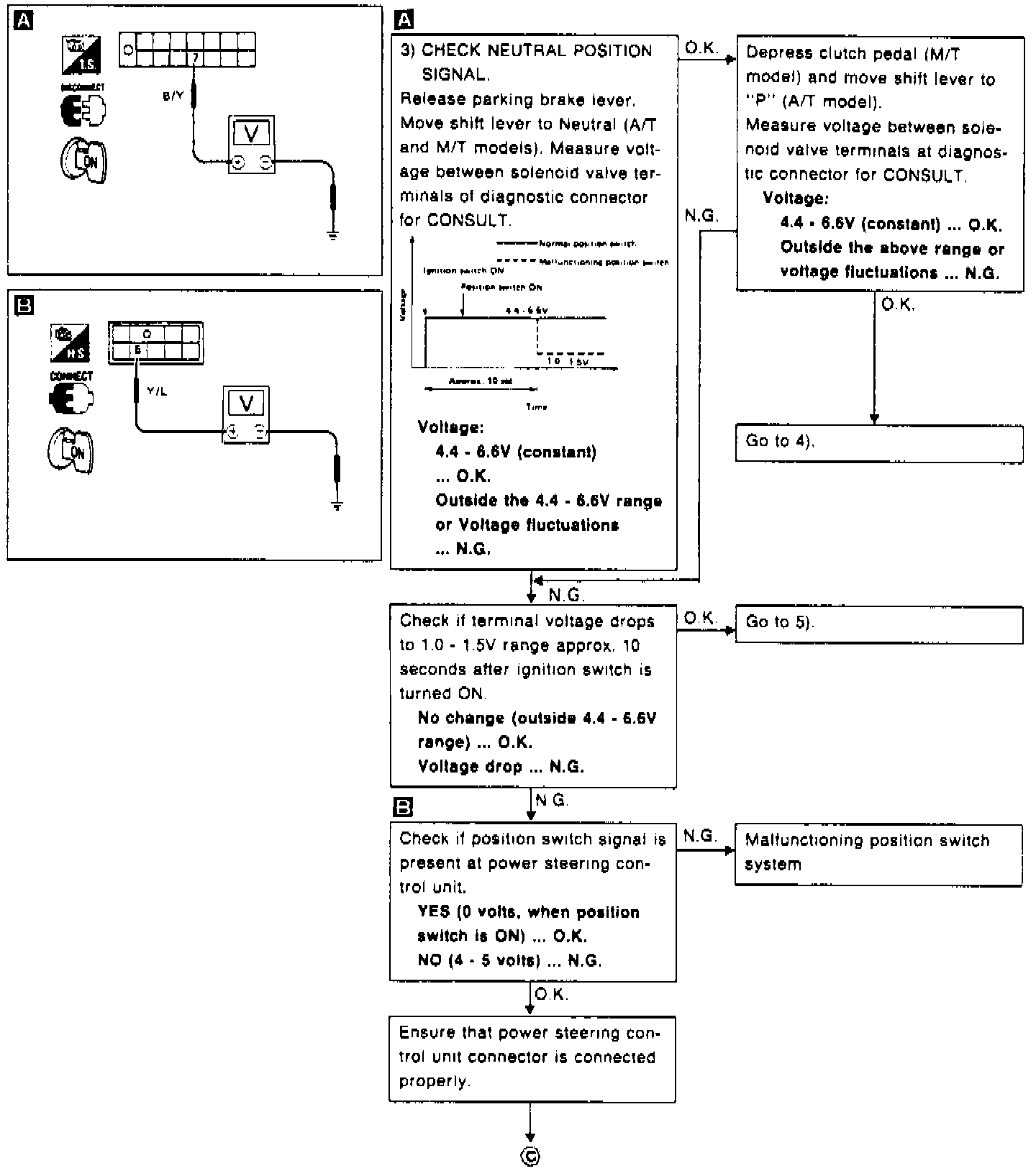

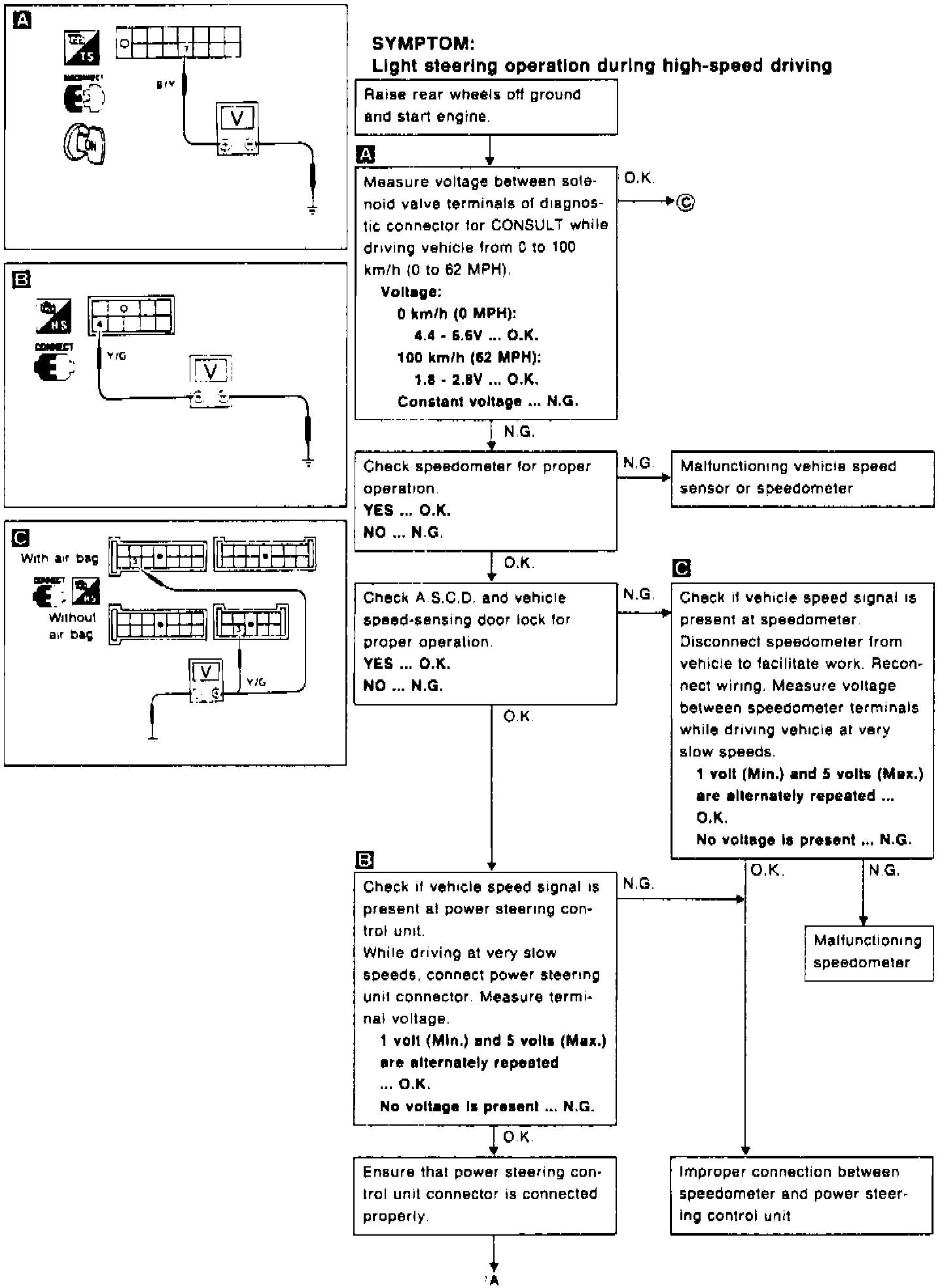

Fig. 2 Twin Orifice Steering System Diagnosis (Part 3 Of 10):

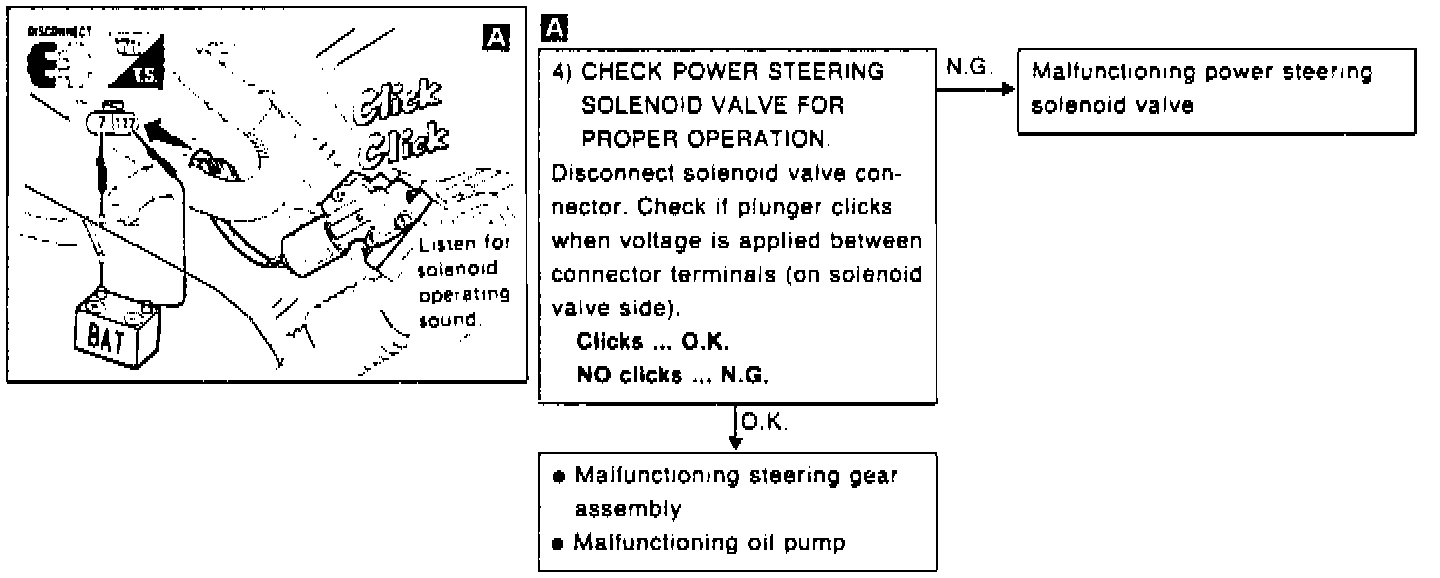

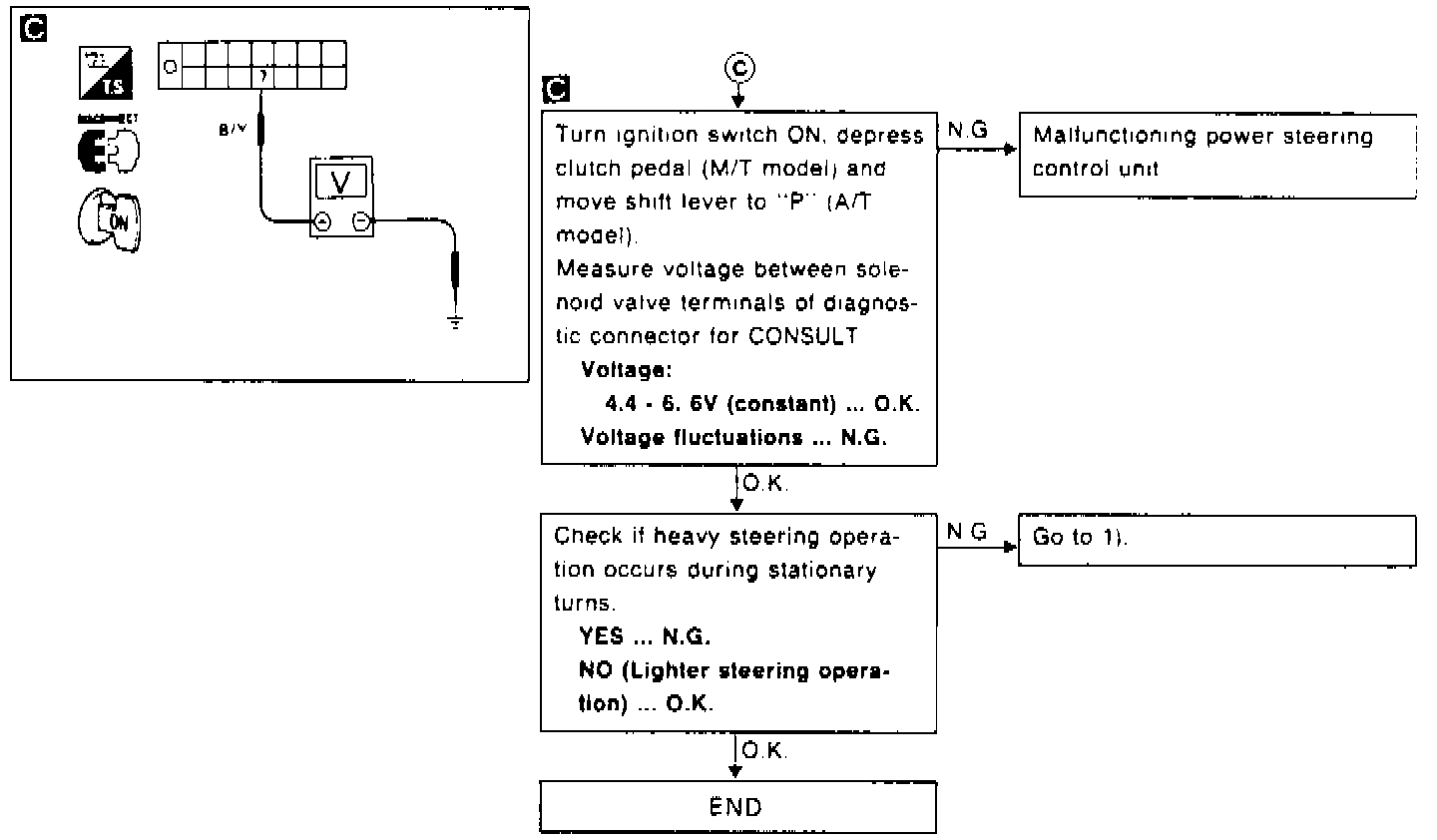

Fig. 2 Twin Orifice Steering System Diagnosis (Part 4 Of 10):

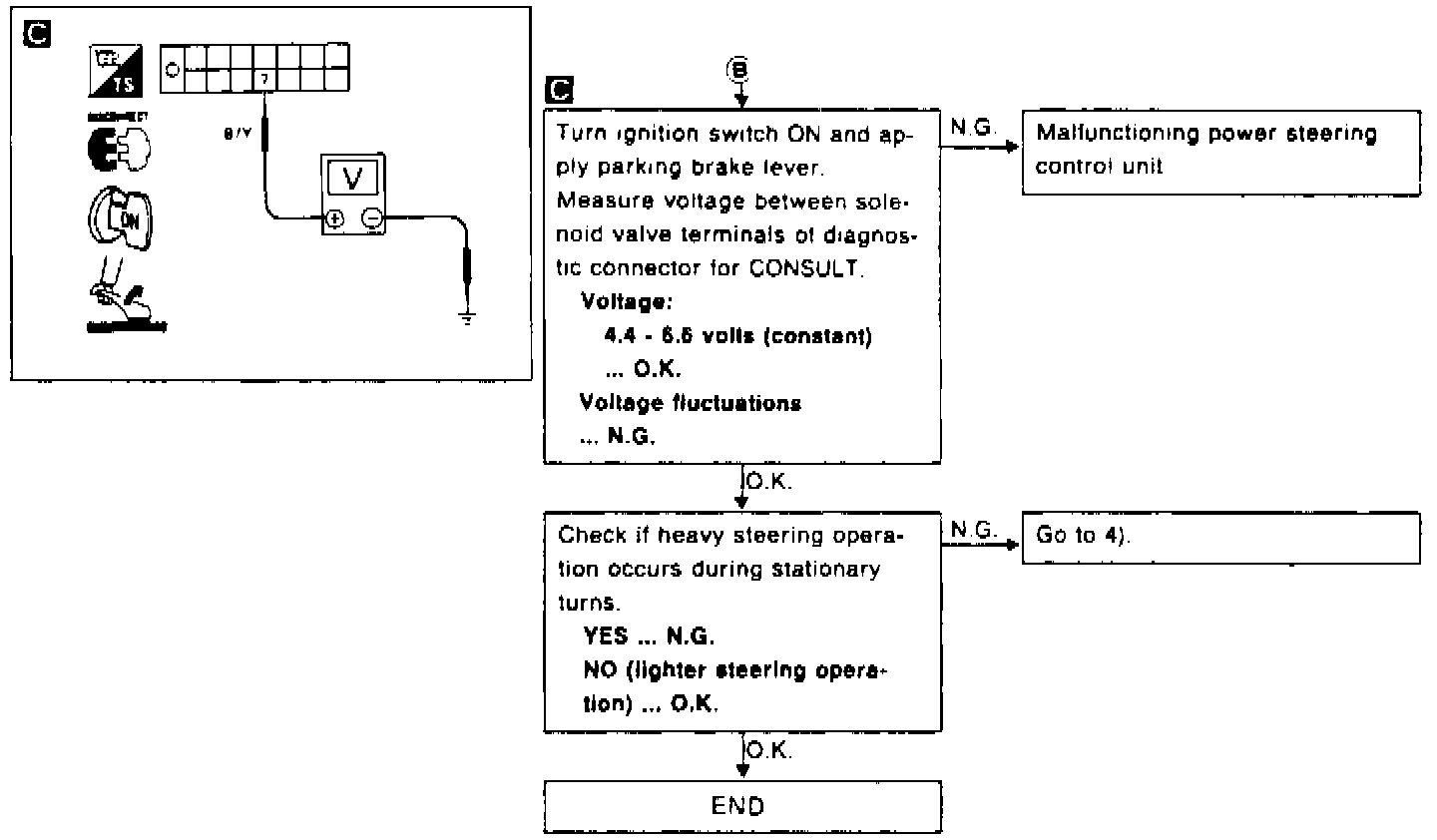

Fig. 2 Twin Orifice Steering System Diagnosis (Part 5 Of 10):

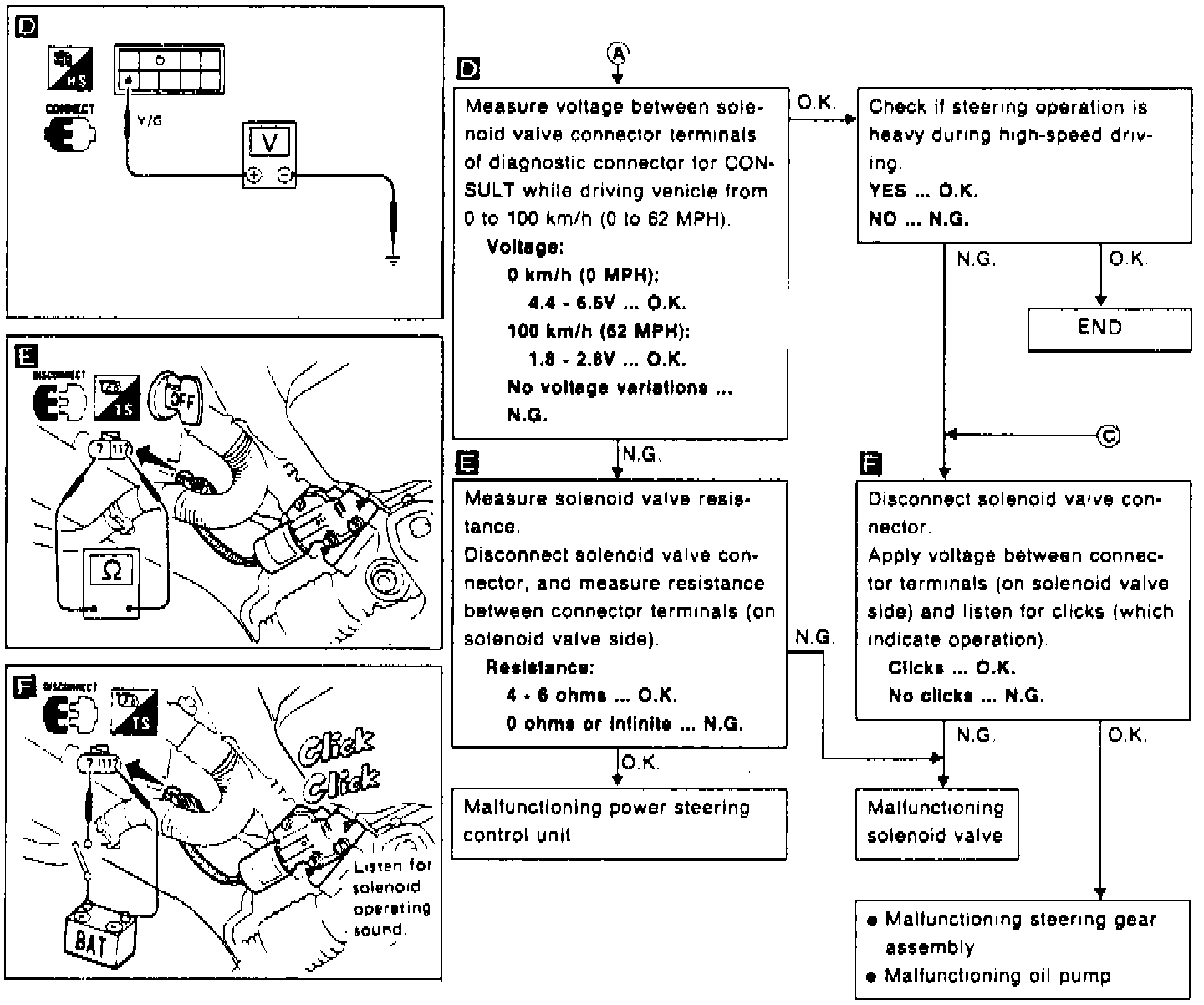

Fig. 2 Twin Orifice Steering System Diagnosis (Part 6 Of 10):

Fig. 2 Twin Orifice Steering System Diagnosis (Part 7 Of 10):

Fig. 2 Twin Orifice Steering System Diagnosis (Part 8 Of 10):

Fig. 2 Twin Orifice Steering System Diagnosis (Part 9 Of 10):

Fig. 2 Twin Orifice Steering System Diagnosis (Part 10 Of 10):

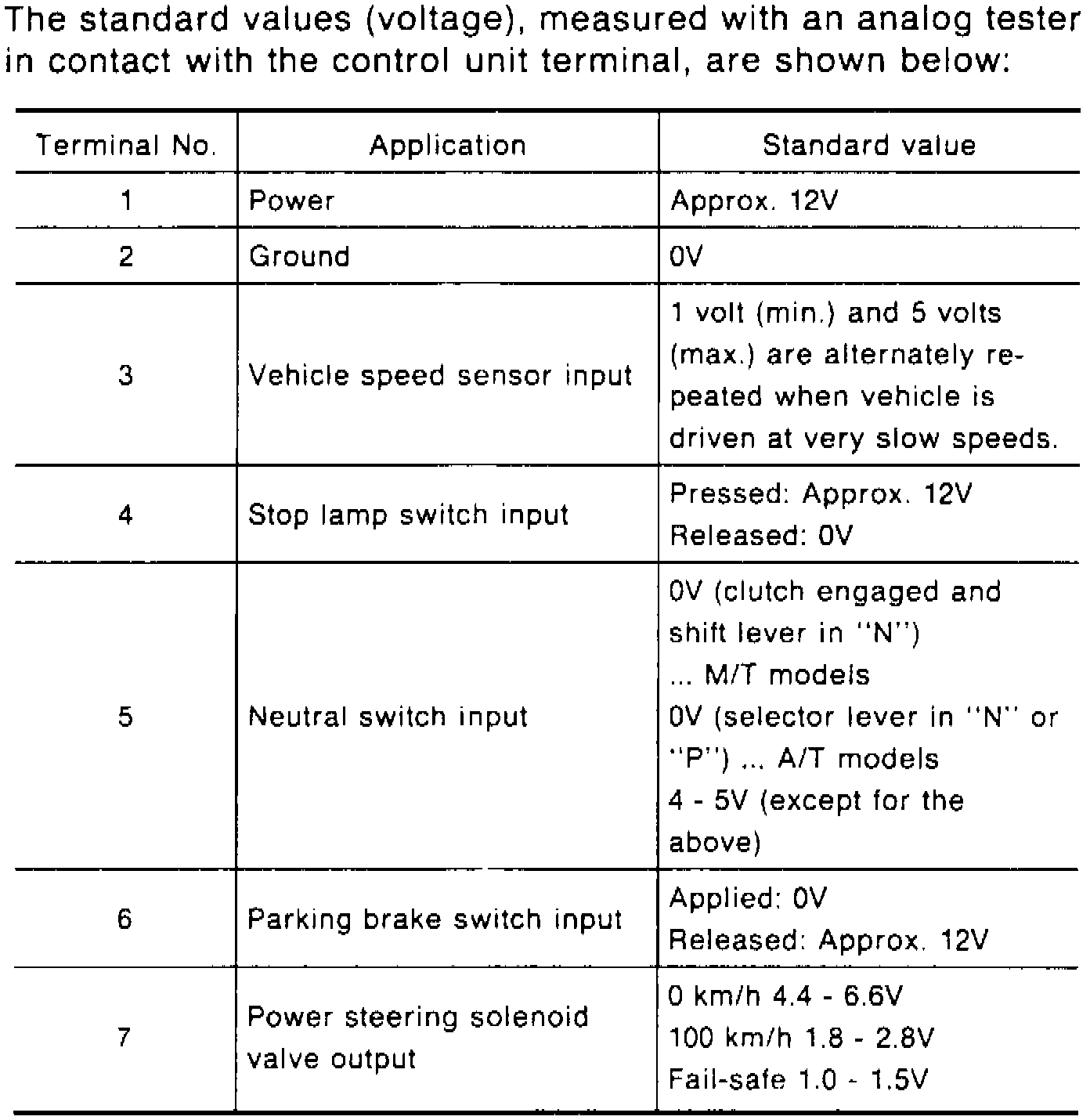

Fig. 3 Control Unit Inspection Table:

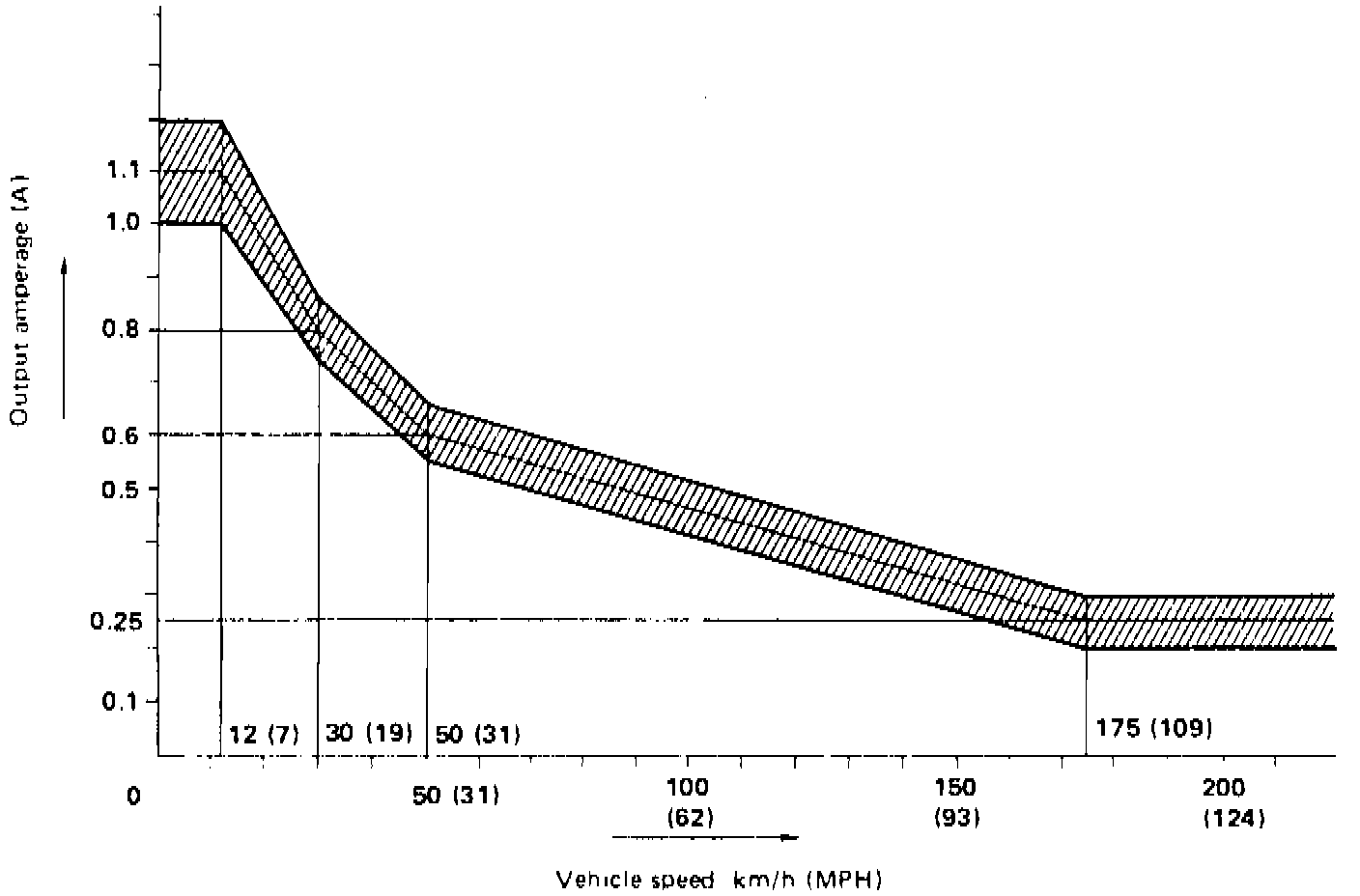

Fig. 4 Controller Performance:

When diagnosing the twin orifice power steering system refer to Figs. 2 through 4 for diagnostic procedures.
