Battery - Charging/Replacement Procedure

CLASSIFICATION:
EL94-001

REFERENCE:
NTB94-009

DATE:
MARCH 4, 1994

BATTERY CHARGING/REPLACEMENT PROCEDURE

APPLIED VEHICLE(S)
All

SERVICE INFORMATION

As the demands on the vehicle battery increase with the complexity of electrical systems, there is a need for a usable, consistent and repeatable procedure for determining the need for charging or replacement of vehicle batteries.

It is the Dealer's responsibility to determine the condition/chargeability of a battery, prior to replacement of the battery.

SERVICE PROCEDURE

See the following illustrations for BATTERY CHARGING/REPLACEMENT PROCEDURE.

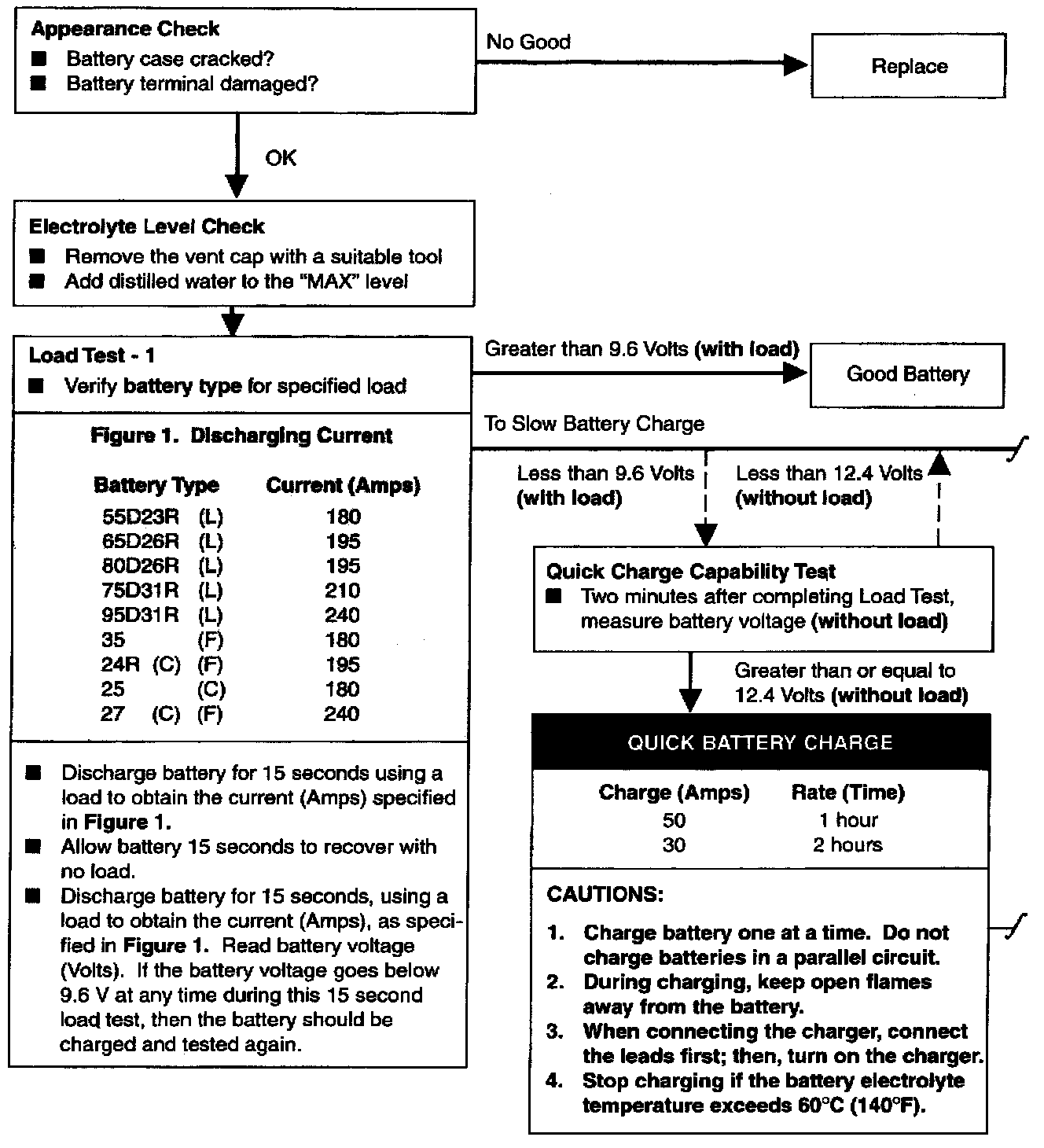

Battery Charging/Replacement Procedure





Quick Battery Charge

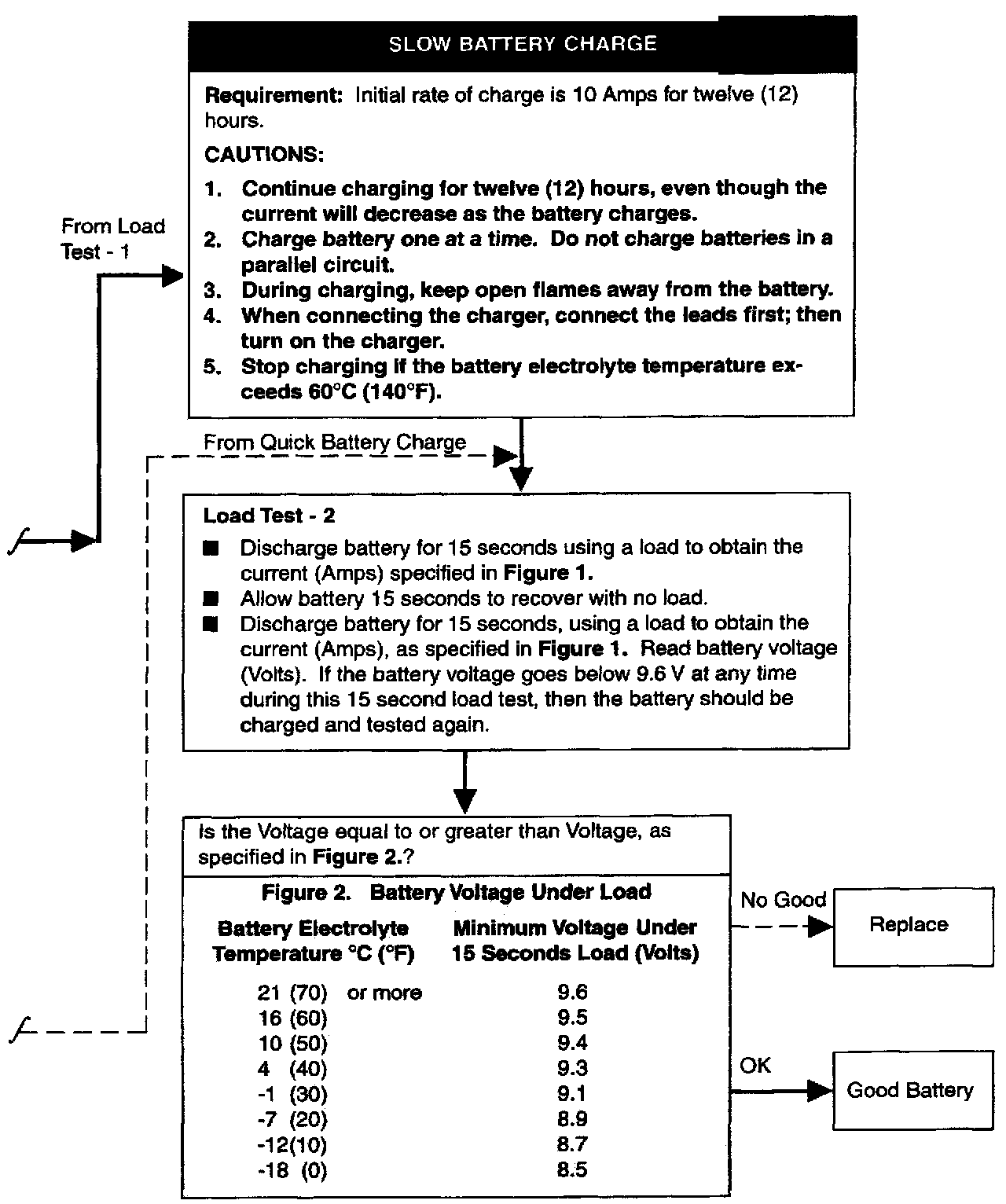

Slow Battery Charge

CLAIMS INFORMATION

Please reference the Nissan "Assurance Products Resource Manual" for battery claim procedures.
