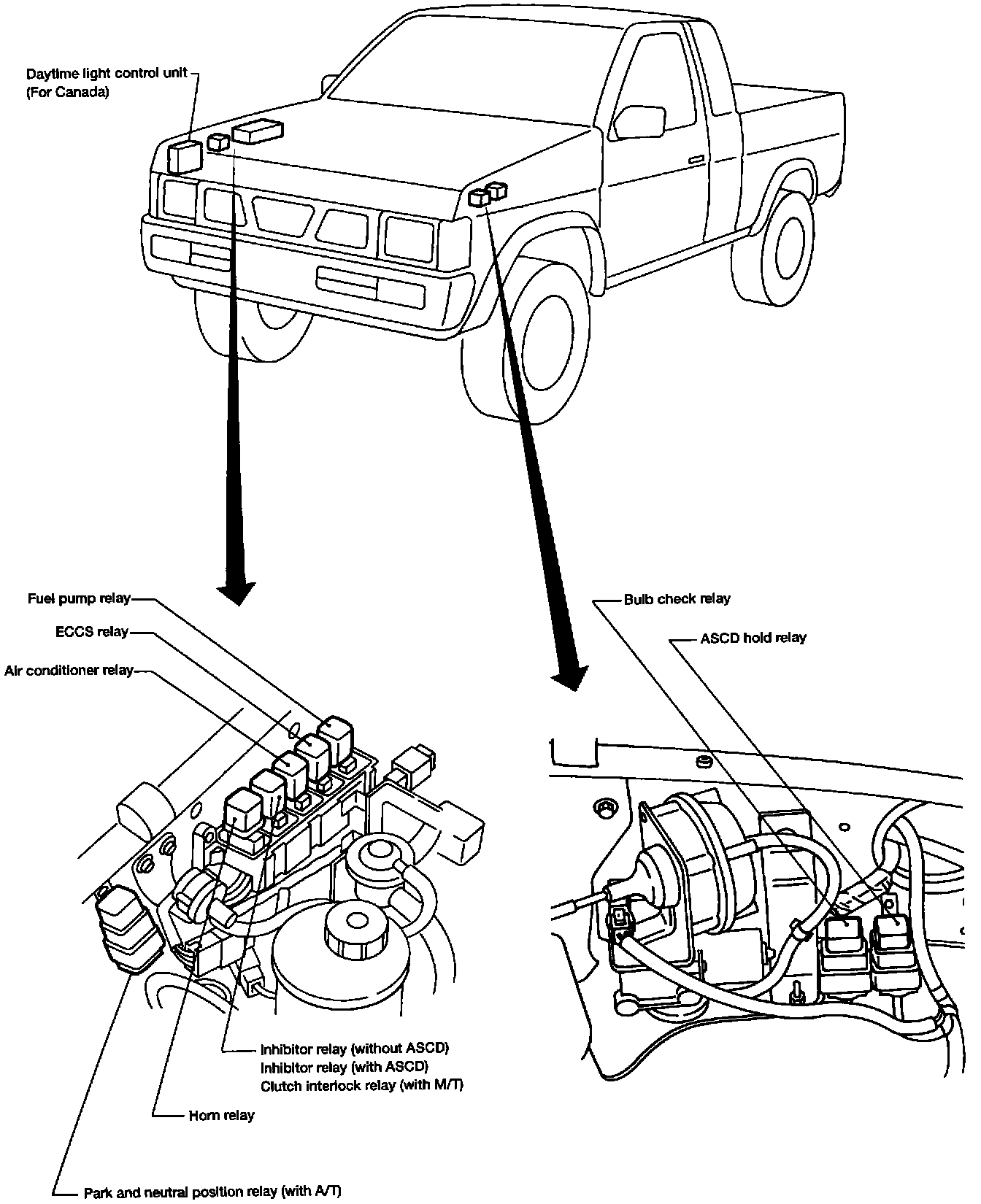

Bulb Check Relay Location

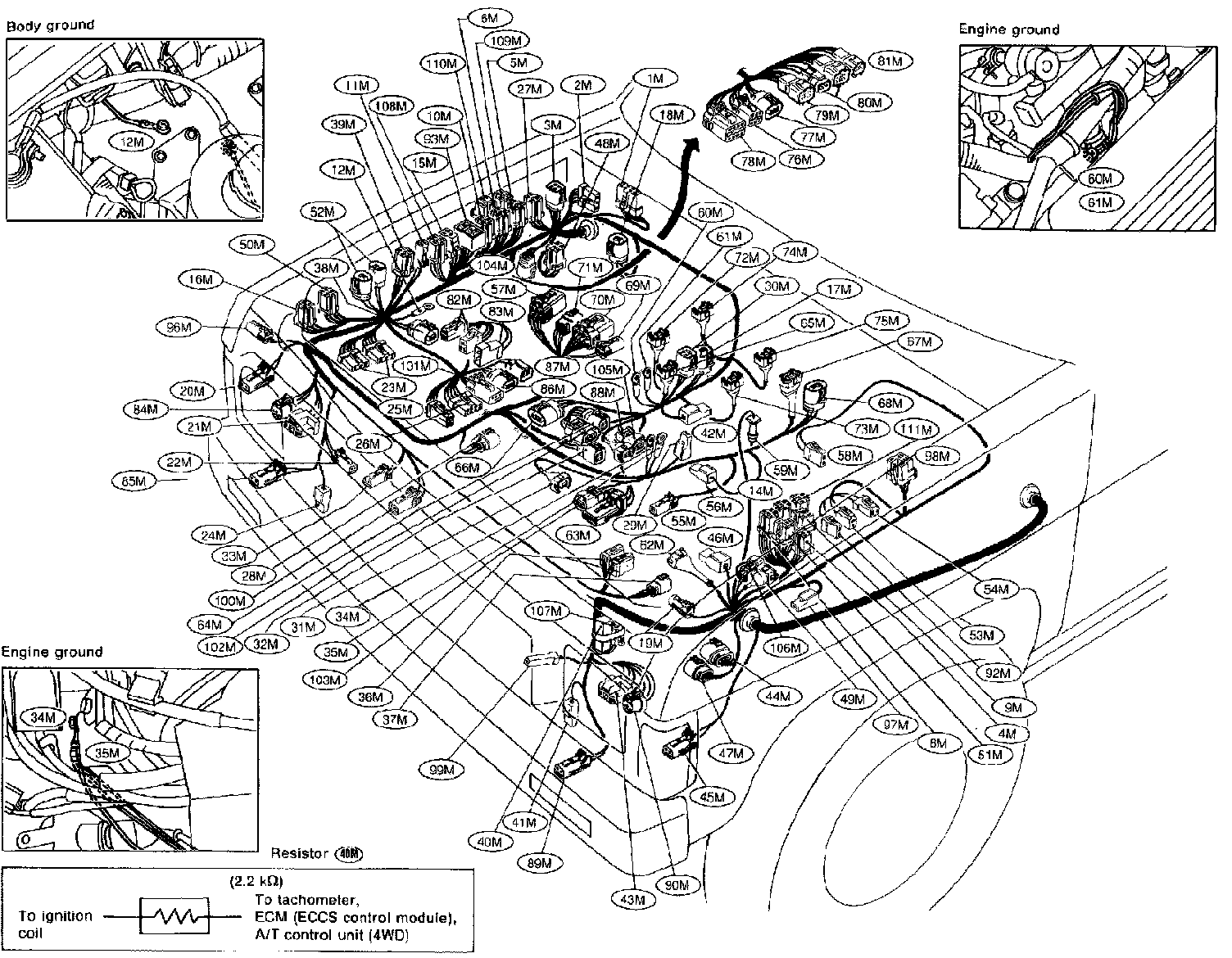

ENGINE COMPARTMENT

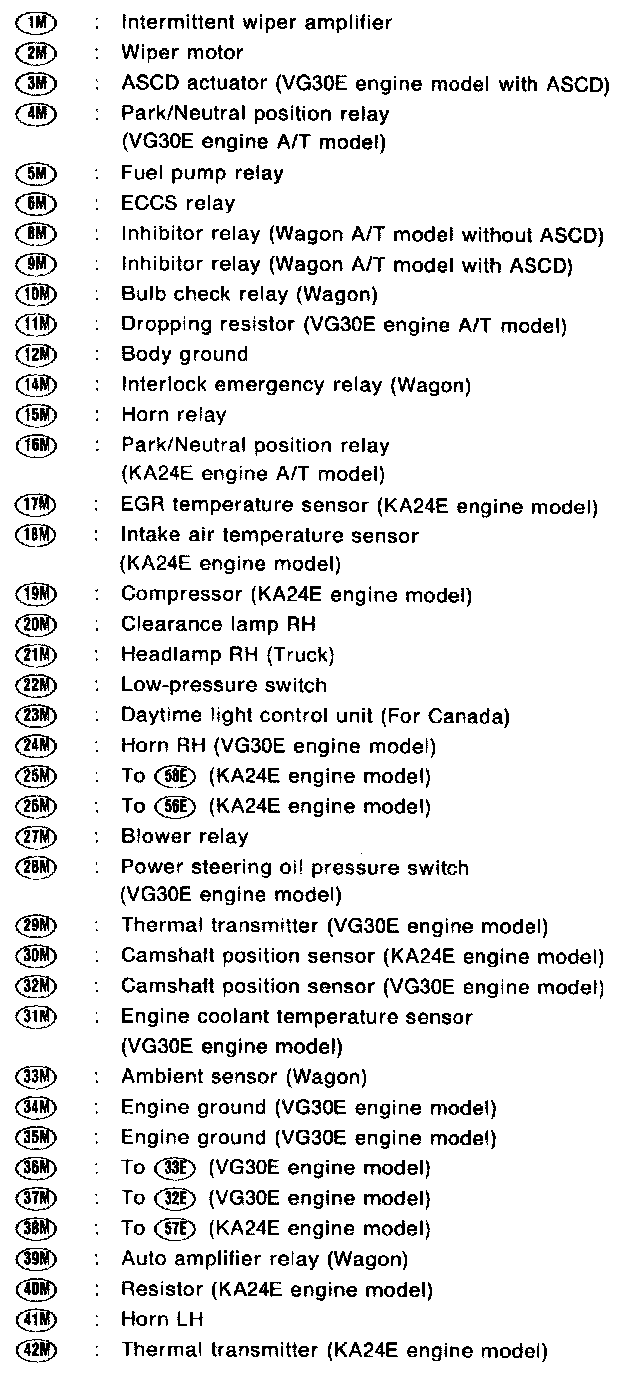

BULB CHECK RELAY (WAGON) CONNECTOR 10M











Engine Compartment:

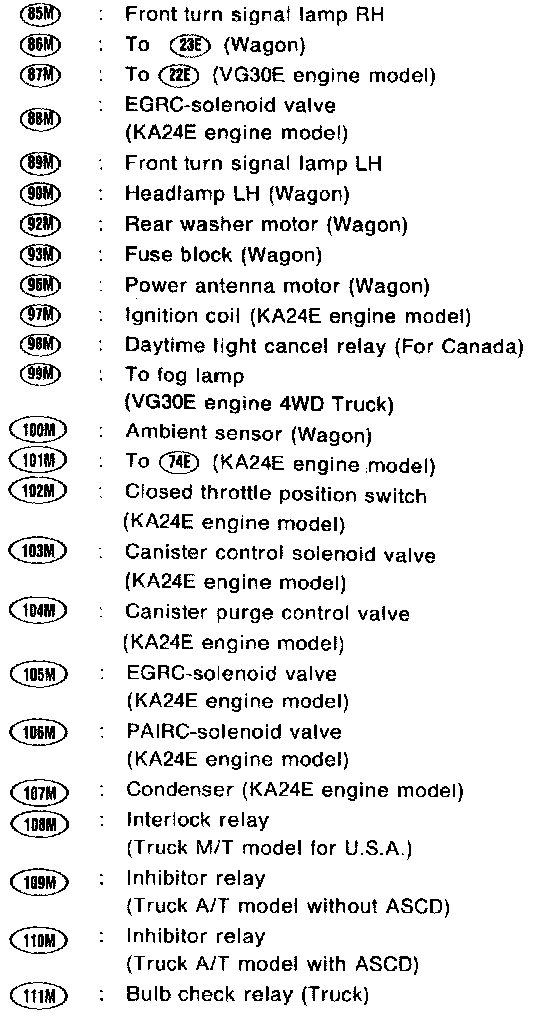

BULB CHECK RELAY (TRUCK) CONNECTOR 111M
