Nissan-Datsun
>>
1994
>>
D21 Hardbody 2WD V6-2960cc 3.0L SOHC MFI (VG30E)
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Charging System
>>
Locations
>>
Alternator/Bulb Check Diode and Connector 348M
Alternator/Bulb Check Diode and Connector 348M

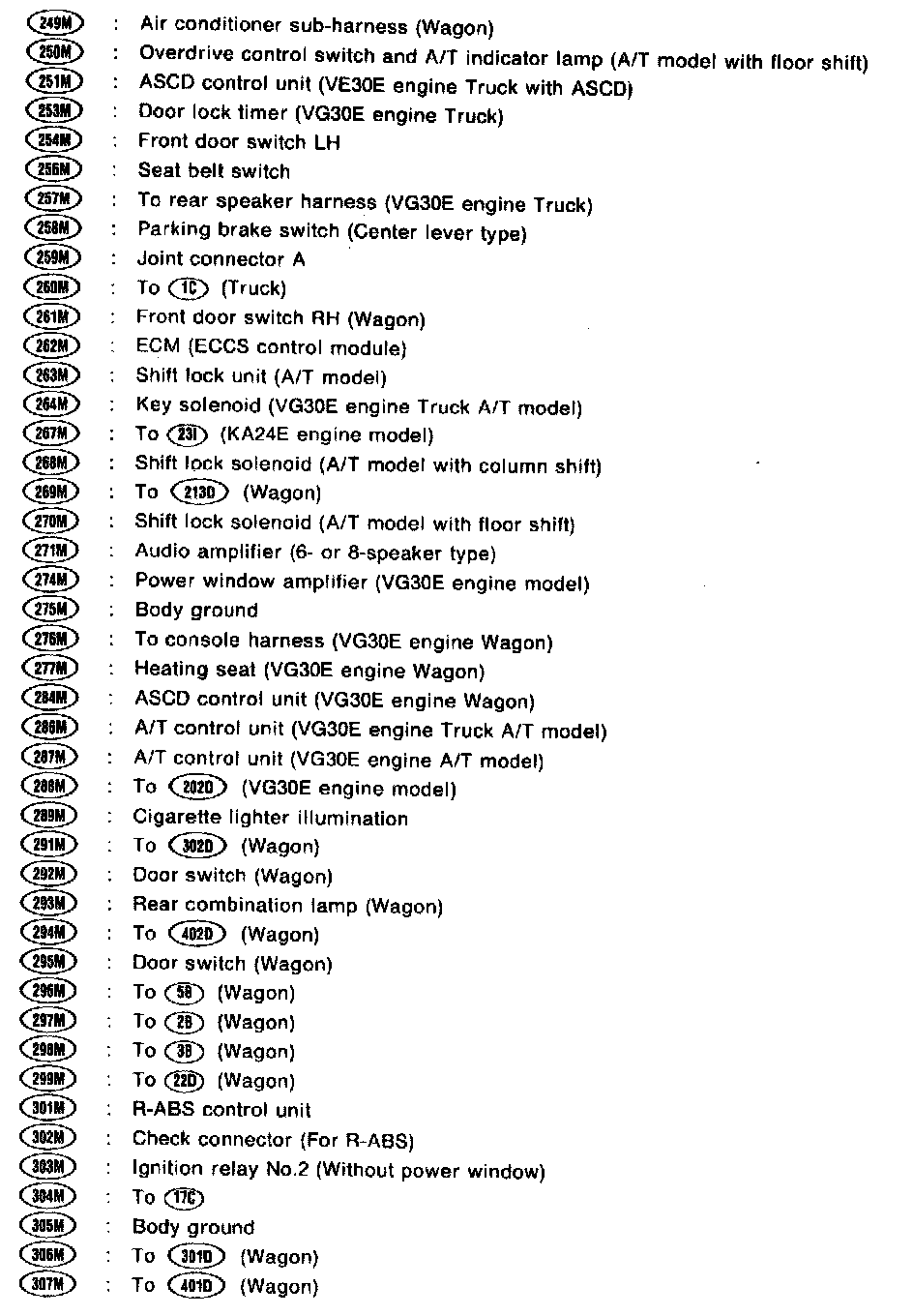

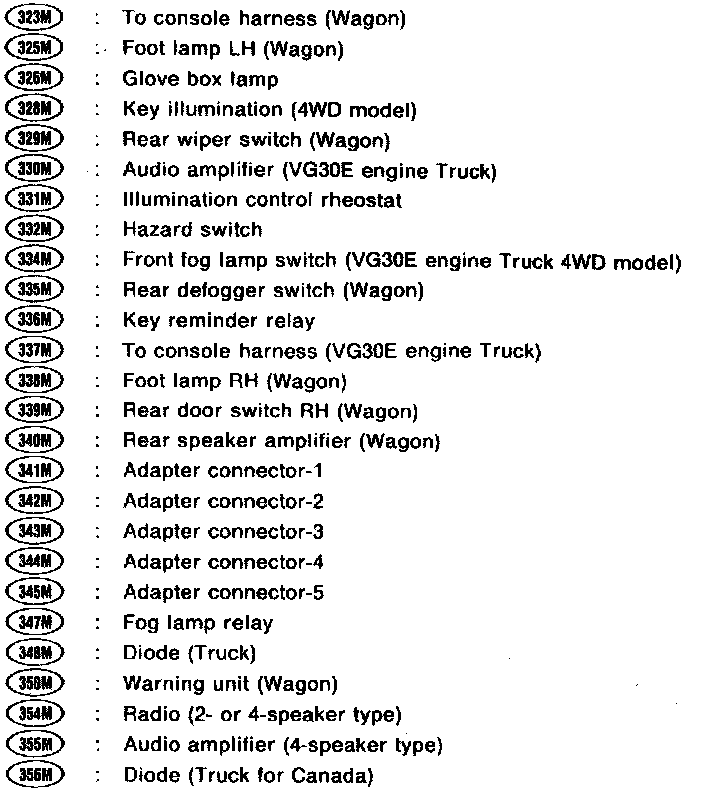

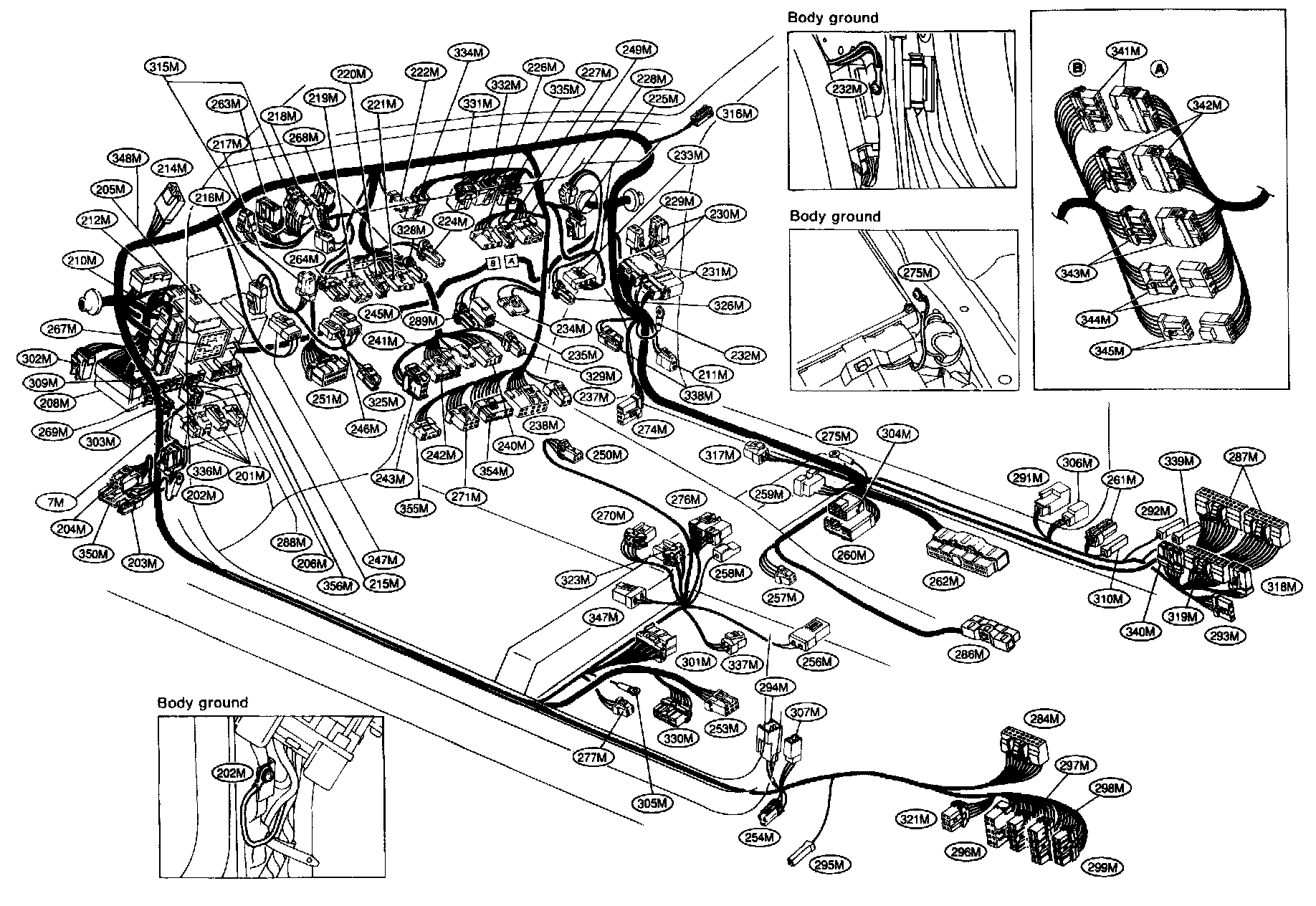

PASSENGER COMPARTMENT

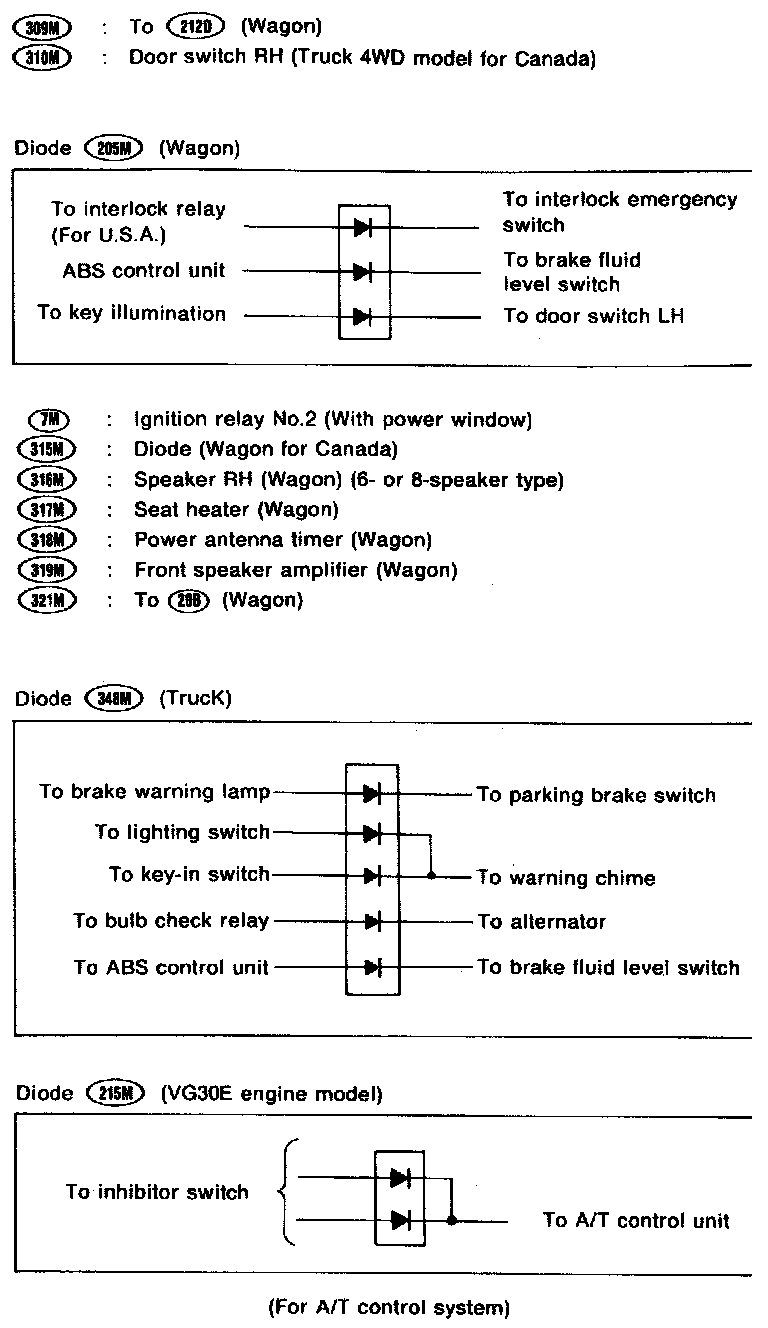

ALTERNATOR/BULB CHECK DIODE 348M
