Check Chart 3-Cruise Test
Cruise test
^ Check all items listed in Parts 1 through 3.
^ Throttle position can be controlled by voltage across terminals [11] and [15] of A/T control unit.

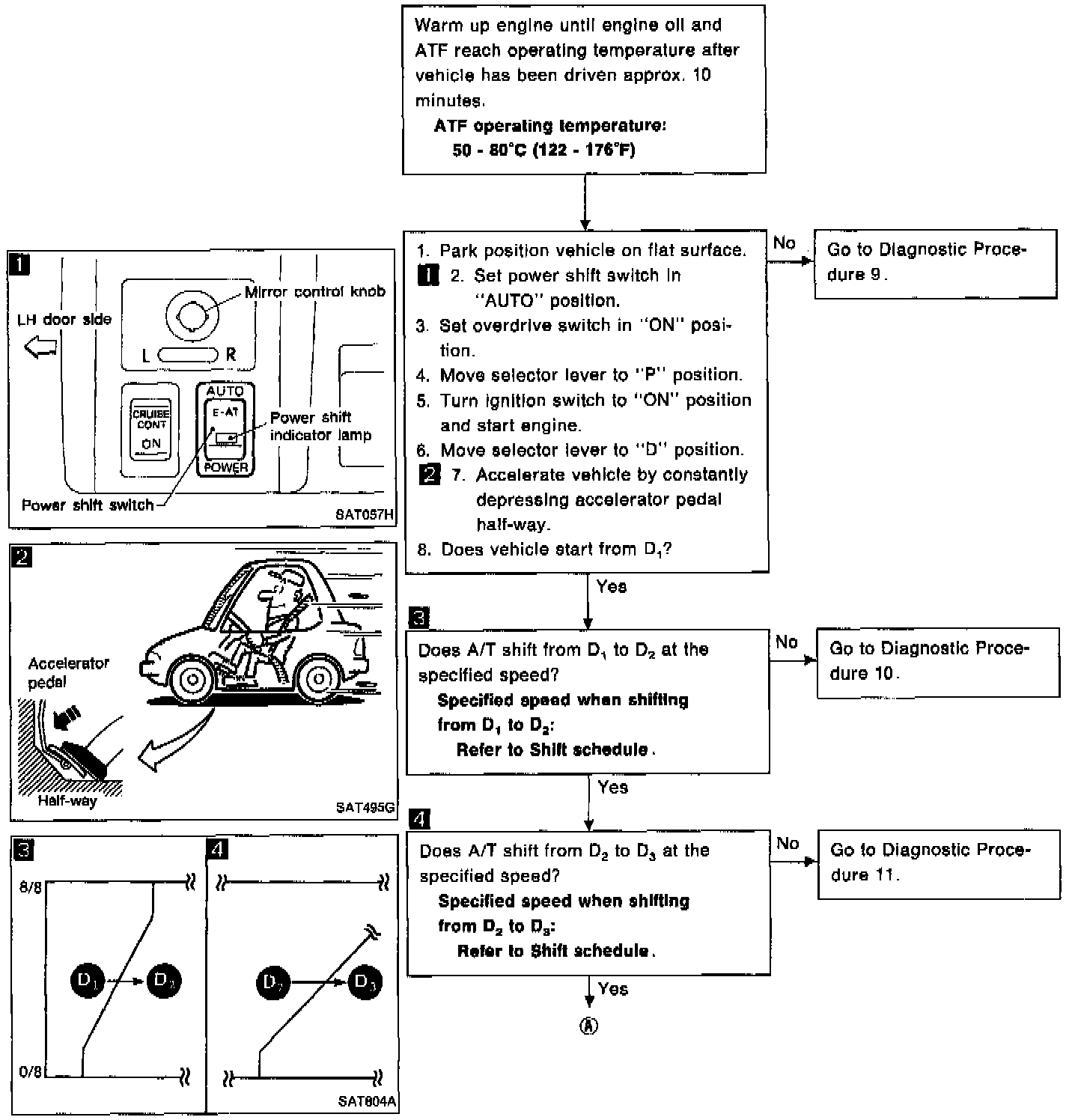

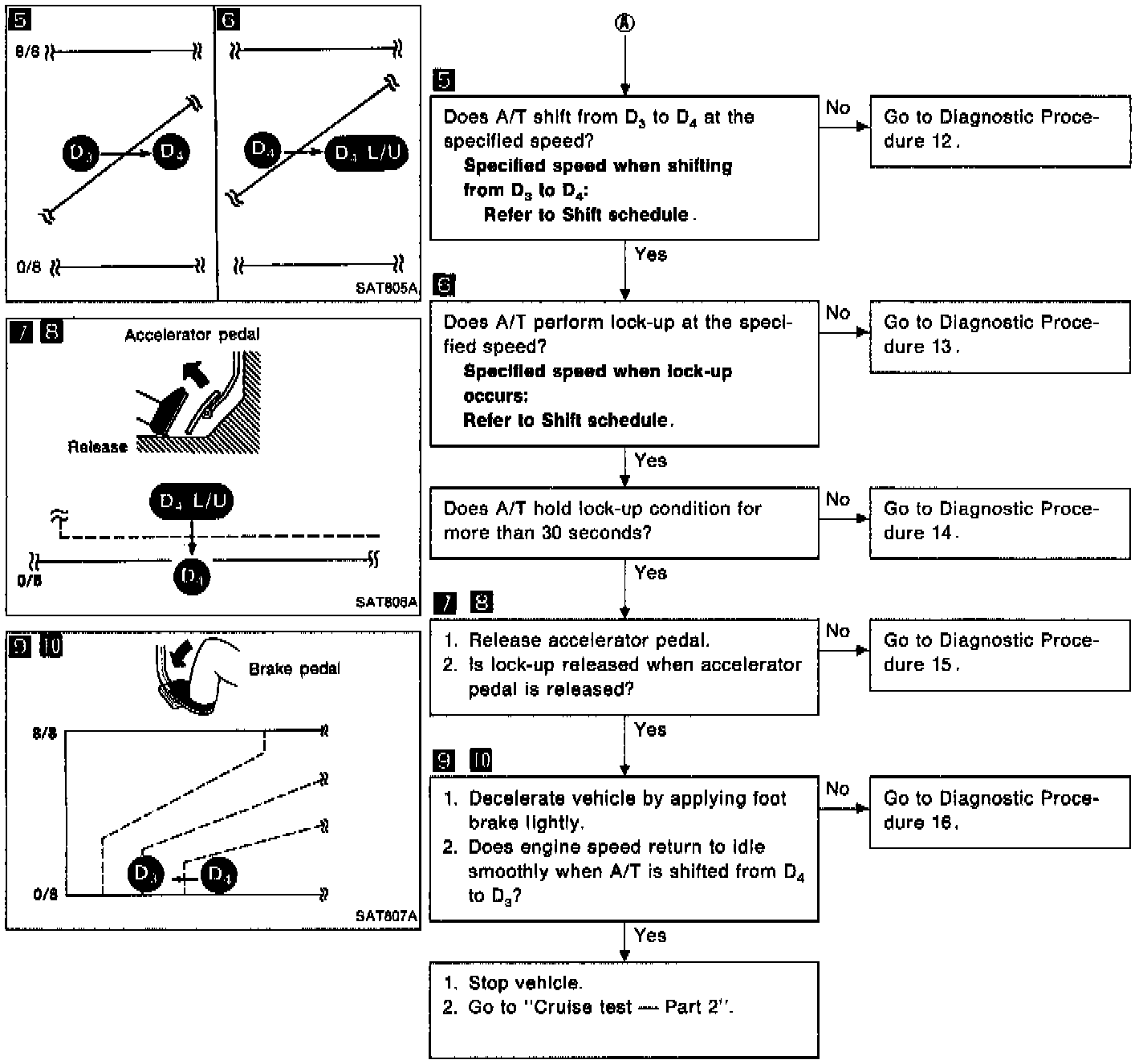

Cruise test - Part 1

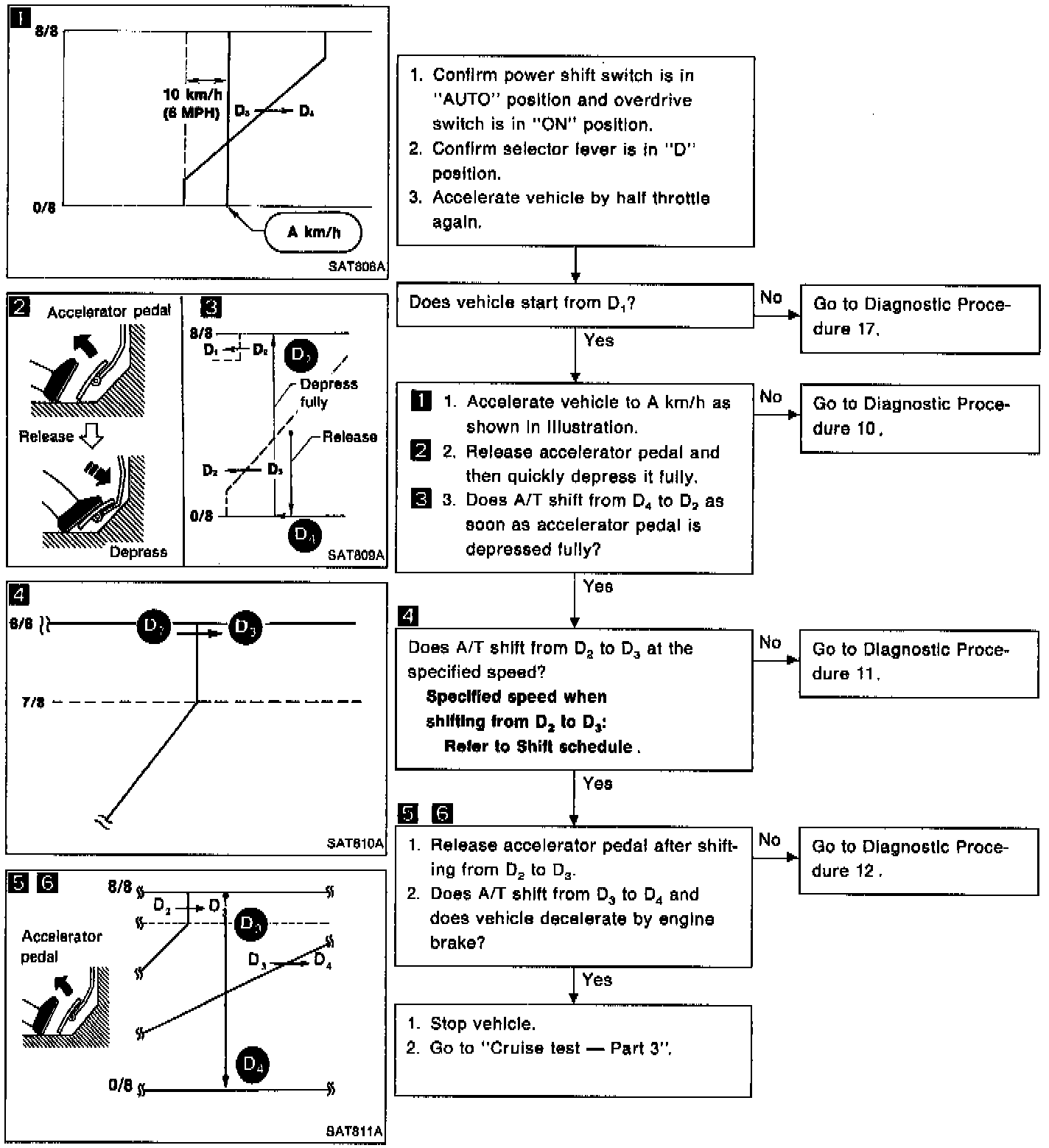

Cruise test - Part 2

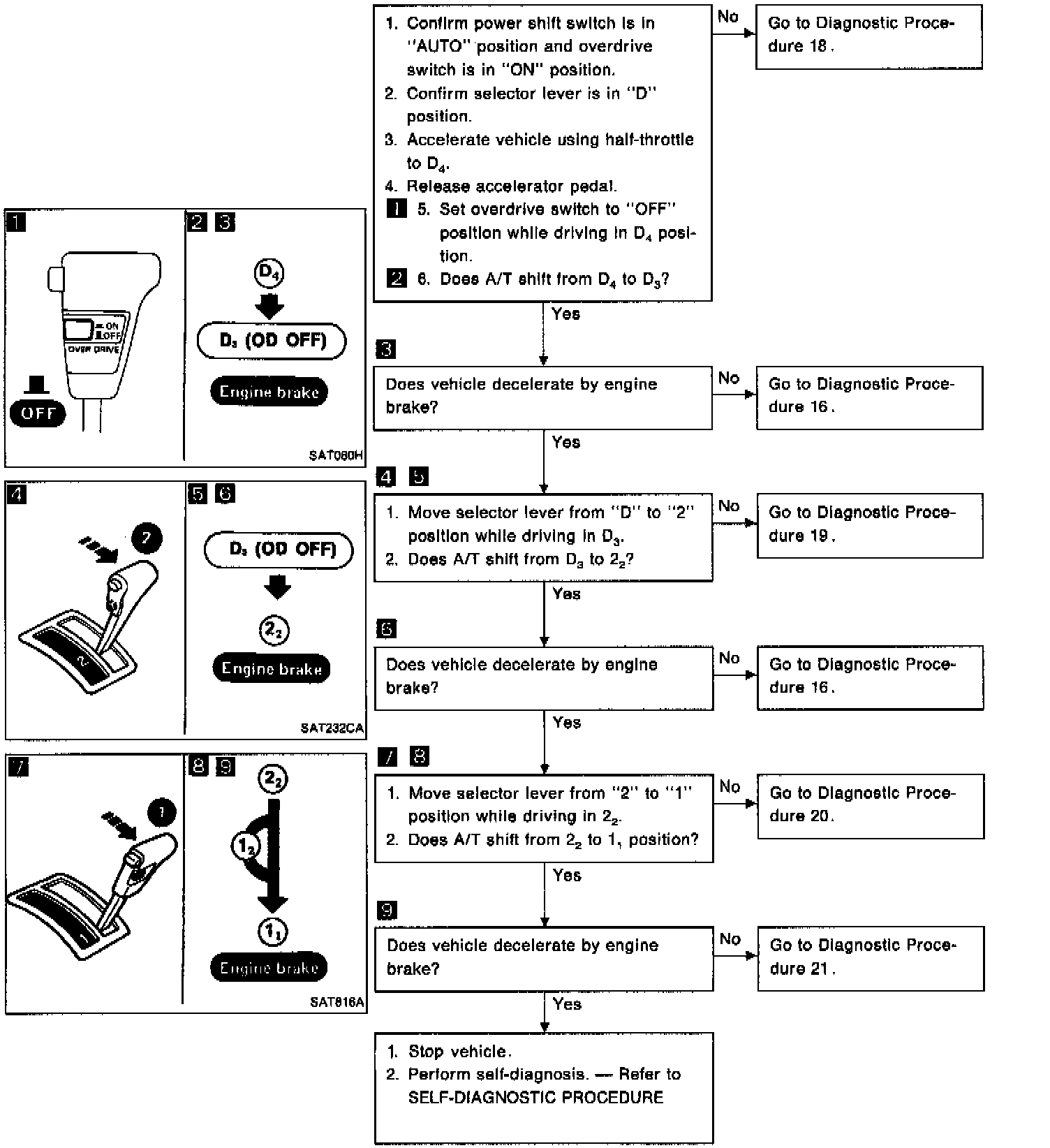

Cruise test - Part 3
Cruise test
^ Check all items listed in Parts 1 through 3.
^ Throttle position can be controlled by voltage across terminals [11] and [15] of A/T control unit.
Cruise test - Part 1
Cruise test - Part 2
Cruise test - Part 3
