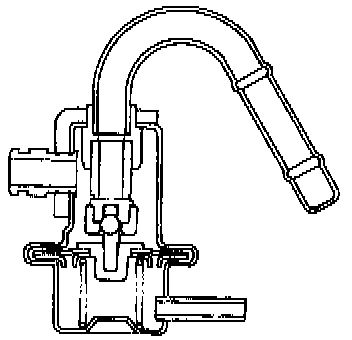

Fuel Pressure Regulator: Description and Operation

DESCRIPTION
The pressure regulator maintains the fuel pressure at approximately 294 kPa (43 psi). Since the injected fuel amount depends on injection pulse duration, it is necessary to maintain the pressure at the above value.
