Evaporative Emission Control Canister: Testing and Inspection

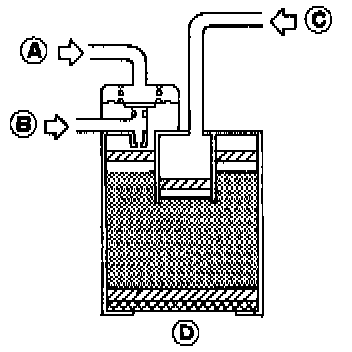

INSPECTION
1. Blow air in port [A] and ensure that there is no leakage.
2. Apply vacuum to port [A].
3. Cover port [D] with hand.
4. Blow air in port [C] and ensure free flow out of port [B].
