Idle Air Control Valve - Air Regulator Circuit

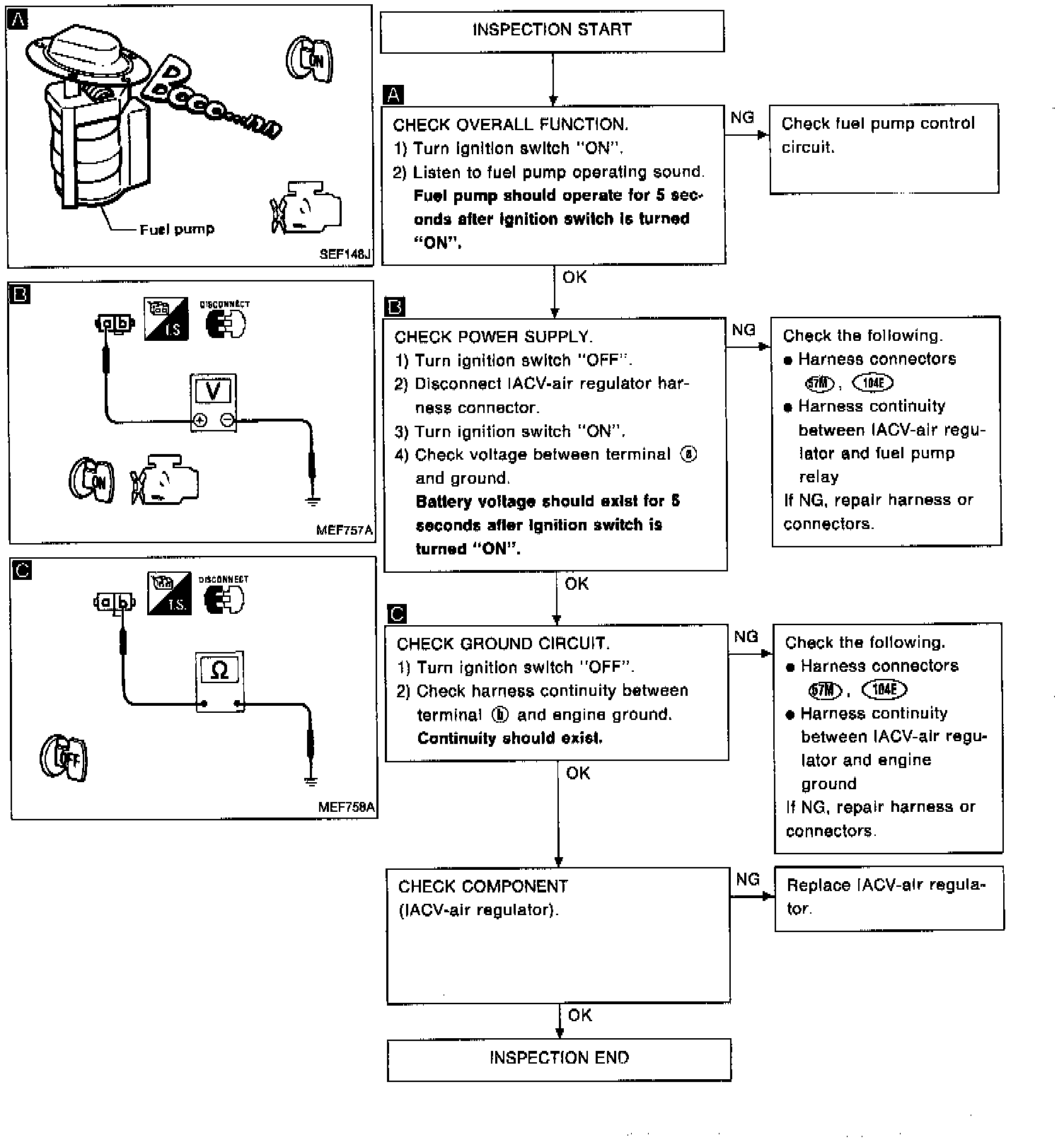

DIAGNOSTIC CHART

!�]-:

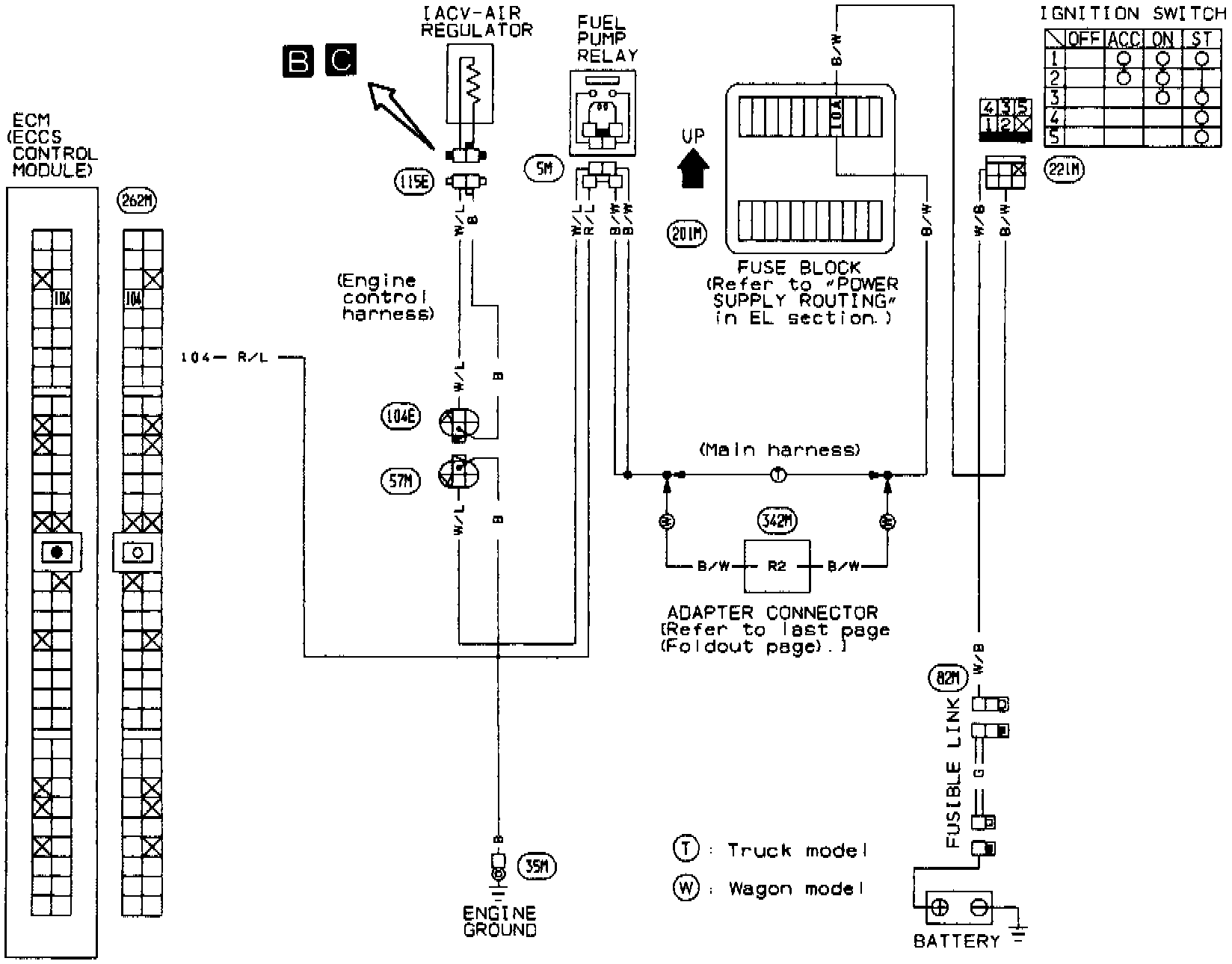

CIRCUIT DIAGRAM







HARNESS LAYOUT
