Auto A/C

Preliminary Check (Check 1 Manual A/C, Check 2 Auto A/C):

Preliminary Check 2 (Manual A/C):

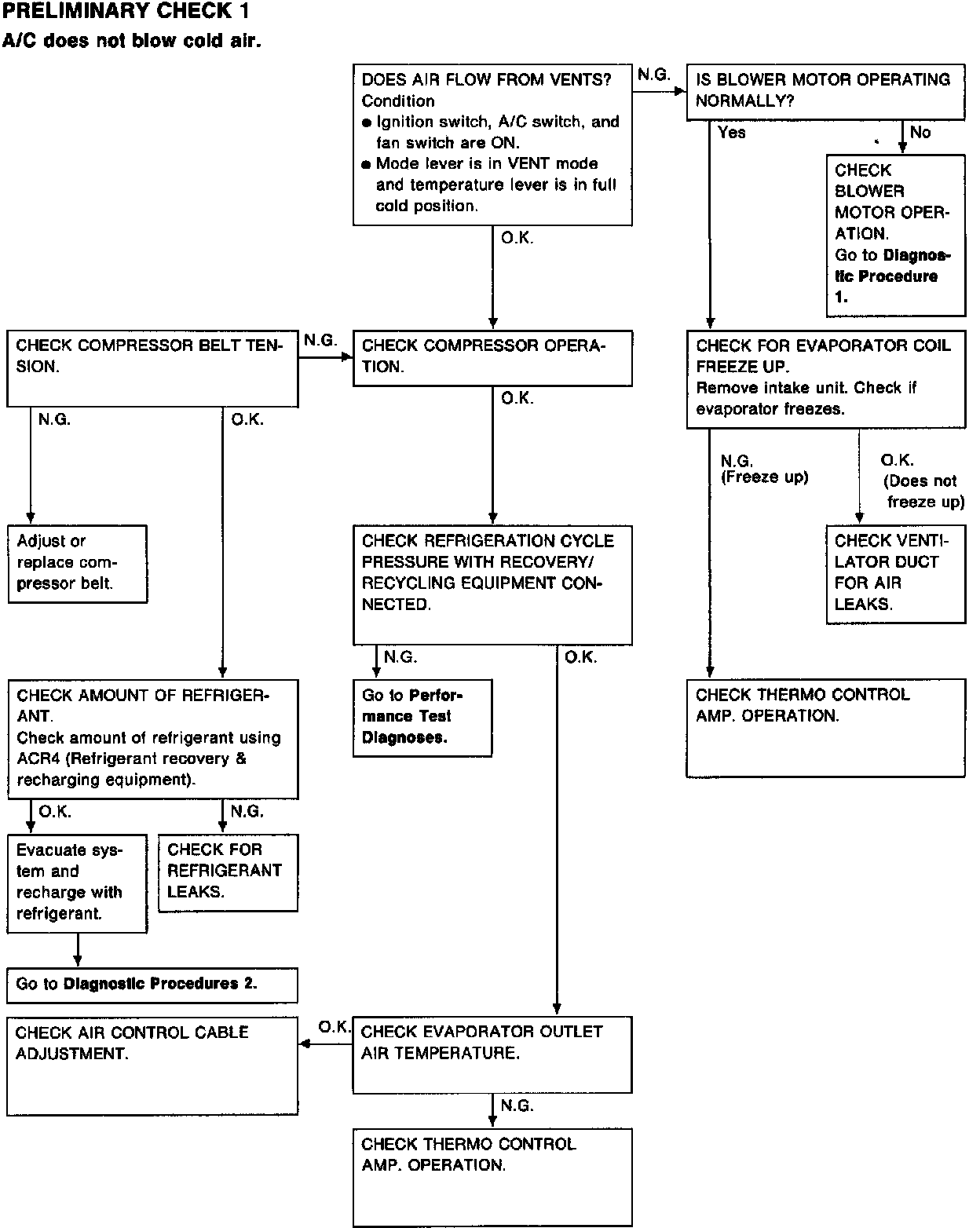

Preliminary Check 1 - Auto A/C:

Preliminary Check 3 - Auto A/C:

Preliminary Check 4 - Auto A/C:
