A/C - Refrigerant Oil Identification
Classification: HA95-017Reference: NTB95-106
Date: October 18, 1995
AIR CONDITIONING (A/C) LUBRICANT/OIL FOR NISSAN VEHICLES
This bulletin supersedes HA94-001. (94-013, 02/01/94)
APPLIED VEHICLES: All equipped with A/C
SERVICE INFORMATION

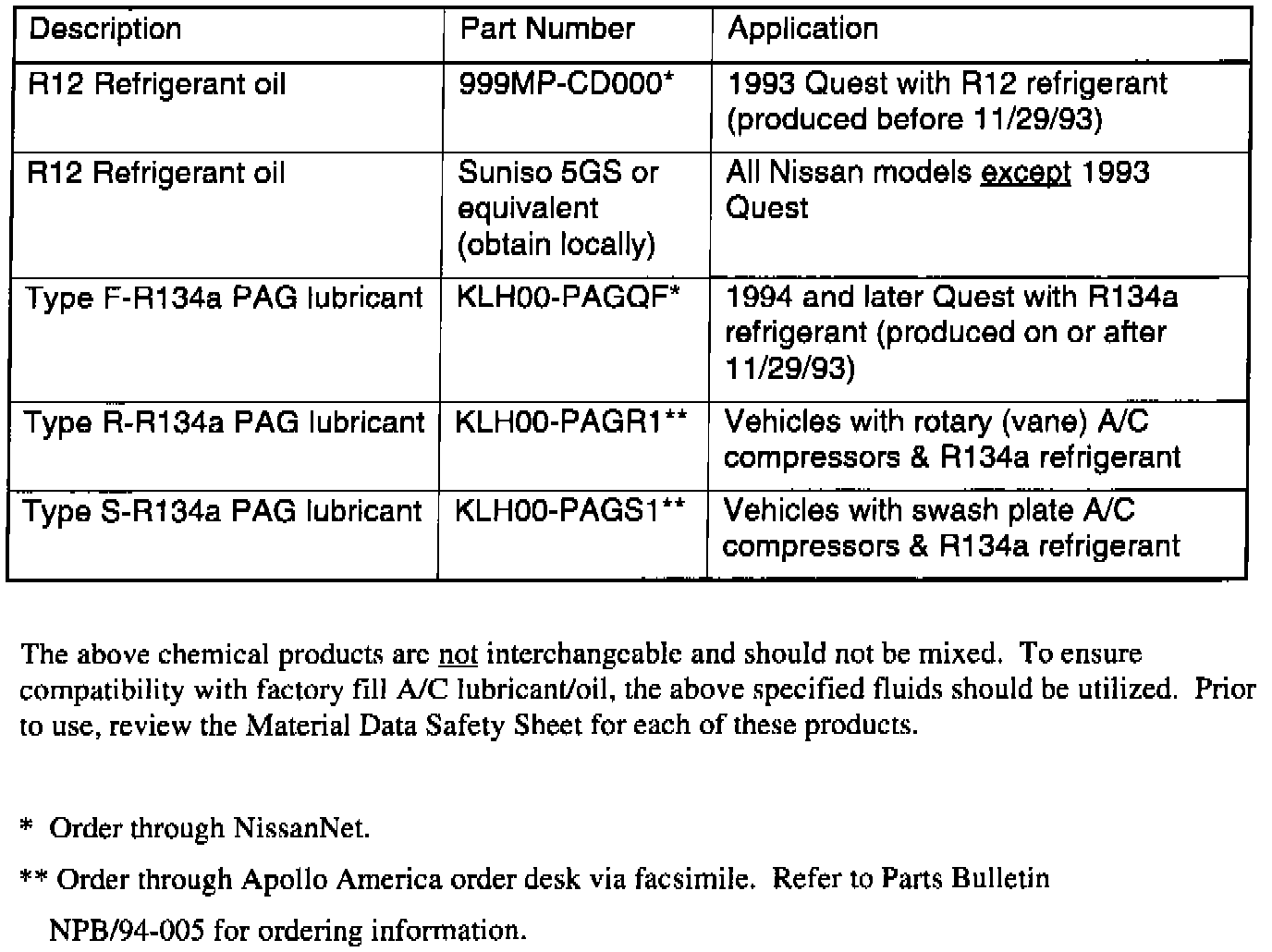

Nissan has four different A/C lubricant/oil products available. Different systems will require different types of lubricants/oils. All R134a equipped vehicles have a label under the hood that specifies the type of lubricant required for the system on that vehicle. A description of the type of compressor and lubricant/oil required is also listed in the Service Data and Specifications at the end of the HA section in the appropriate service manual. During A/C servicing, if lubricant/oil needs to be added to the system, please refer to the list of PAG (poly alkaline glycol) lubricants and refrigerant oils listed in this bulletin.
NOTE:
Quest vehicles produced on or after November 29, 1993 with R134a refrigerant, will require a special compressor lubricant. The recommended compressor lubricant for this vehicle only is: Type F-R134a PAG lubricant, part number KLH00-PAGQF.
