Heating and Air Conditioning: Service and Repair

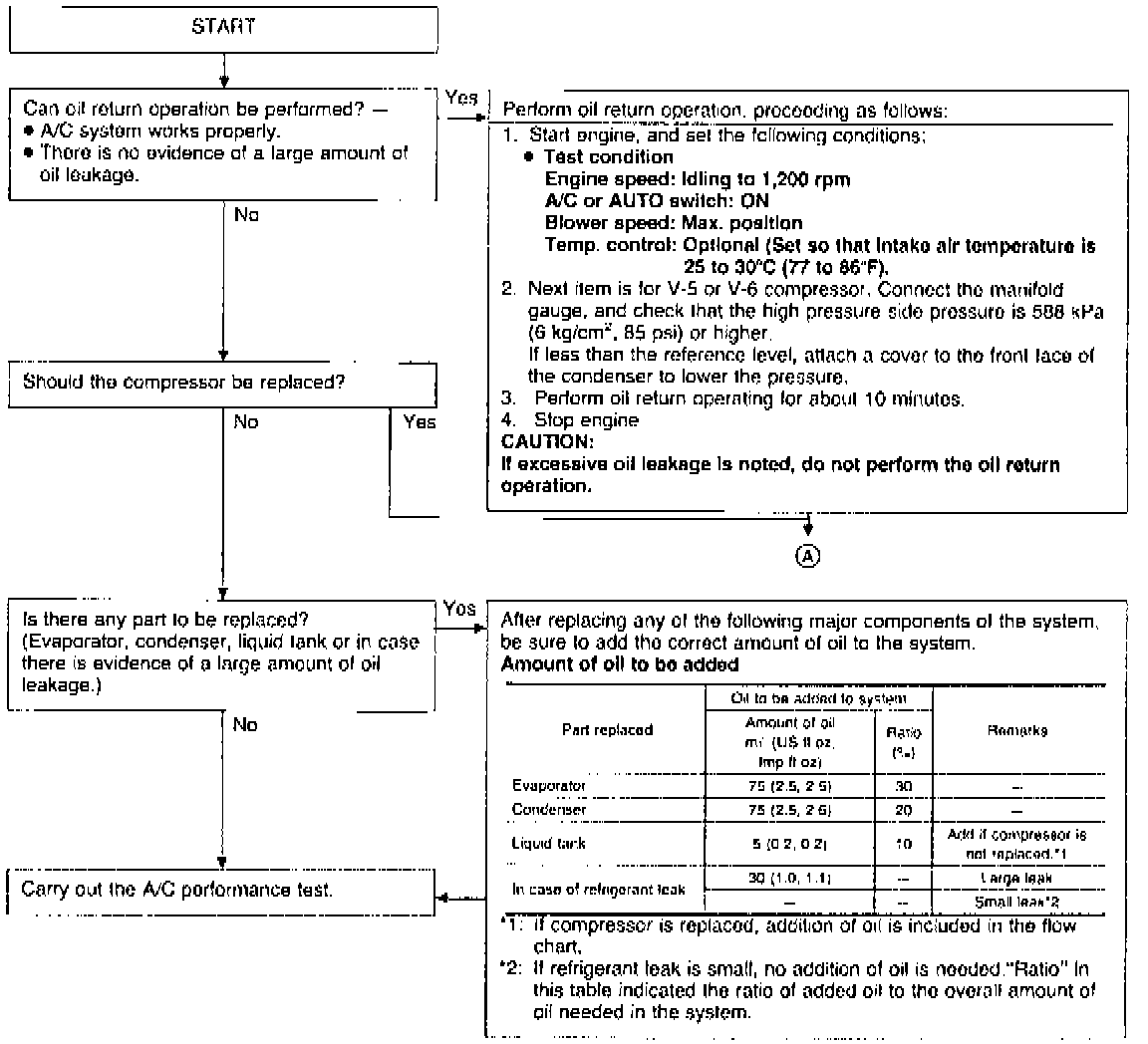

Fig. 19 Refrigerant Oil Replacement Flow Chart (Part 1 Of 2):

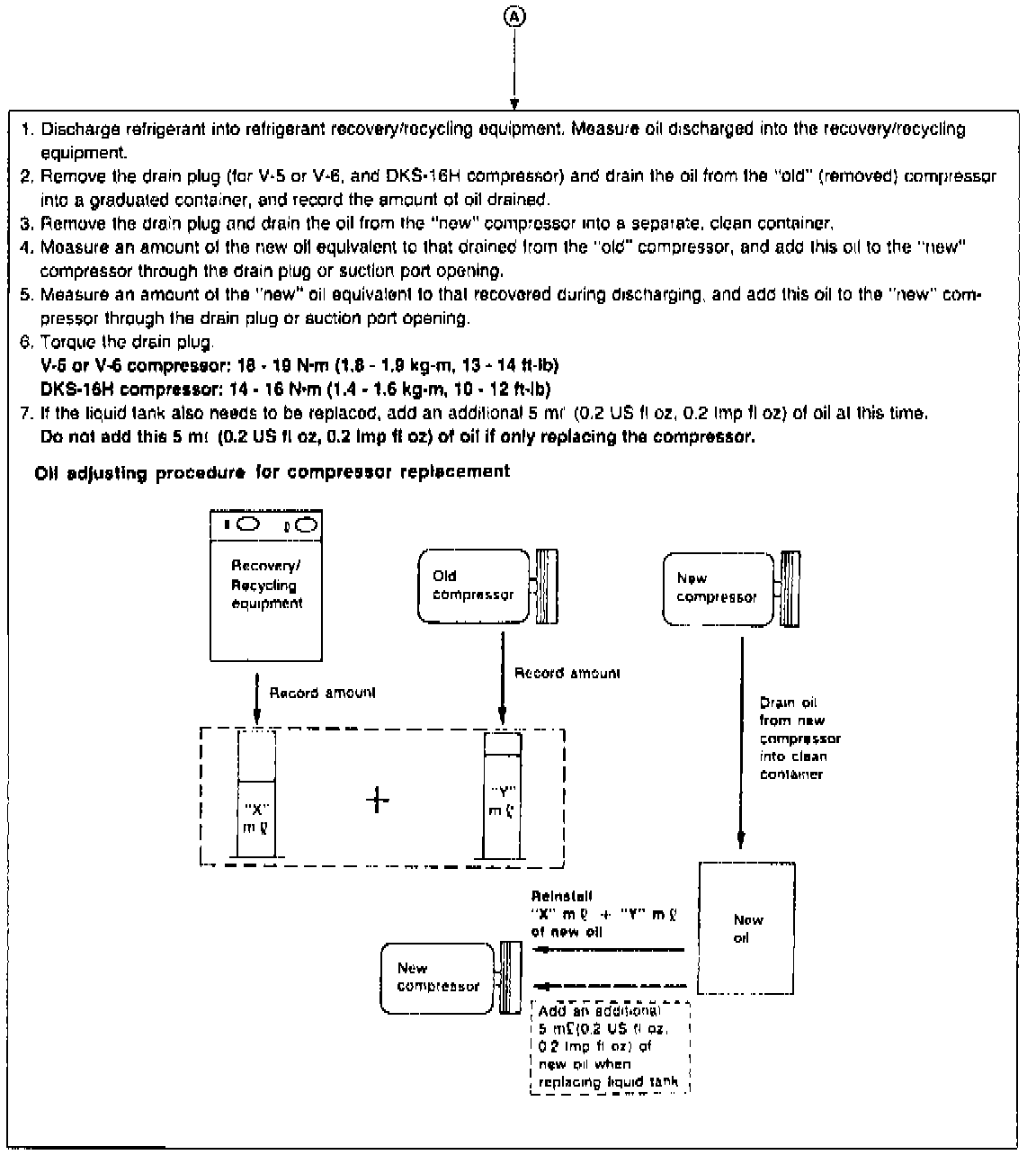

Fig. 19 Refrigerant Oil Replacement Flow Chart (Part 2 Of 2):

Refer to R-134a Refrigerant in Technician Safety Information before adjusting oil level. Adjust oil quantity according to the charts in Fig. 19.
