Home >> Nissan-Datsun >> 1994 >> D21 Hardbody 2WD V6-2960cc 3.0L SOHC MFI (VG30E) >> Repair and Diagnosis >> Heating and Air Conditioning >> Relays and Modules - HVAC >> Control Module HVAC >> Testing and Inspection

Control Module HVAC: Testing and Inspection

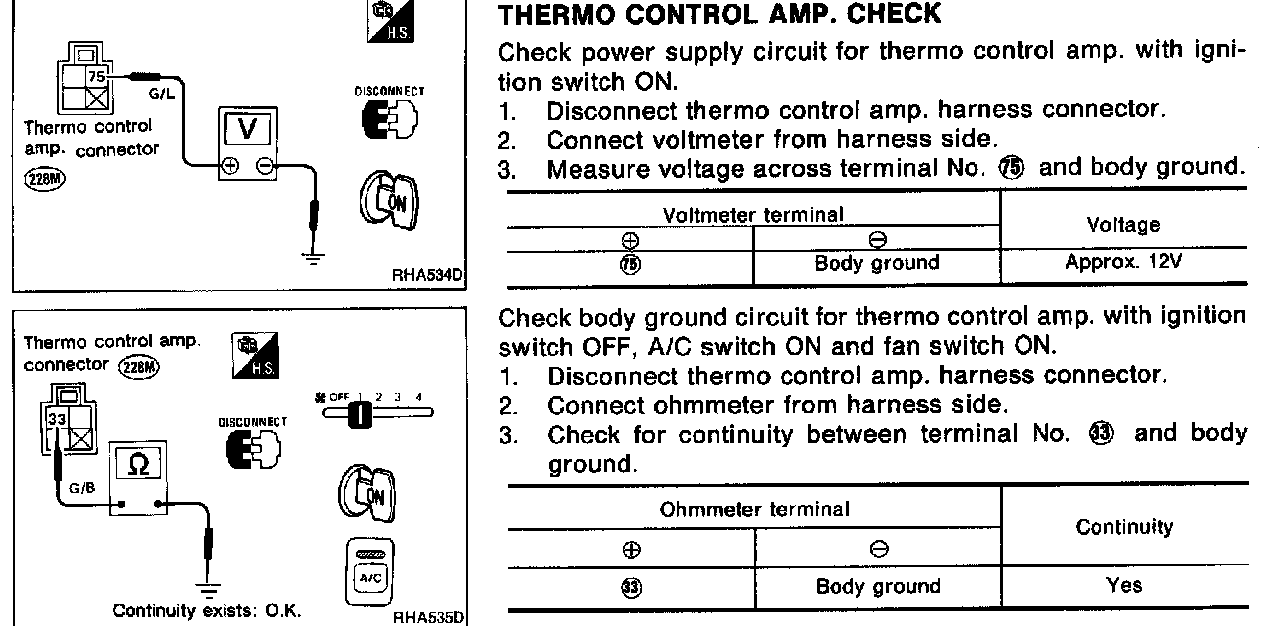

Thermo Control Amp Check - Manual A/C:

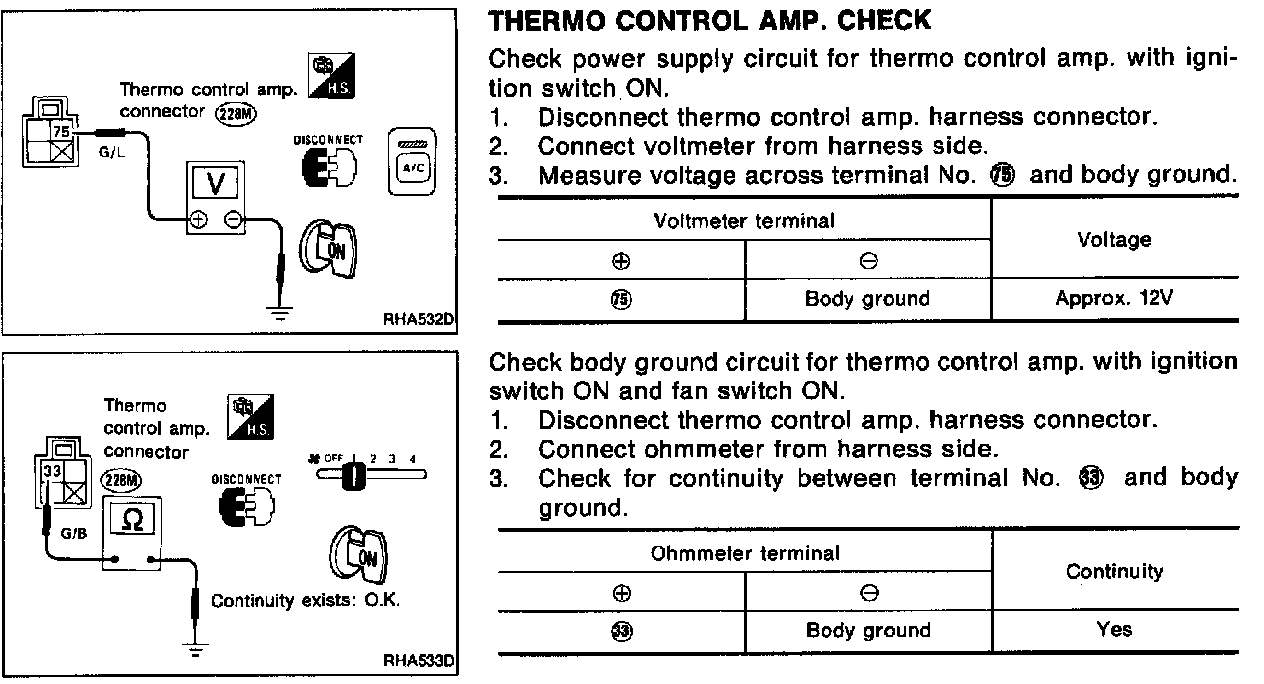

Thermo Control Amp Check -Auto A/C:
