Home >> Nissan-Datsun >> 1994 >> D21 Hardbody 2WD V6-2960cc 3.0L SOHC MFI (VG30E) >> Repair and Diagnosis >> Heating and Air Conditioning >> Compressor Clutch Relay >> Locations

Compressor Clutch Relay: Locations

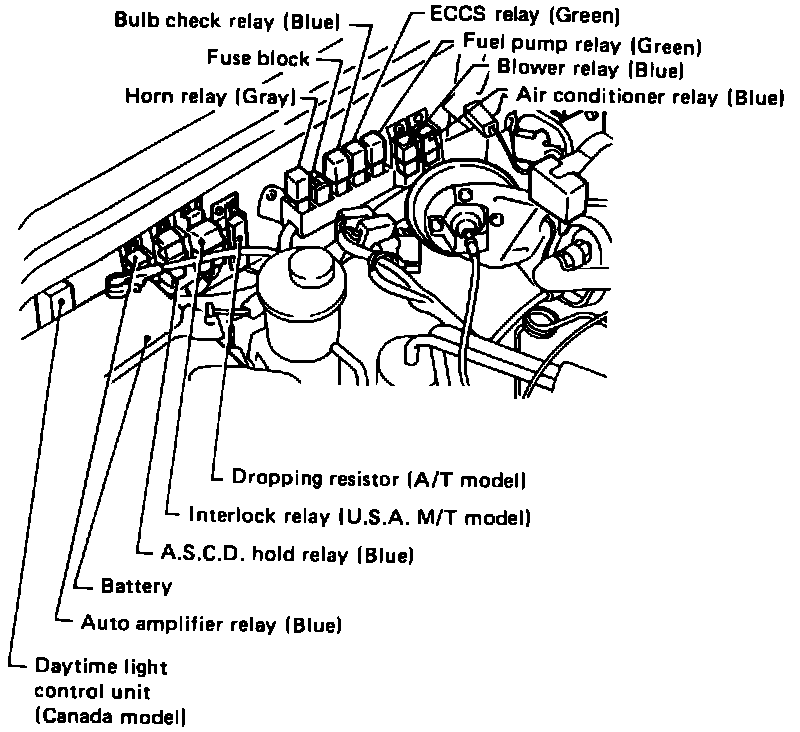

Relay Locations:






AIR CONDITIONER RELAY
Located next to the relay box on the passenger's fender.
