Timing Belt: Testing and Inspection

TIMING BELT INSPECTION

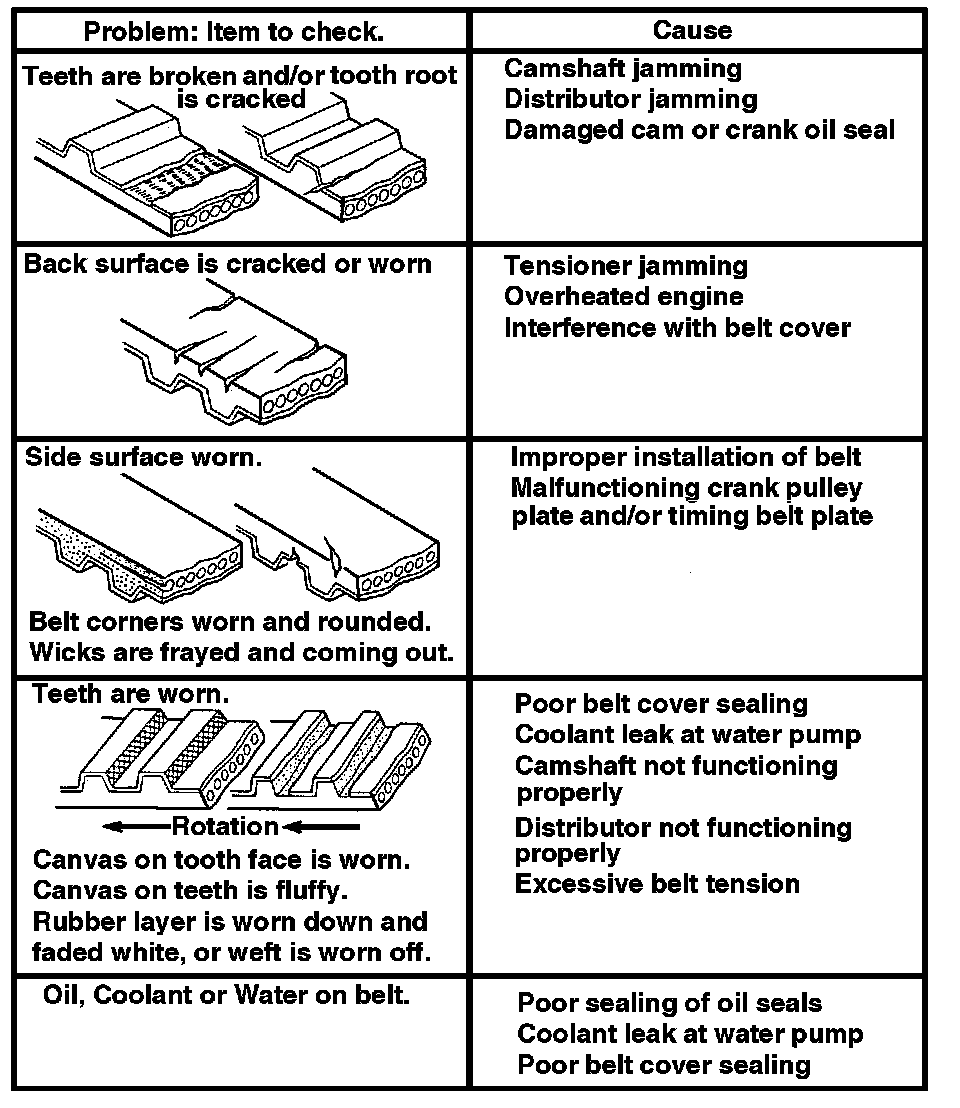

Visually check the condition of timing belt. Replace if any abnormality is found.




TENSIONER AND SPRING

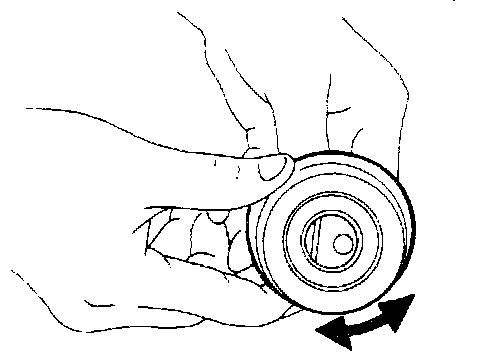

1. Check belt tensioner for smooth turning.
2. Check condition of tensioner spring.
