Camshaft Oil Seal: Service and Repair

1. Remove timing belt as previously described.
2. Remove camshaft pulleys.
3. Remove camshaft oil seal, being careful not to scratch camshaft.

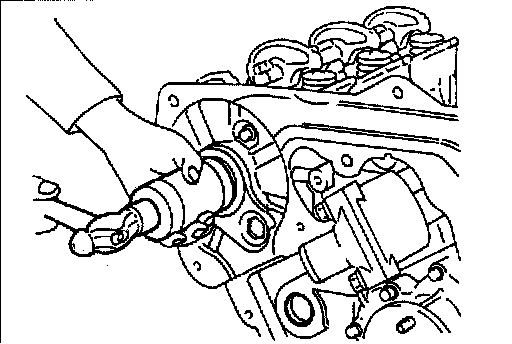

4. Apply engine oil to new camshaft oil seal and drive it into place.
5. Install camshaft pulleys.
6. Install timing belt as previously described.
