Radiator: Service and Repair

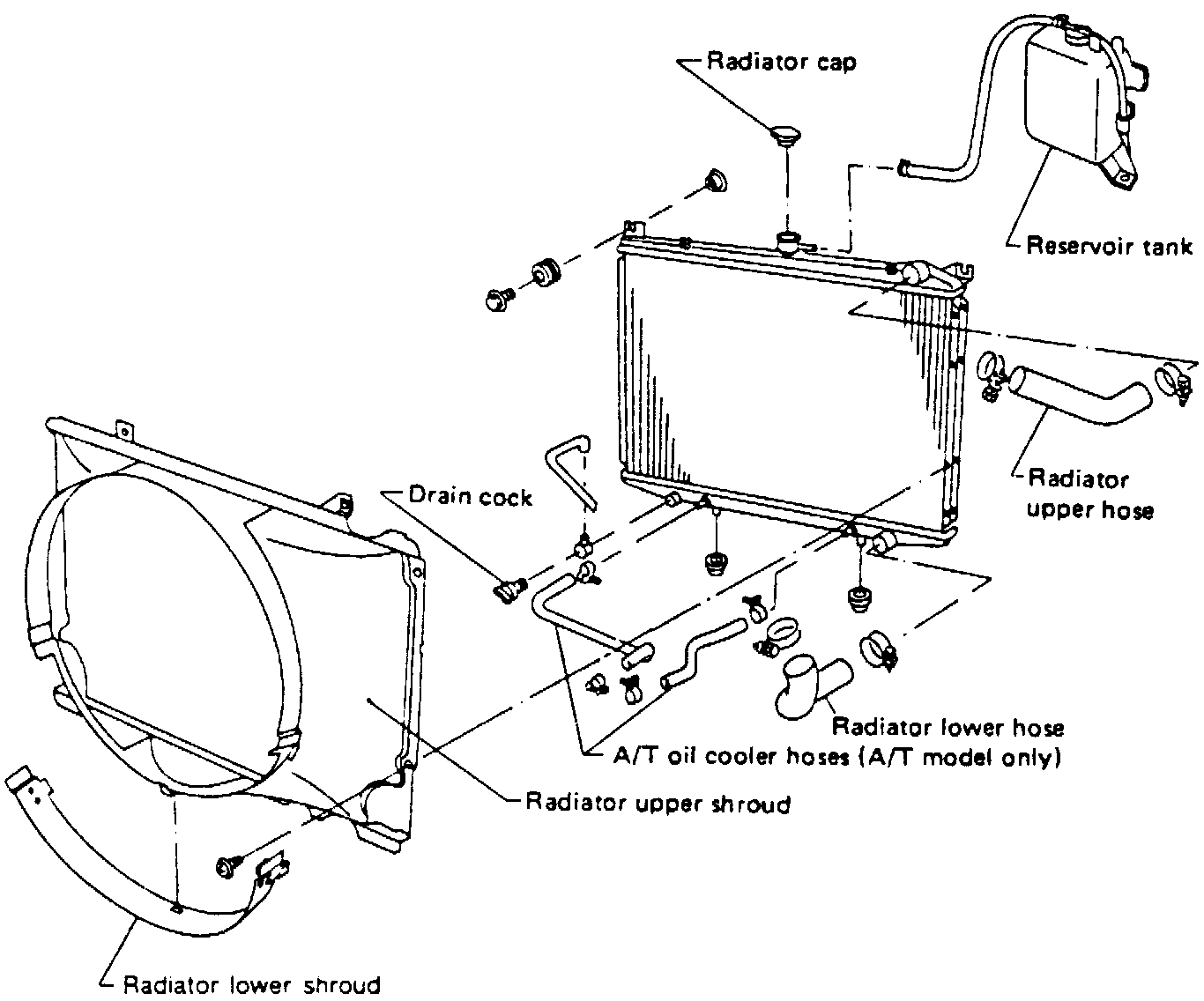

Fig. 22 Radiator Removal:

1. Disconnect battery ground cable.
2. Remove undercover panel and drain coolant.
3. Remove air duct.
4. Disconnect radiator upper and lower hoses, Fig. 22.
5. On models with automatic transmission, remove automatic transmission oil cooler lines.
6. Remove radiator lower shroud.
7. Disconnect reservoir tank hose.
8. Carefully lift radiator out of vehicle to avoid damage.
9. Reverse procedure to install.
