Installation

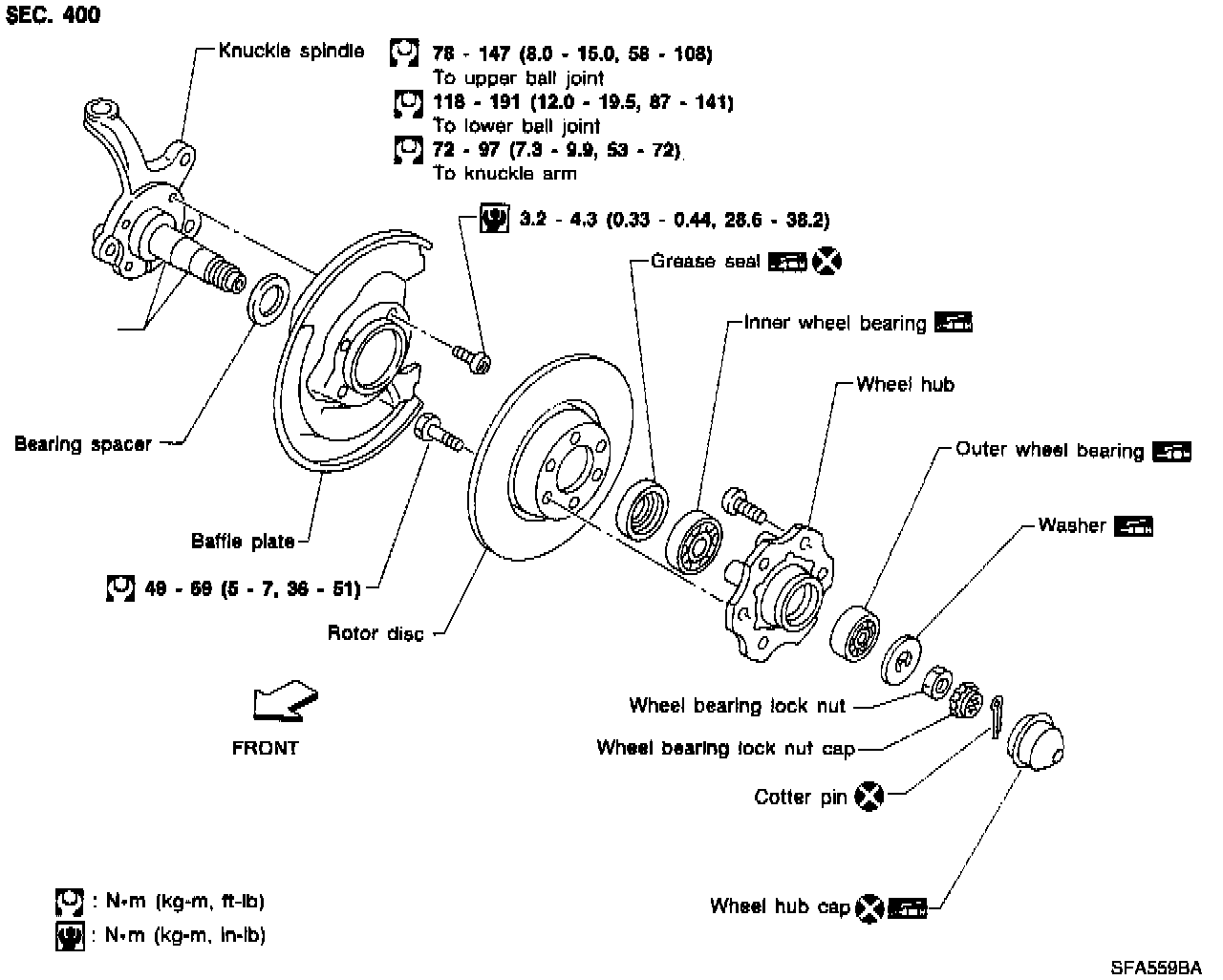

Exploded View:

INSTALLATION
Mount rotor onto hub with matching marks aligned and torque bolts to specification. 49-69 Nm (36-51 ft lb)

HUB INSTALLATION - 2WD
Install hub assembly and adjust wheel bearing preload as follows:
1. Before adjustment, thoroughly clean all parts to prevent dirt entry.
2. Apply multi-purpose grease sparingly to the following parts:
^ Rubbing surface of spindle
^ Contact surface between lock washer and outer wheel bearing

Multi-purpose Grease Points:

^ Hub cap (as shown)
^ Grease seal lip
^ Wheel hub ( as shown)

Wheel Bearing Torque:

3. Tighten wheel bearing lock nut to the specified torque.
34 - 39 Nm (3.5 - 4.0 kg-m, 25 - 29 ft-lb)

Turning Hub To Seat Berings:

4. Turn wheel hub several times in both directions to seat wheel bearing correctly.
5. Again tighten wheel bearing lock nut to the specified torque.
34 - 39 Nm (3.5 - 4.0 kg-m, 25 - 29 ft-lb)

45degree Return Angle:

6. Turn back wheel bearing lock nut 45 degrees.

Cotter Pin Fit:

7. Fit adjusting cap and new cotter pin. Align cotter pin slot by loosening nut 15 degrees or less.

Measuring Bearing Preload And Axial End Play:

8. Measure wheel bearing preload and axial end play.

AXIAL END PLAY:
0 mm (0 in)

BEARING PRELOAD:
[New grease seal]
9.8 - 28.4 N (1.0 - 2.9 kg, 2.2 - 6.4 lb)

[Used grease seal]
9.8 - 23.5 N (1.0 - 2.4 kg, 2.2 - 5.3 lb)

For additional information see Installation Notes. Fundamentals and Basics
