How to Display and Read Diagnostic Trouble Codes

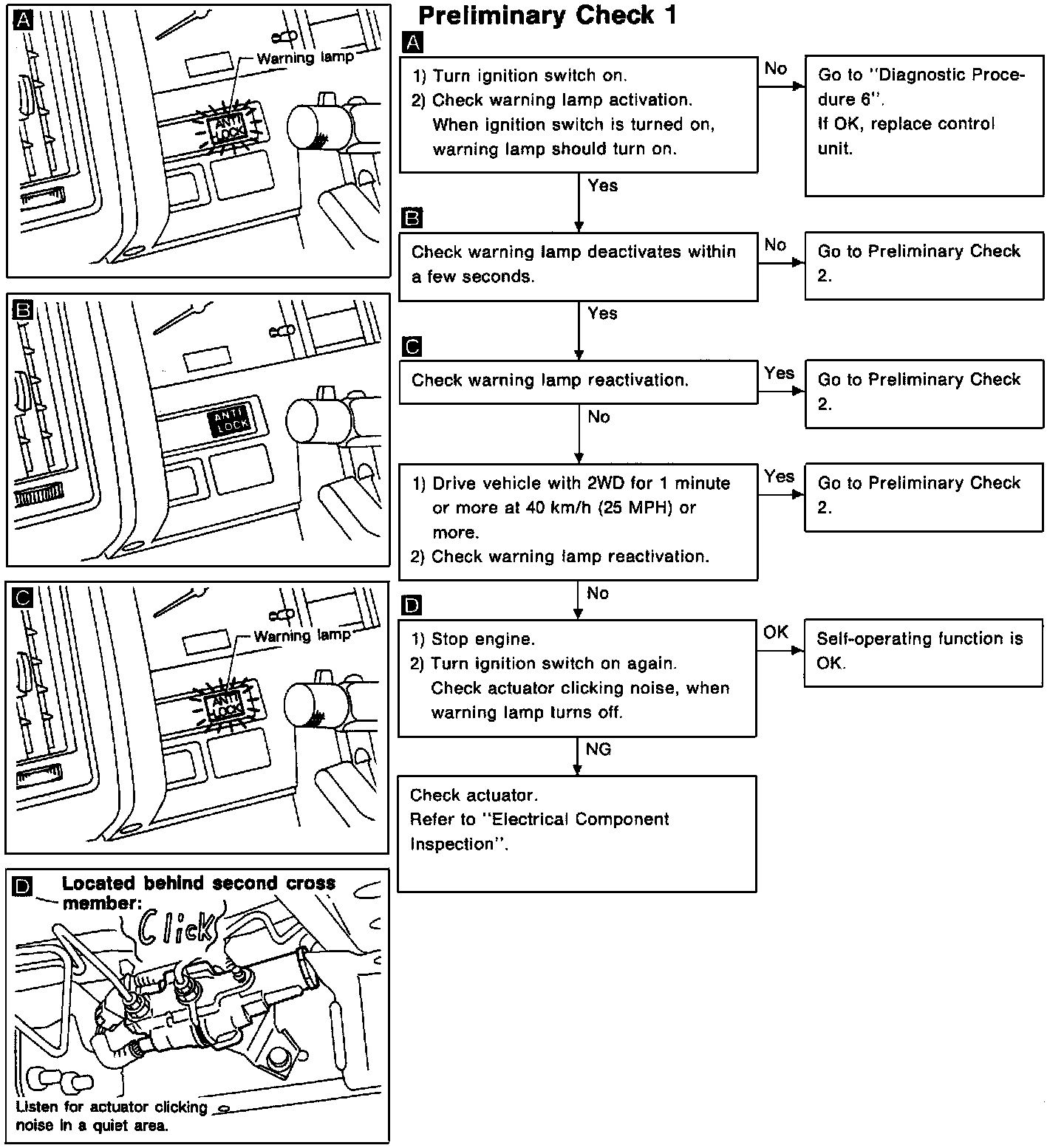

Preliminary Check 1:

Preliminary Check 2:

When a problem occurs in the R-ABS, the warning lamp on the instrument panel comes on. To obtain satisfactory self-diagnosing results, the vehicle must be driven in 2WD above 40 km/h (25 mph) for at least one minute before the self-diagnosis is performed.
