D21 Hardbody 2WD V6-2960cc 3.0L SOHC MFI (VG30E)
>>
Repair and Diagnosis
>>
Brakes and Traction Control
>>
Antilock Brakes / Traction Control Systems
>>
Testing and Inspection
>>
Initial Inspection and Diagnostic Overview
>>
Electrical Component Inspection
Electrical Component Inspection

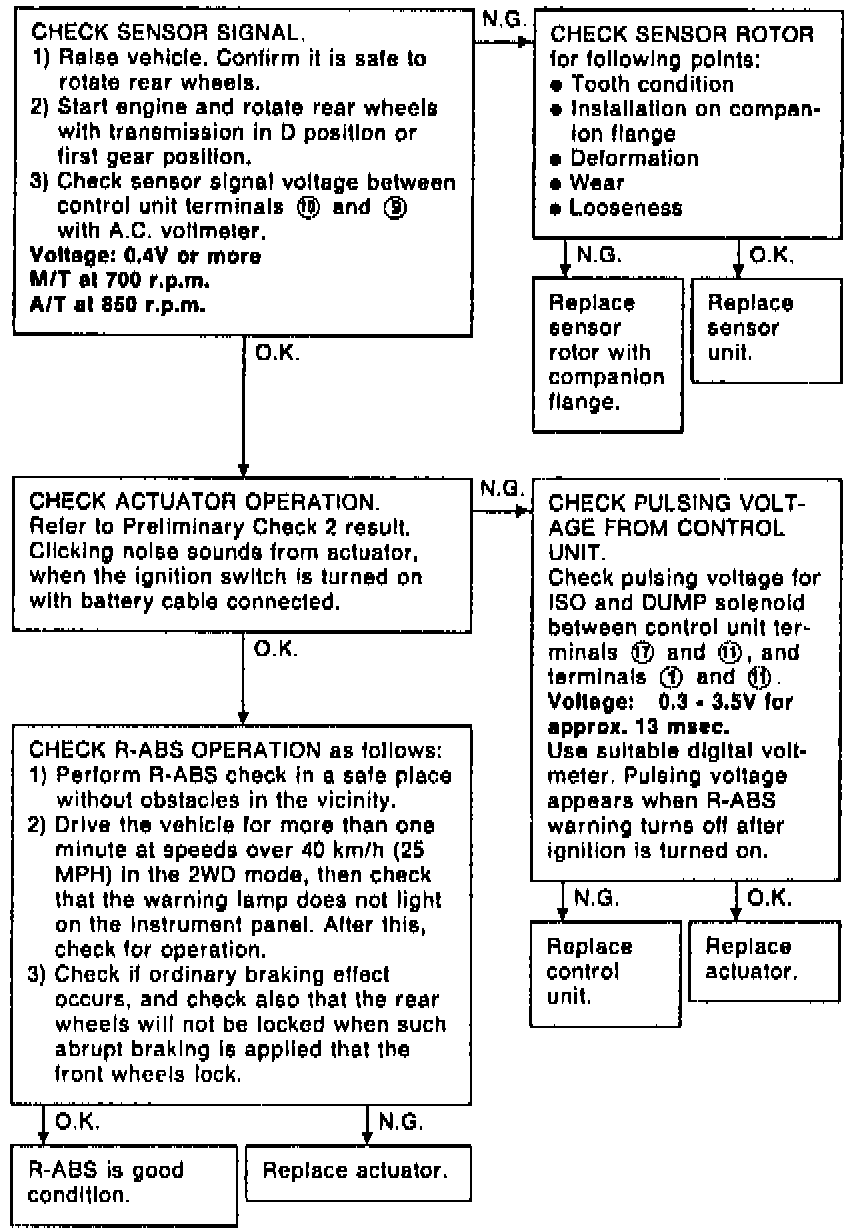

Fig. 204 Electrical Component Inspection (Sensor Unit & Actuator):
Refer to
Fig. 204
for electrical component inspection.
