Diagnostic Test Procedure 7
Diagnostic Test Procedure 7

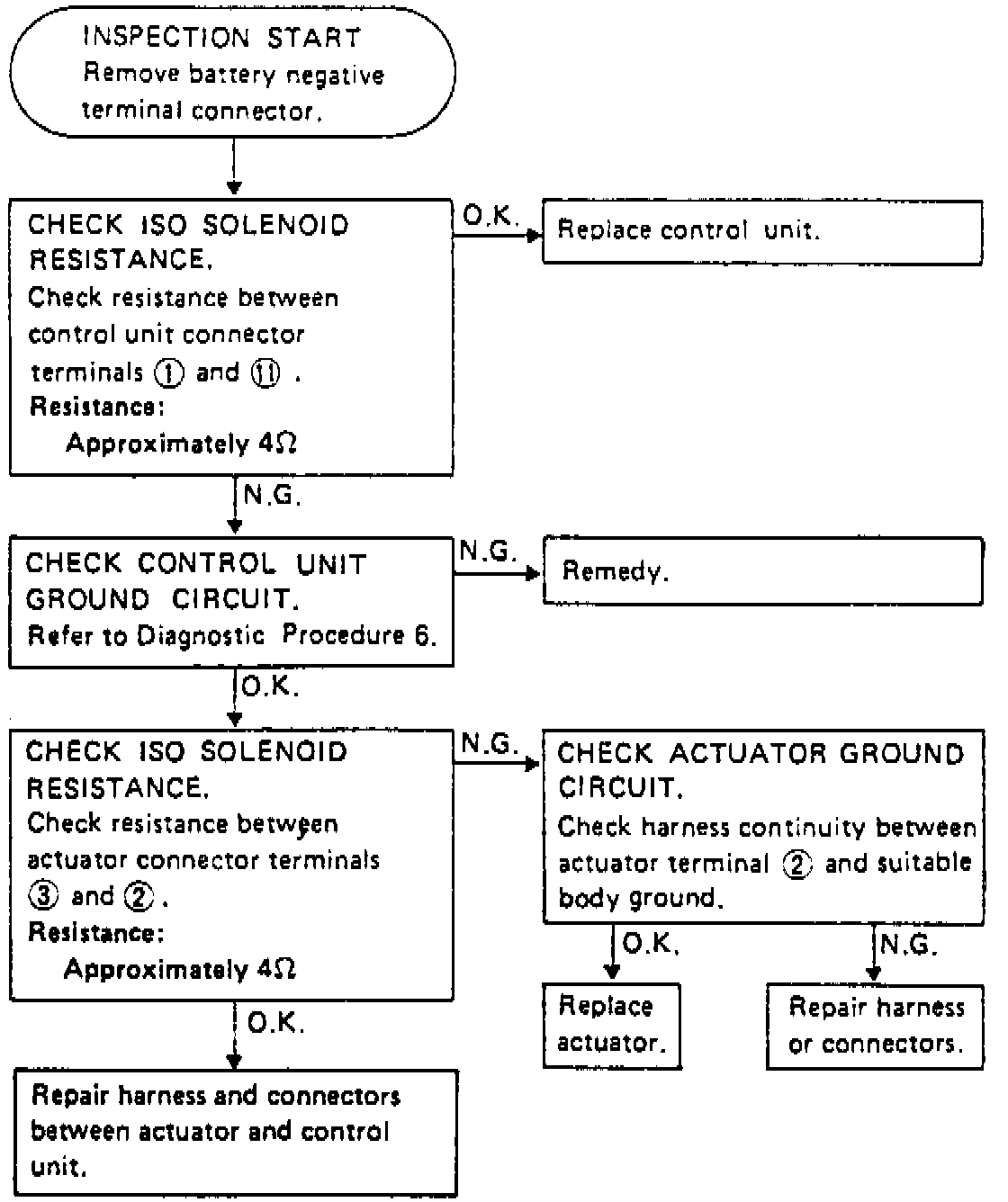

Fig. 160 Test 7: Actuator ISO Solenoid Short Circuit Or Open:
