Dashboard / Instrument Panel: Service and Repair

INSTRUMENT PANEL

CAUTION:

Disconnect both terminals from battery in advance.

Disconnect air bag module connector in advance.

Be careful not to scratch finishers and other parts.

ever tamper with or force air bag lid open, as this may adversely affect air bag performance.

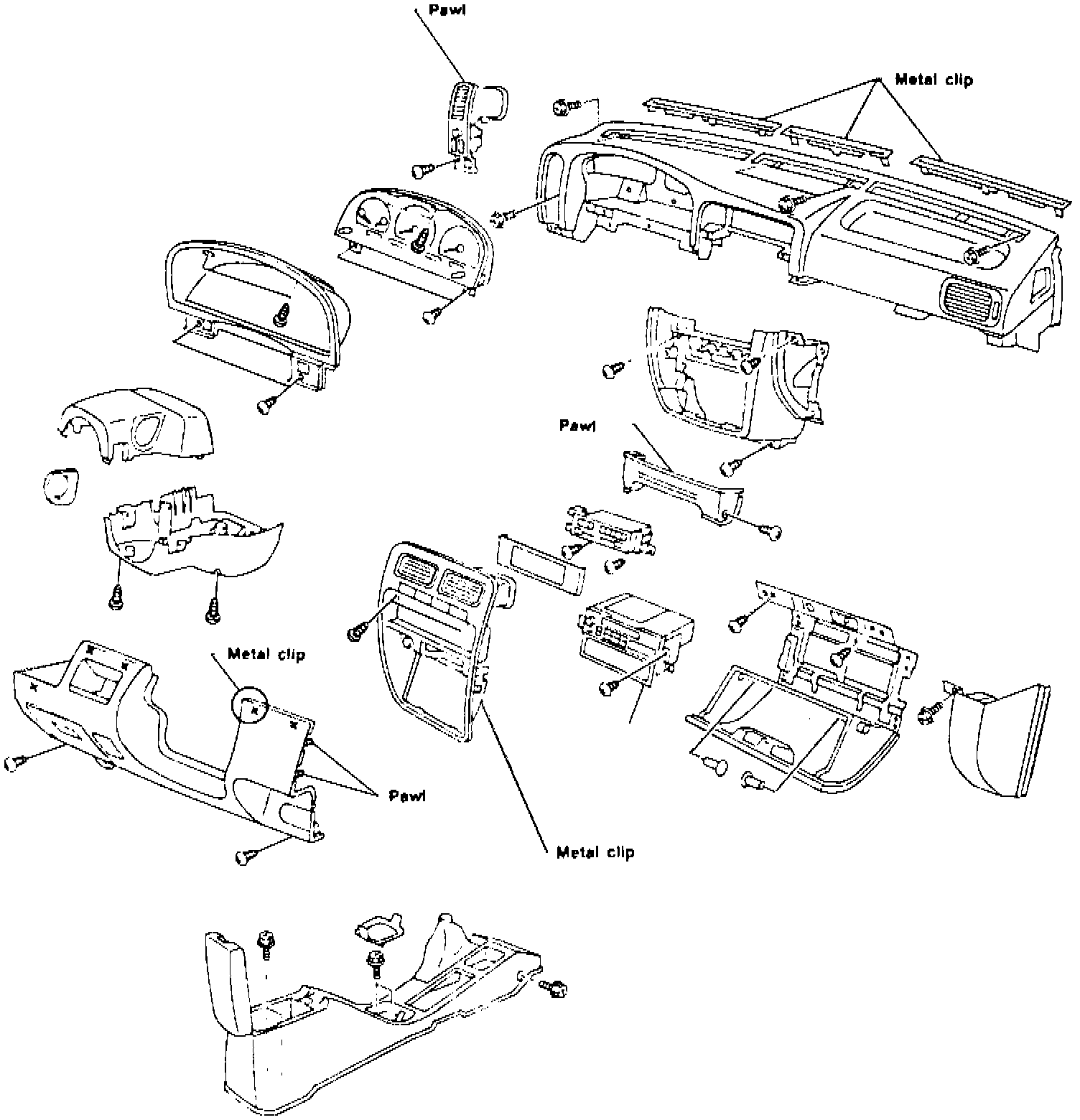

Fig. 7 Exploded View Of Instrument Panel:

INSTALLATION

Reverse the procedures described above.
Pay attention so as not to scratch the parts (plastic). During installation, fit the ducting parts exactly.
