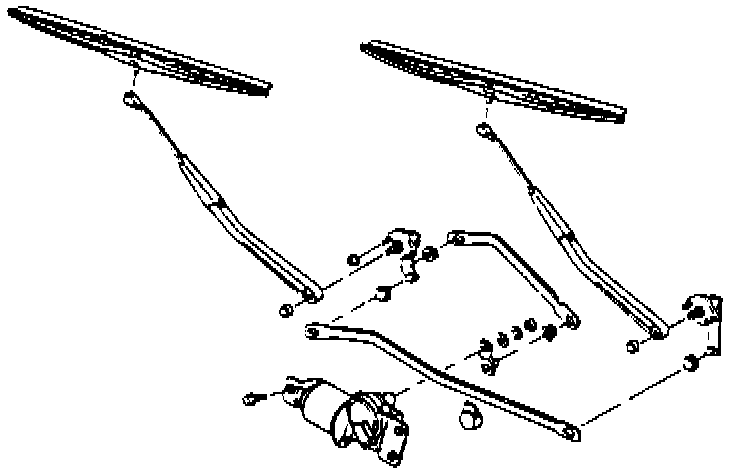

Fig. 8 Exploded View Of Windshield Wiper System:

1. Remove wiper arms, Fig. 8.
2. Disconnect electrical connector from motor, then remove top grille retaining screws and top grille, where possible, to gain access to wiper linkage.
3. Remove wiper motor mounting bolts and pull motor away from firewall.
4. Disconnect motor shaft from linkage, taking care not to bend linkage.
5. Remove cowl top grille.
6. Remove flange nuts retaining pivot to cowl top.
7. Remove wiper motor linkage.
8. Reverse procedure to install.
