Ignition Lock: Service and Repair

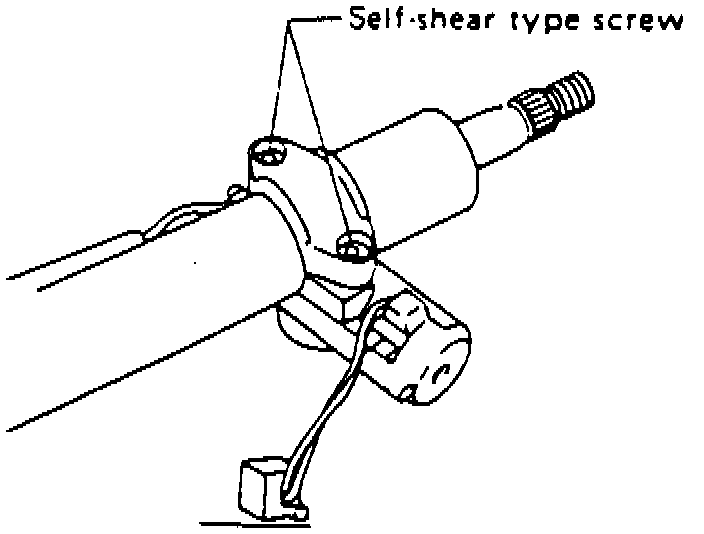

Fig. 1 Ignition Lock Replacement:

1. Tighten ignition lock shear type retaining screws until the screw heads break off, Fig. 1.
2. Remove ignition lock.
3. Drill out remaining part of screws.
4. Reverse procedure to install, using shear type screws.
