Home >> Nissan-Datsun >> 1993 >> NX L4-1597cc 1.6L DOHC MFI (GA16DE) >> Repair and Diagnosis >> Starting and Charging >> Starting System >> Diagrams >> Electrical Diagrams >> A/T Model Wiring Diagram

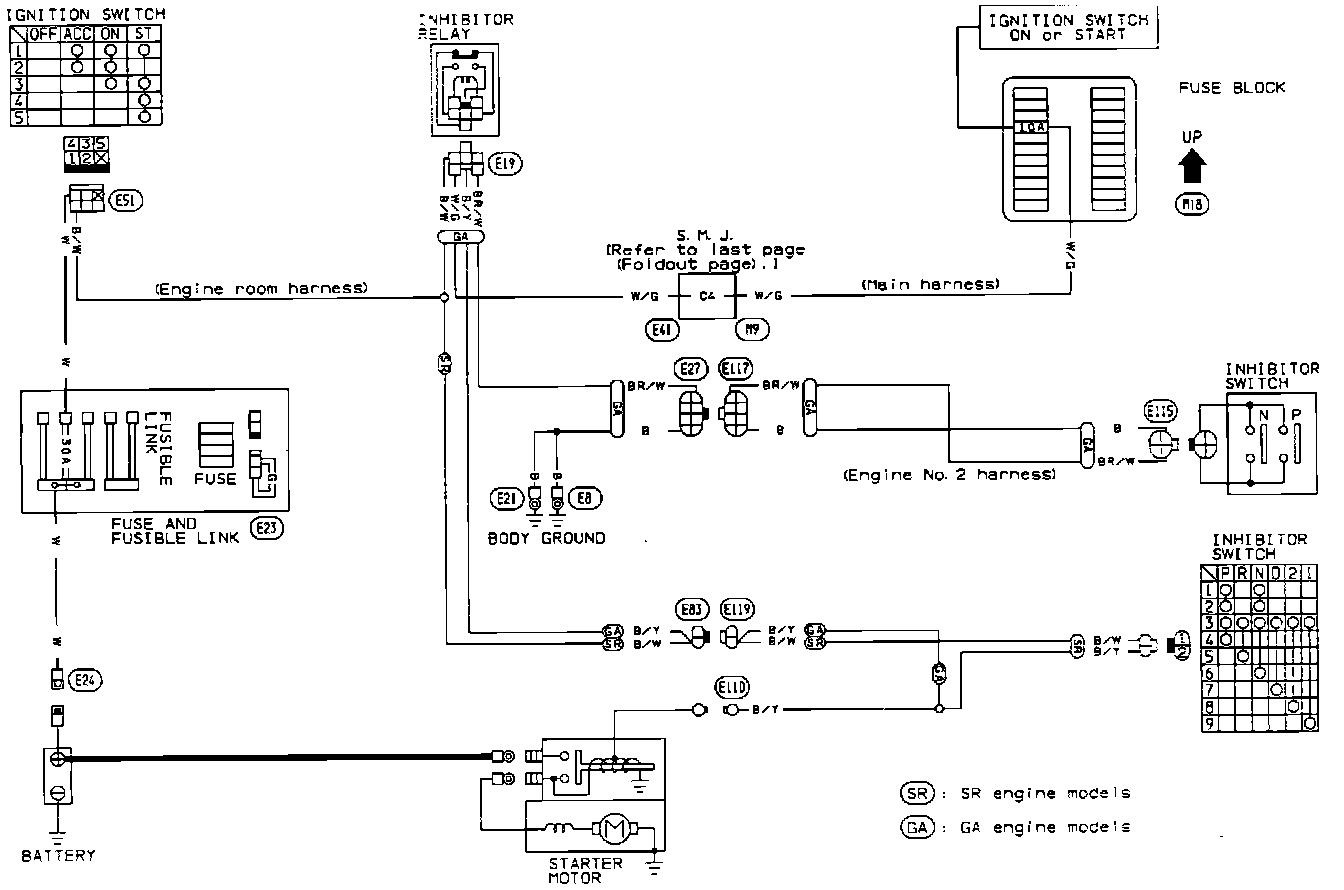

A/T Model Wiring Diagram

Starting System (A/T Models):
