Nissan-Datsun
>>
1993
>>
NX L4-1597cc 1.6L DOHC MFI (GA16DE)
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Charging System
>>
Locations
>>
Connector Locations
Connector Locations

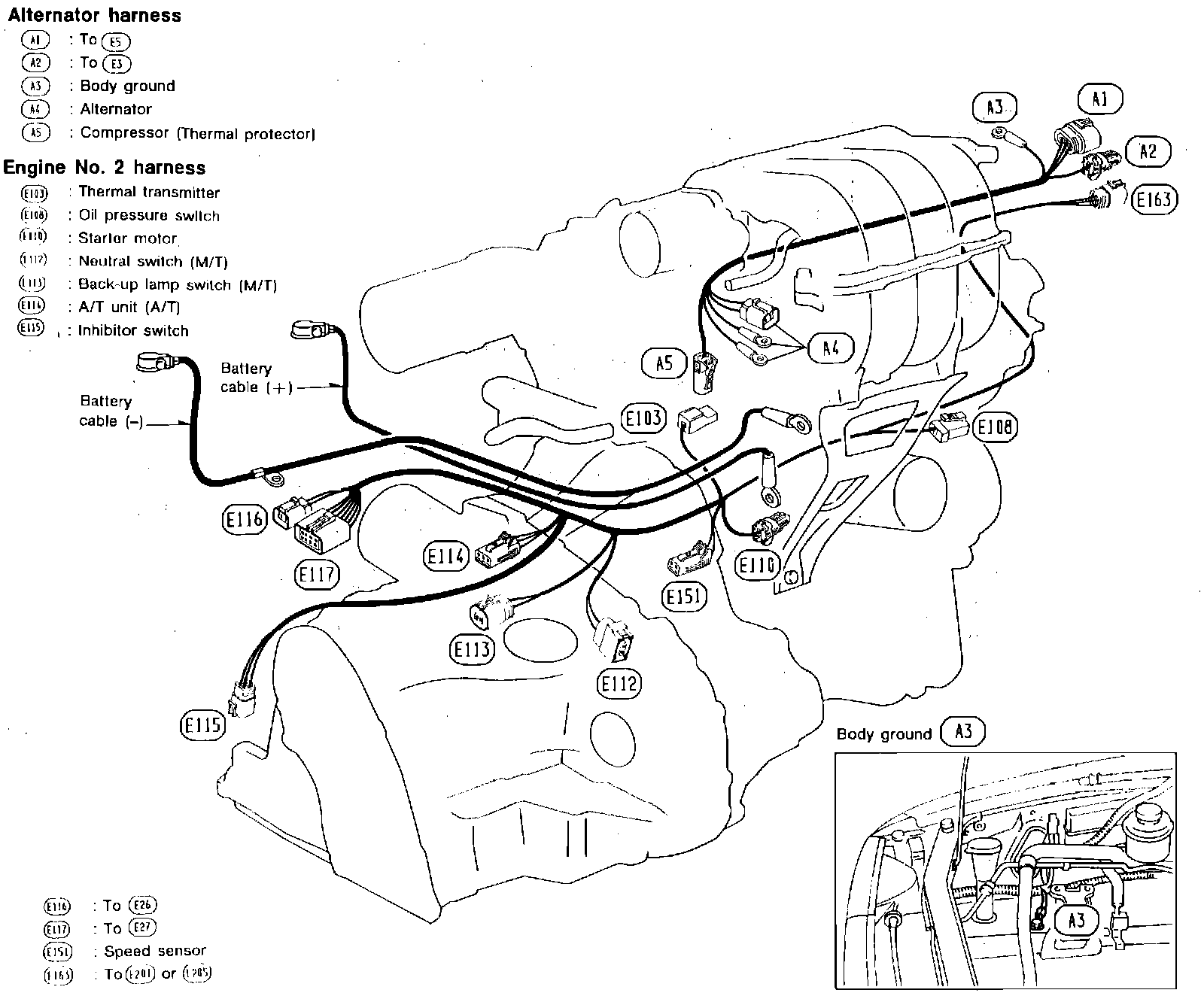

Harness Layout: Alternator Harness & Engine No. 2 Harness:
