Drive Belt

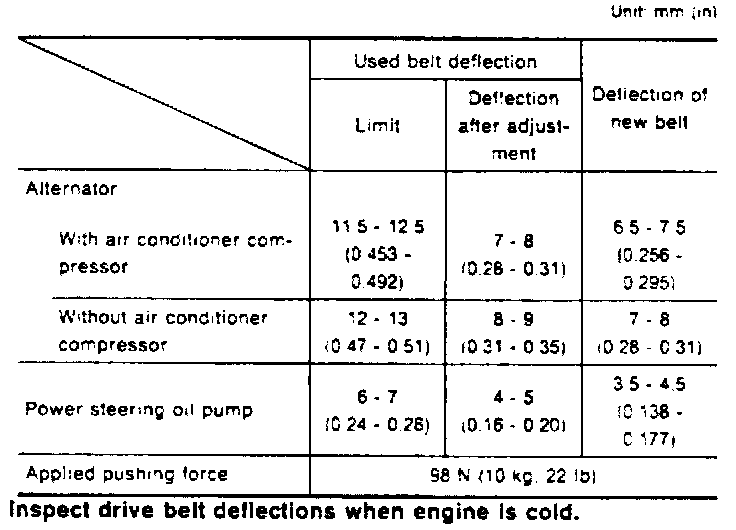

Fig. 32 Drive Belt Deflection Specifications:




Refer to Fig. 32 for belt deflection specifications.
