Engine Control Module

ECM Pin Expected Voltages:

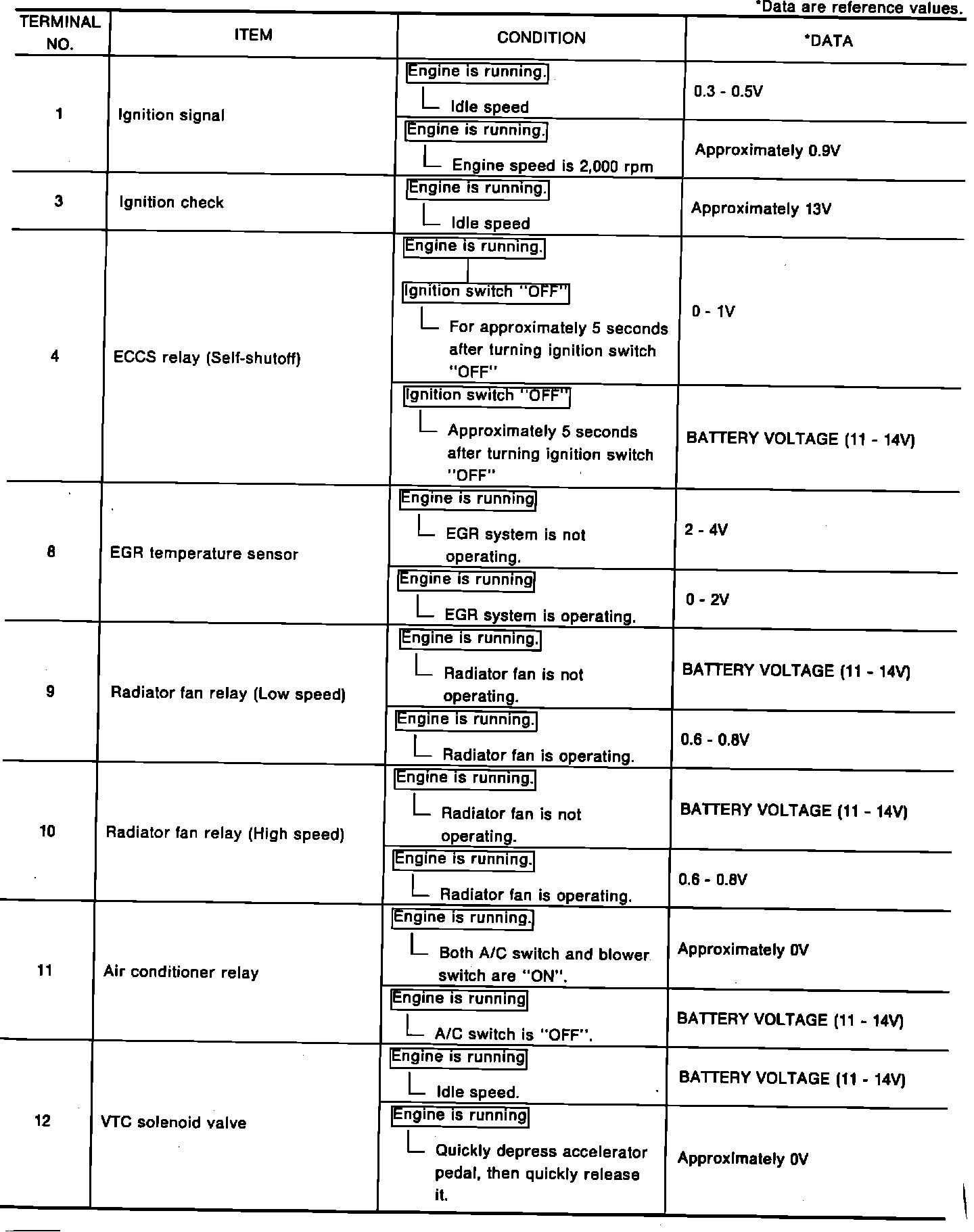

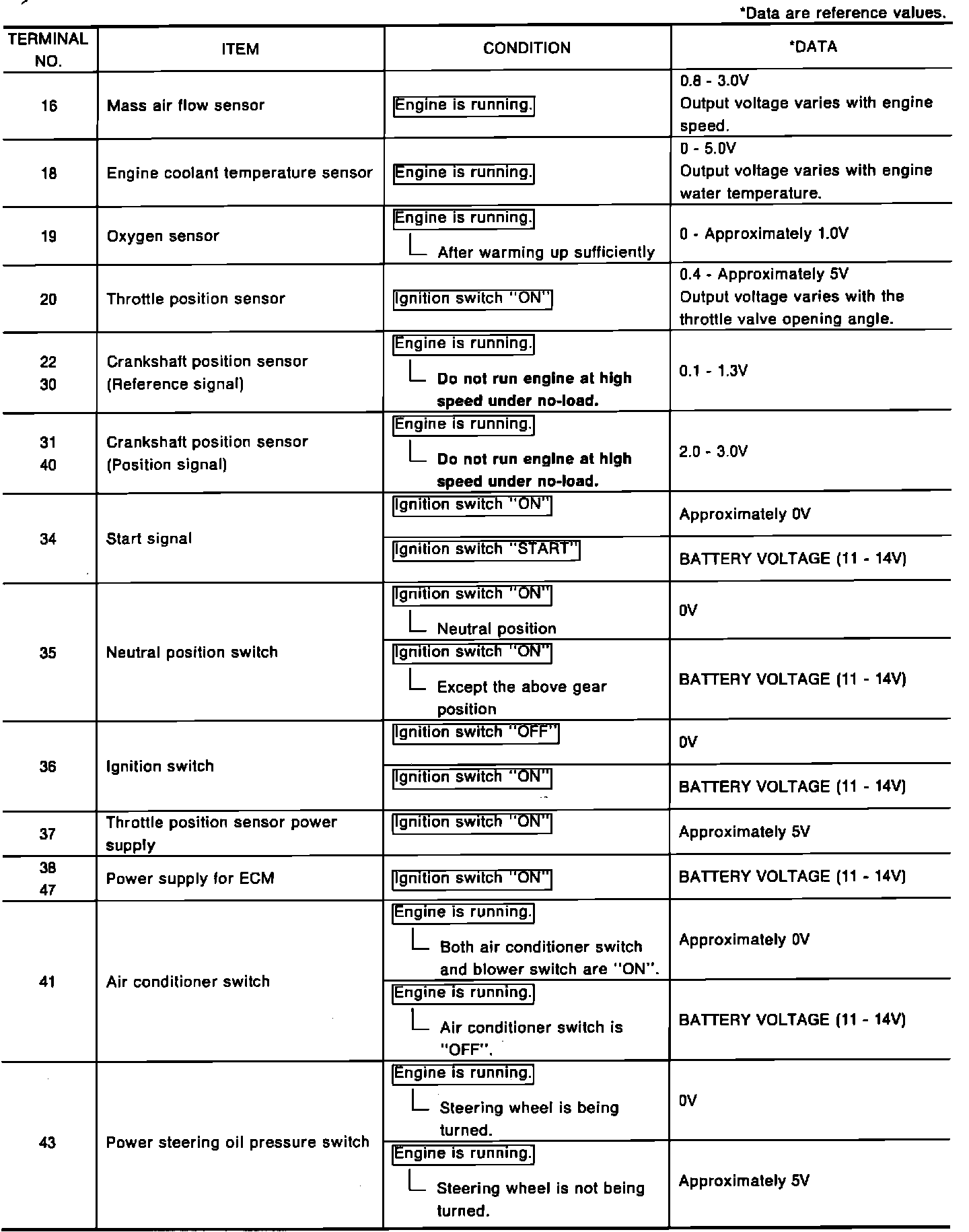

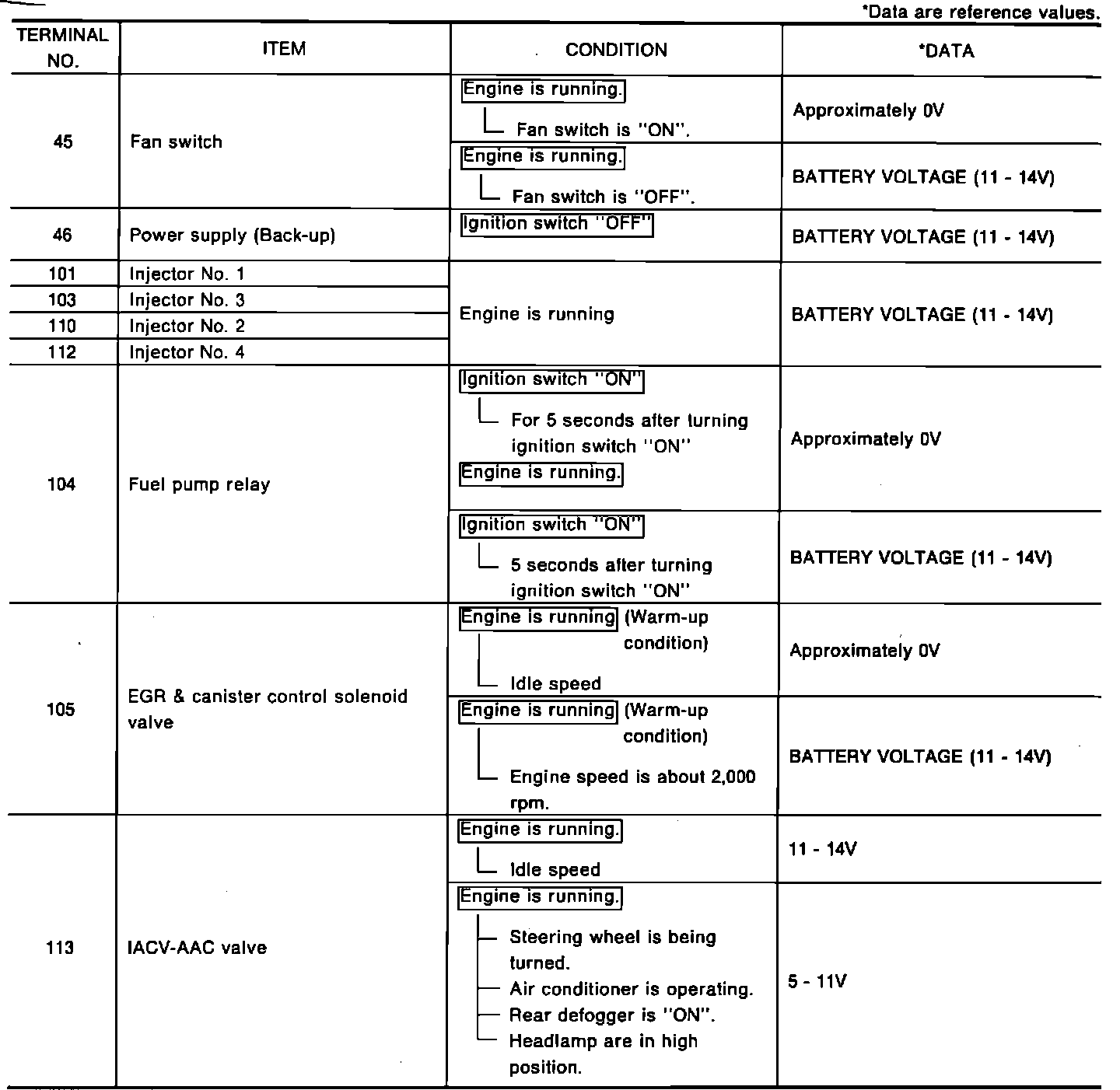

EXPECTED PIN VOLTAGES

ECM Terminal ID:

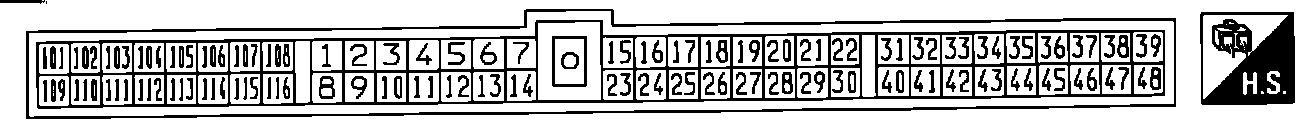

ECM TERMINAL ID

NOTE: Testing of circuit voltages can be done at the ECM connector by CAREFULLY backprobing the connector. Use a high-quality digital DVOM.
