DescriptionWARNING LIGHT AND CHIME OPERATION

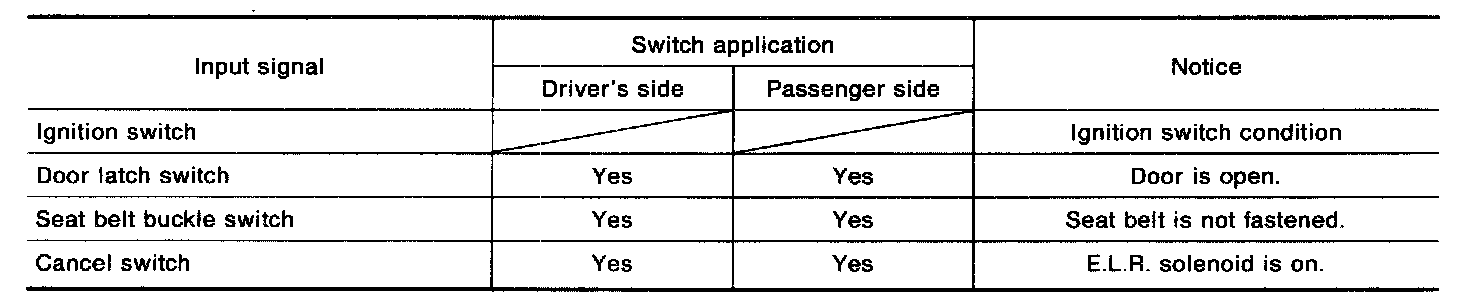

The warning light and chime are controlled by the following input signals.

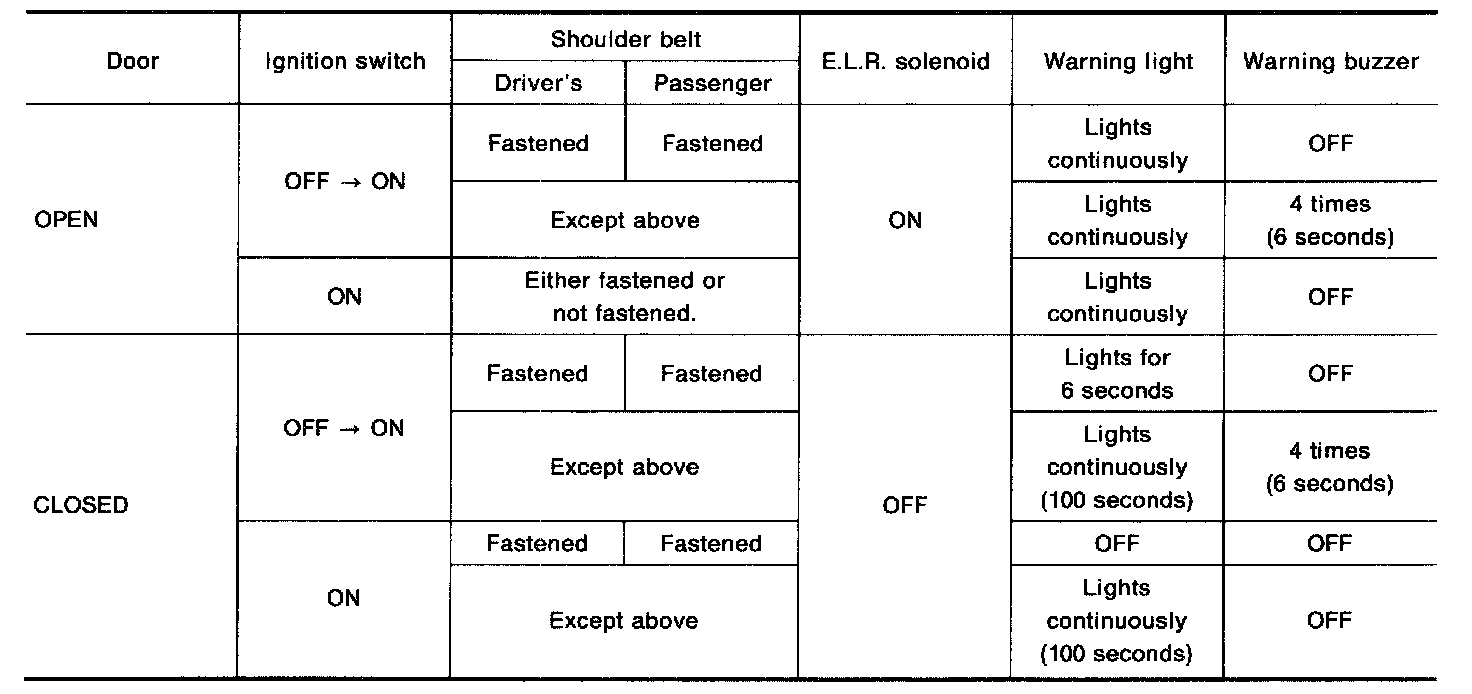

- Basic operation
SEAT BELT LOCKING CANCELER
Seat belt retractors for both sides have been equipped with a system to cancel the seat belt locks.
Function
The seat belt retractor does not lock belt length when the door is opened. While ignition switch is "ON", the system warning lamp also glows.
ALARM FUNCTION (Ignition switch "ON")
When time control unit output for E.L.R. solenoid is off and the input from door latch switch is on, the warning lamp will flash and the buzzer will operate for 6 seconds when the ignition switch is turned on and the door is closed.
