Without Scan Tool

USING THE WARNING LAMP

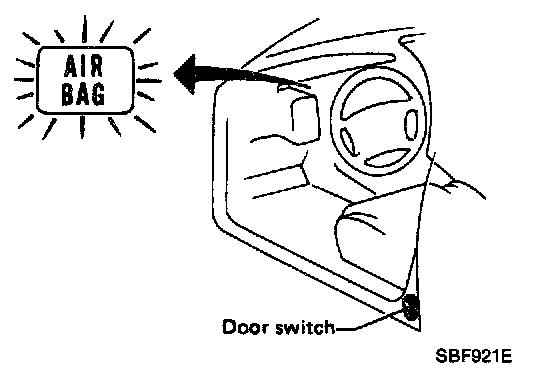

Self-diagnosis results can be also read by using the "AIR BAG" warning lamp.

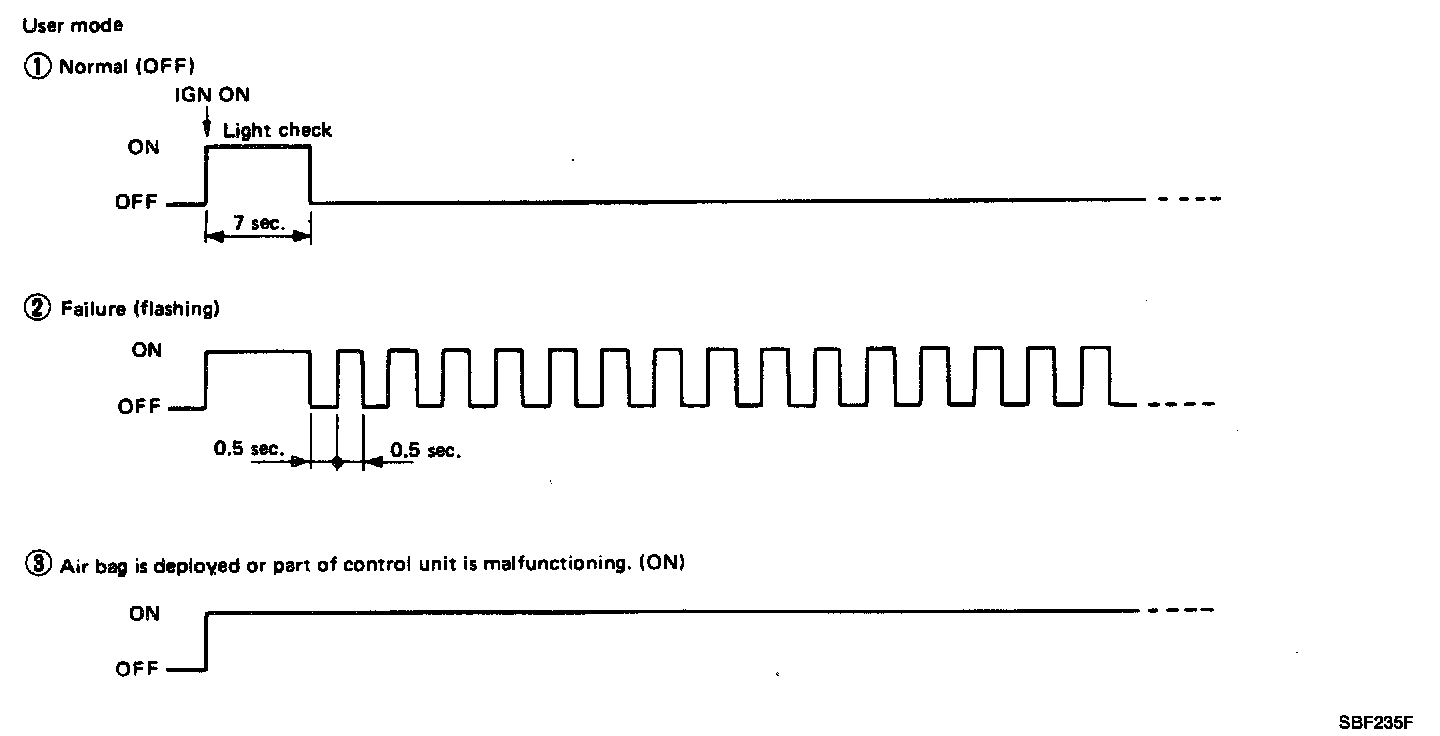

The "Air bag" warning lamp operates as shown below:

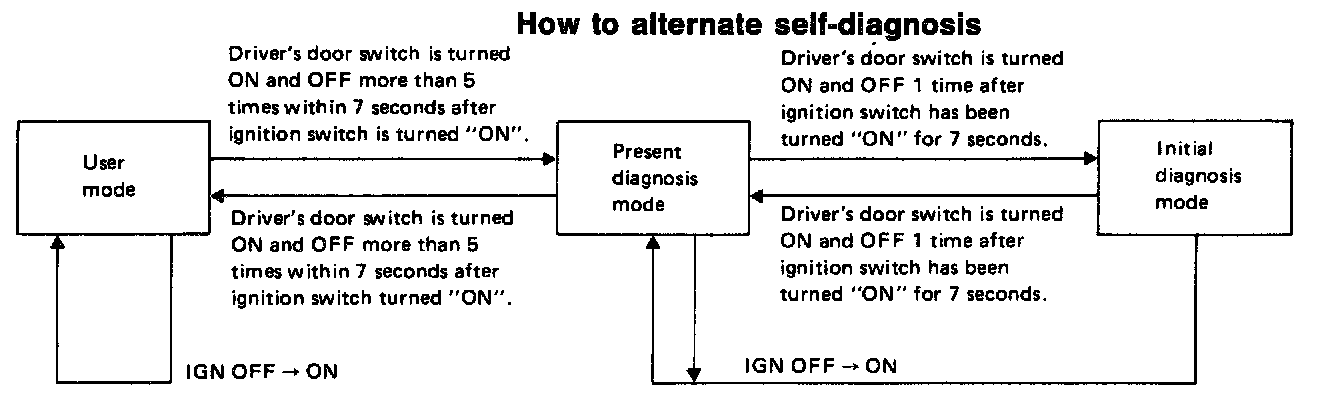

How To Alternate Self-Diagnosis

Problem codes are displayed in present diagnosis mode (self-diagnosis result 1). The problem code last indicated is displayed in initial diagnosis mode (self-diagnosis result 2).

After the malfunctioning parts have been repaired and the system is returned to the user mode, the present diagnosis mode information, displayed as self-diagnosis results, is automatically cleared from memory.
- After repairing malfunctioning part, attempt to clear self-diagnosis results from memory.
- If a malfunctioning part Is not completely repaired, information stored in memory will not be cleared.

USER MODE:

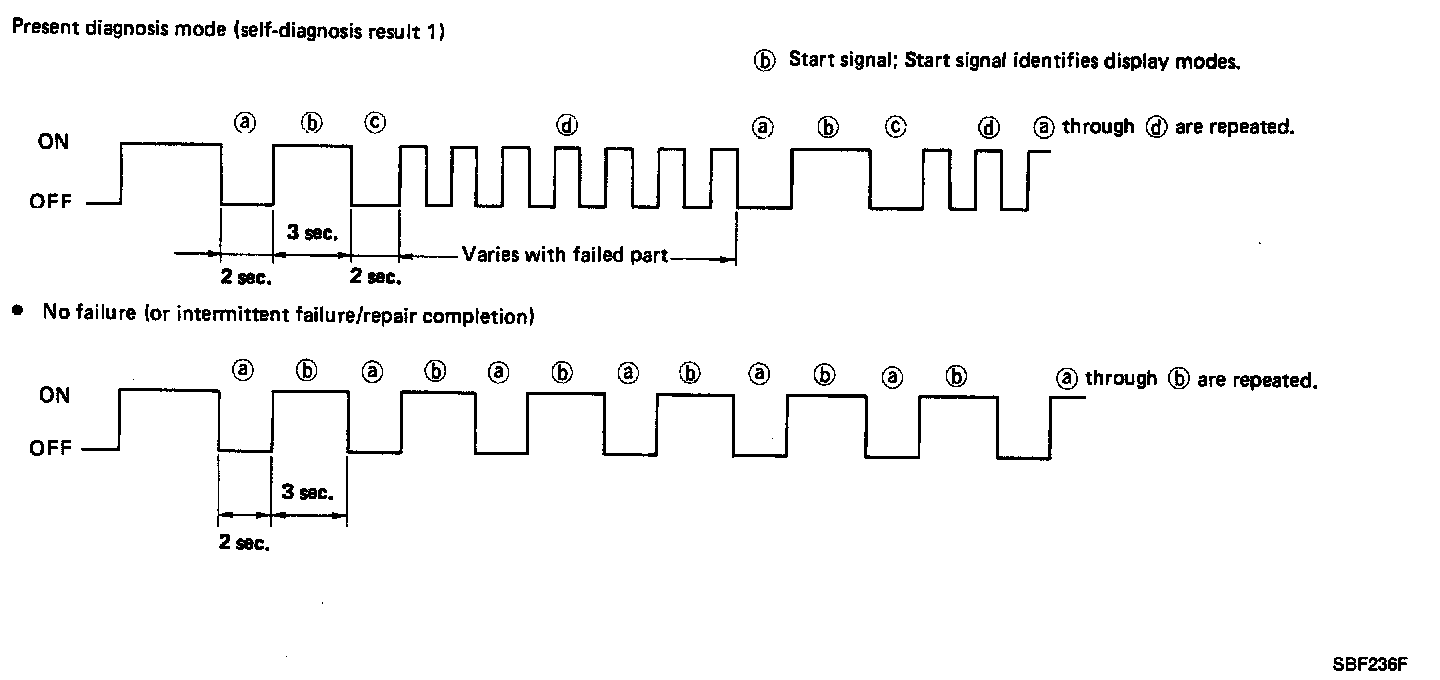

PRESENT DIAGNOSIS MODE:

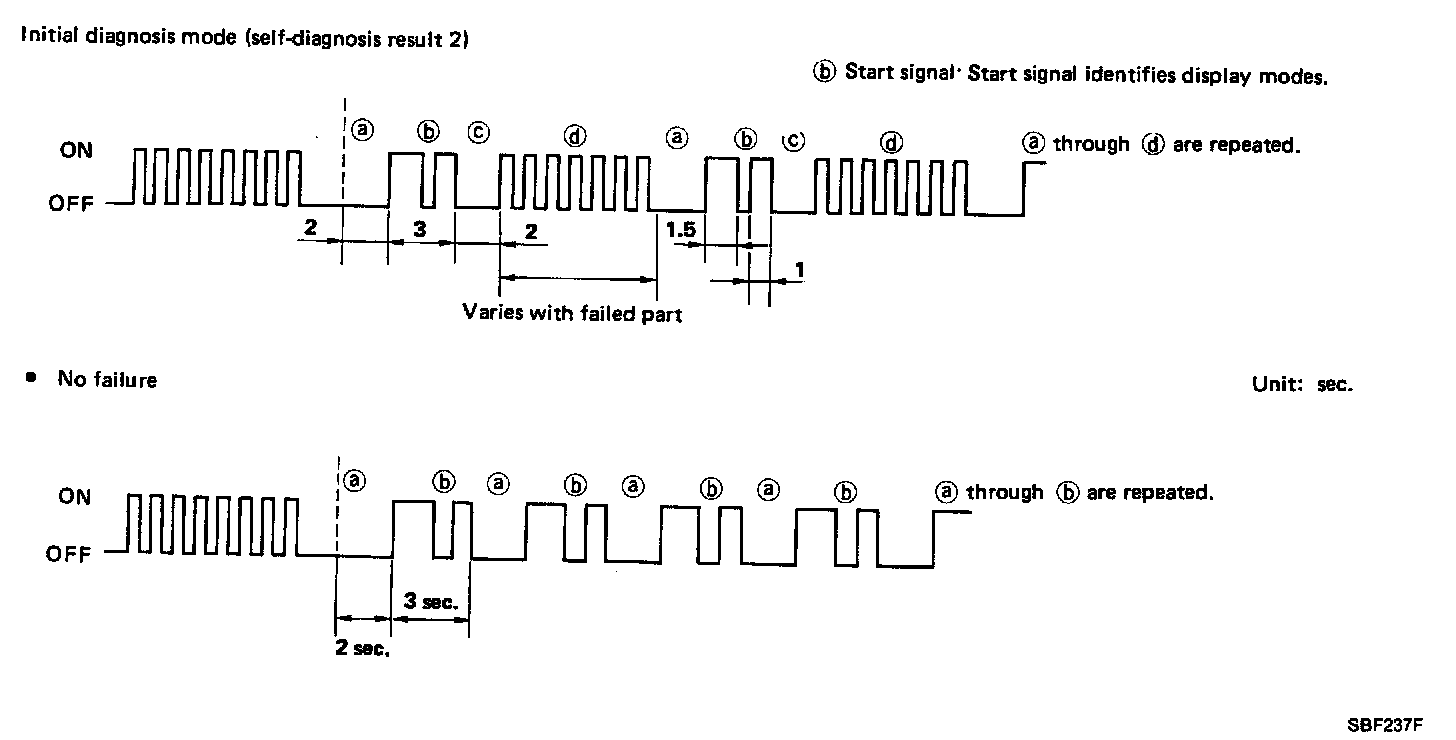

INITIAL DIAGNOSIS MODE:

Self-diagnosis results in present- and initial-diagnosis modes can be identified by number of flashes (d). Refer to Table below for failed parts.

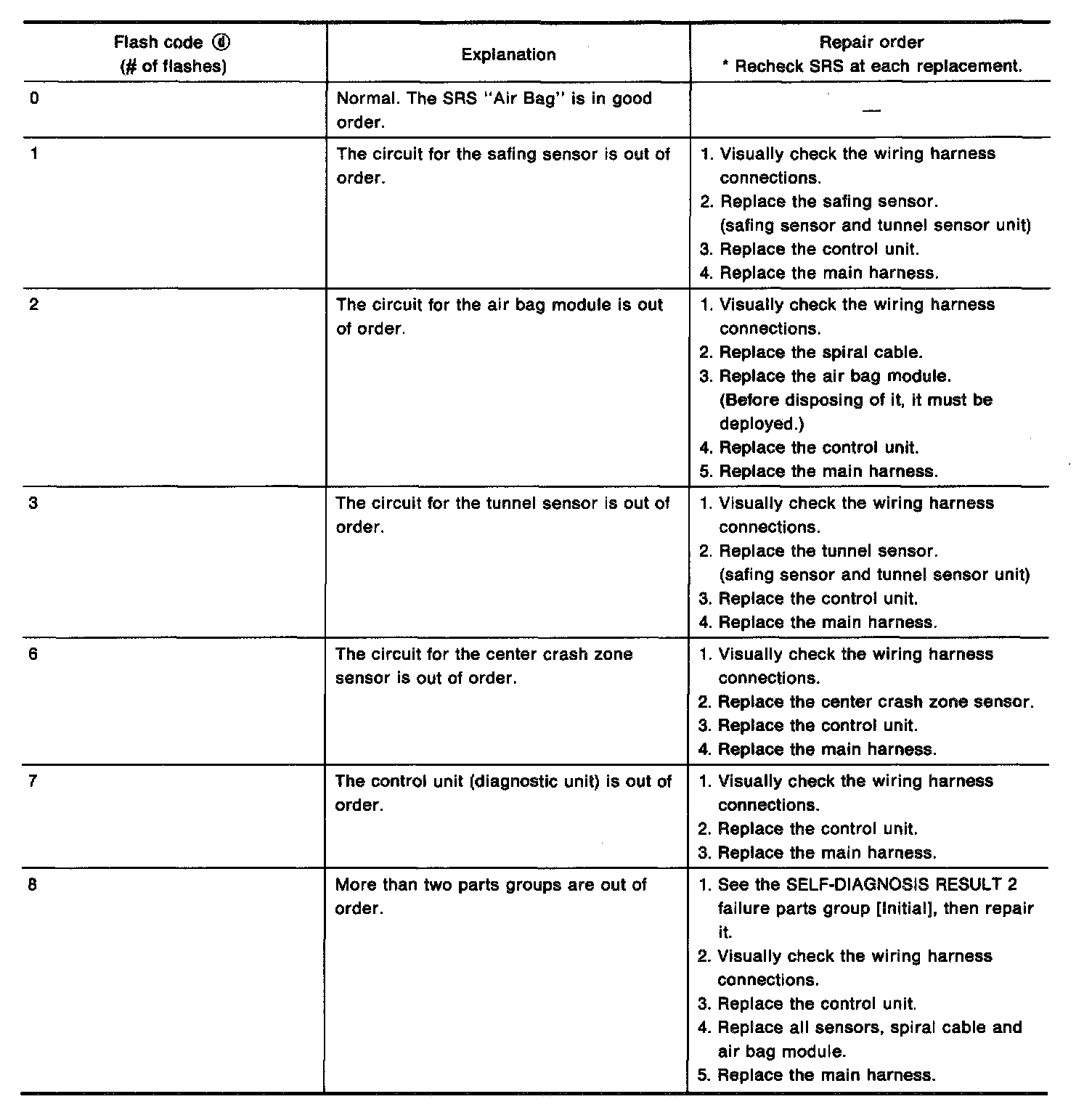

Warning Lamp Flashing Times And Repair
