Component Locations

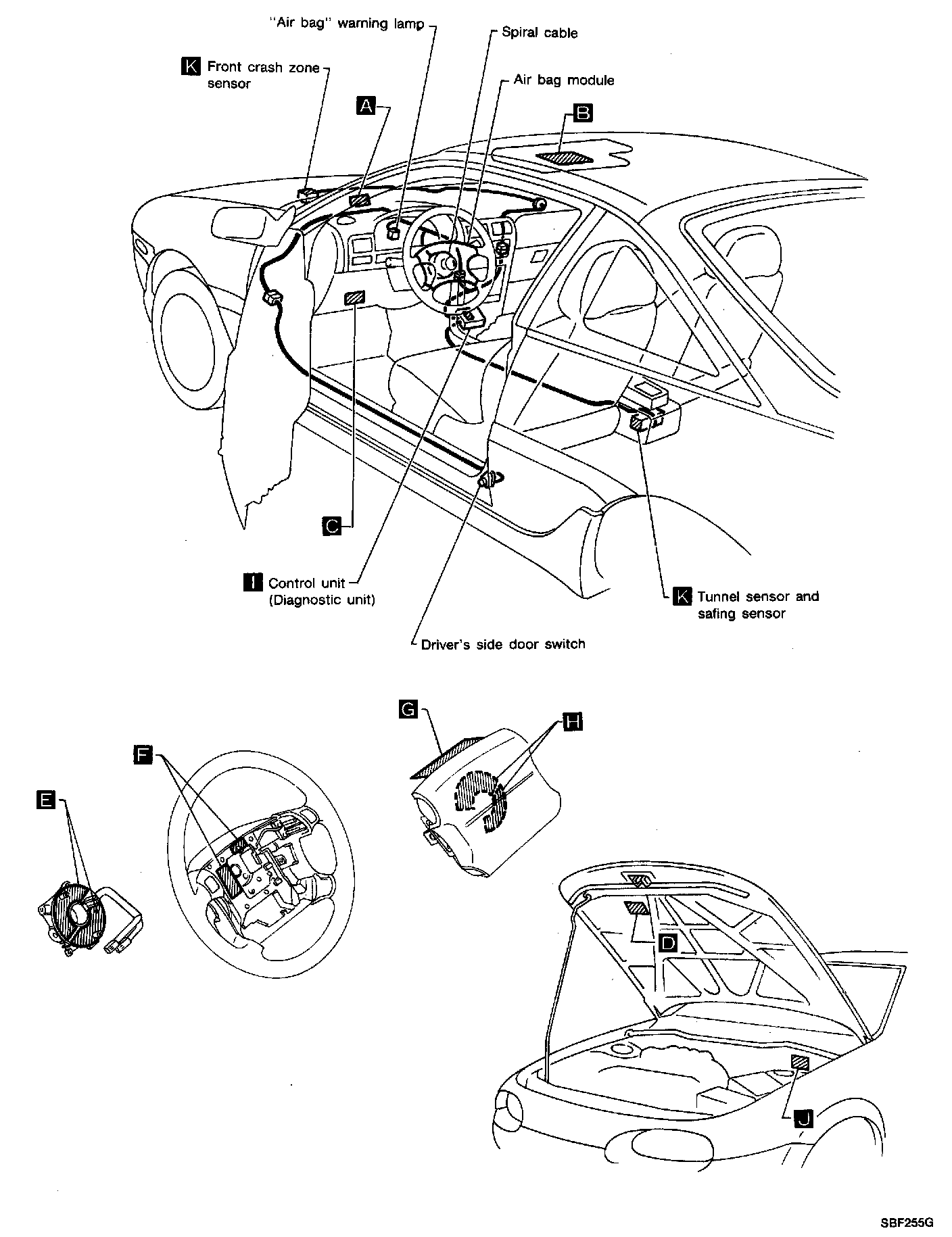

SRS Component Parts Location

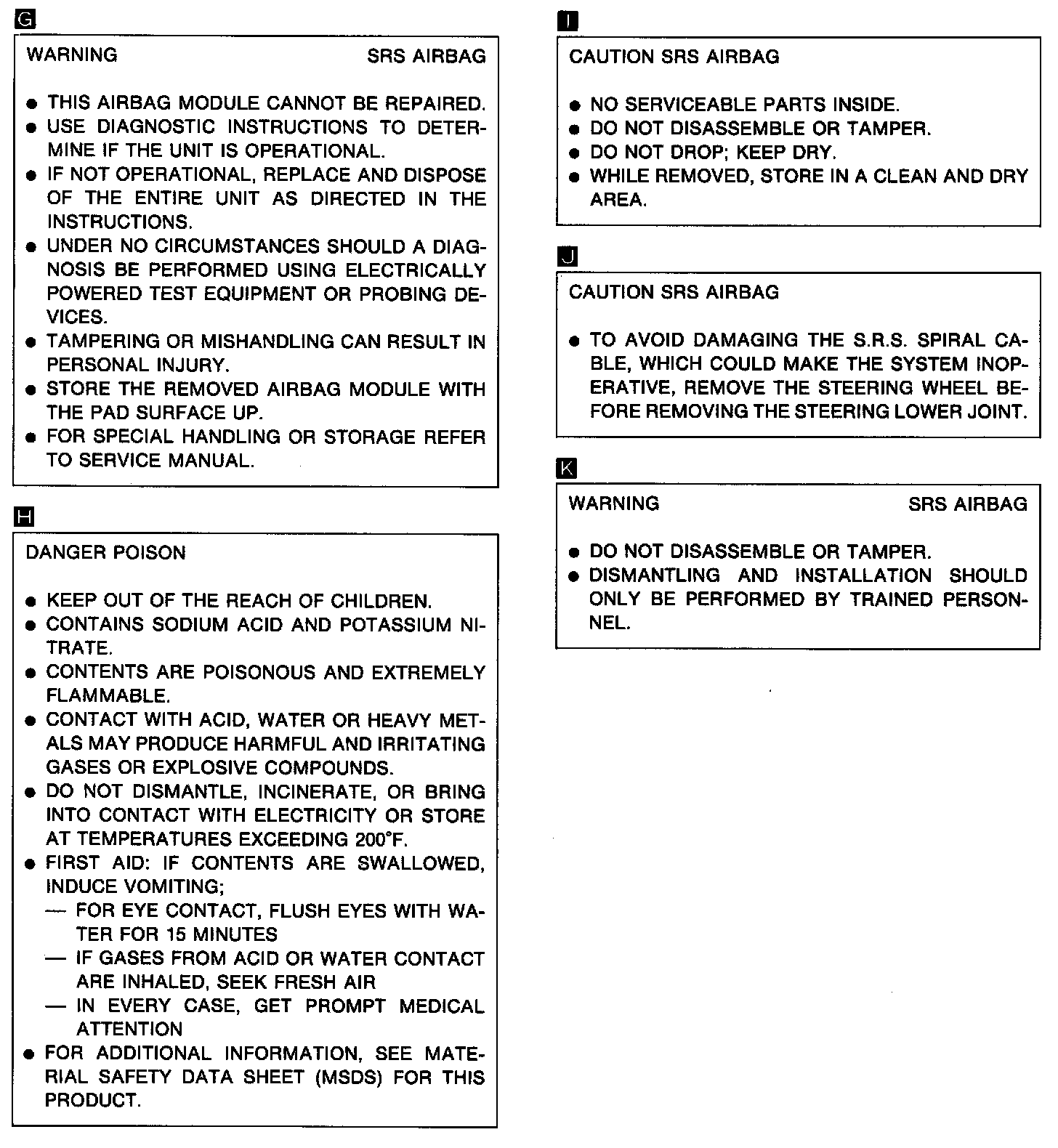

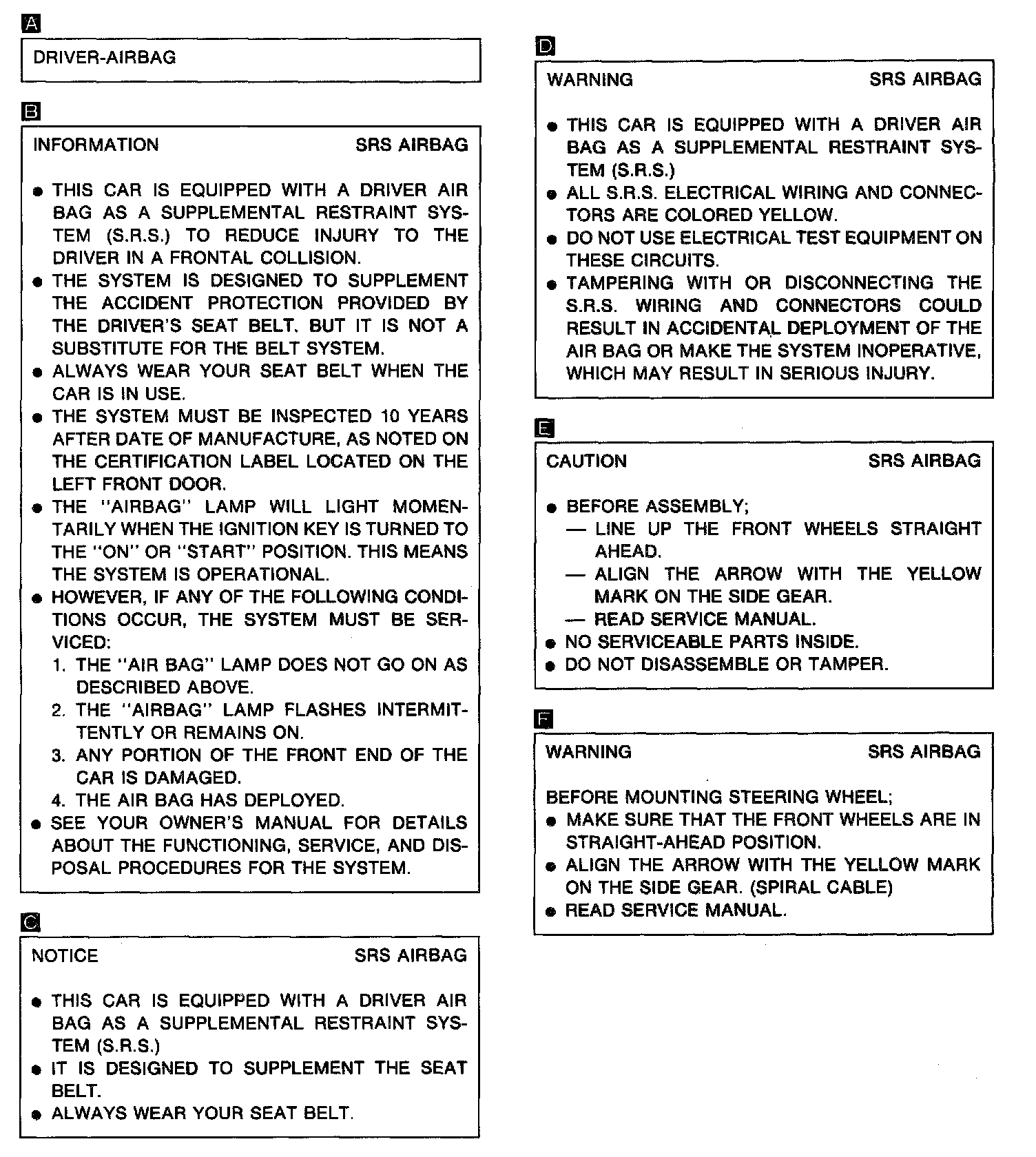

Caution Labels
The CAUTION LABELS are important when servicing air bags in the field. If they are dirty or damaged, replace them with new ones.
