Valve Timing Control Circuit

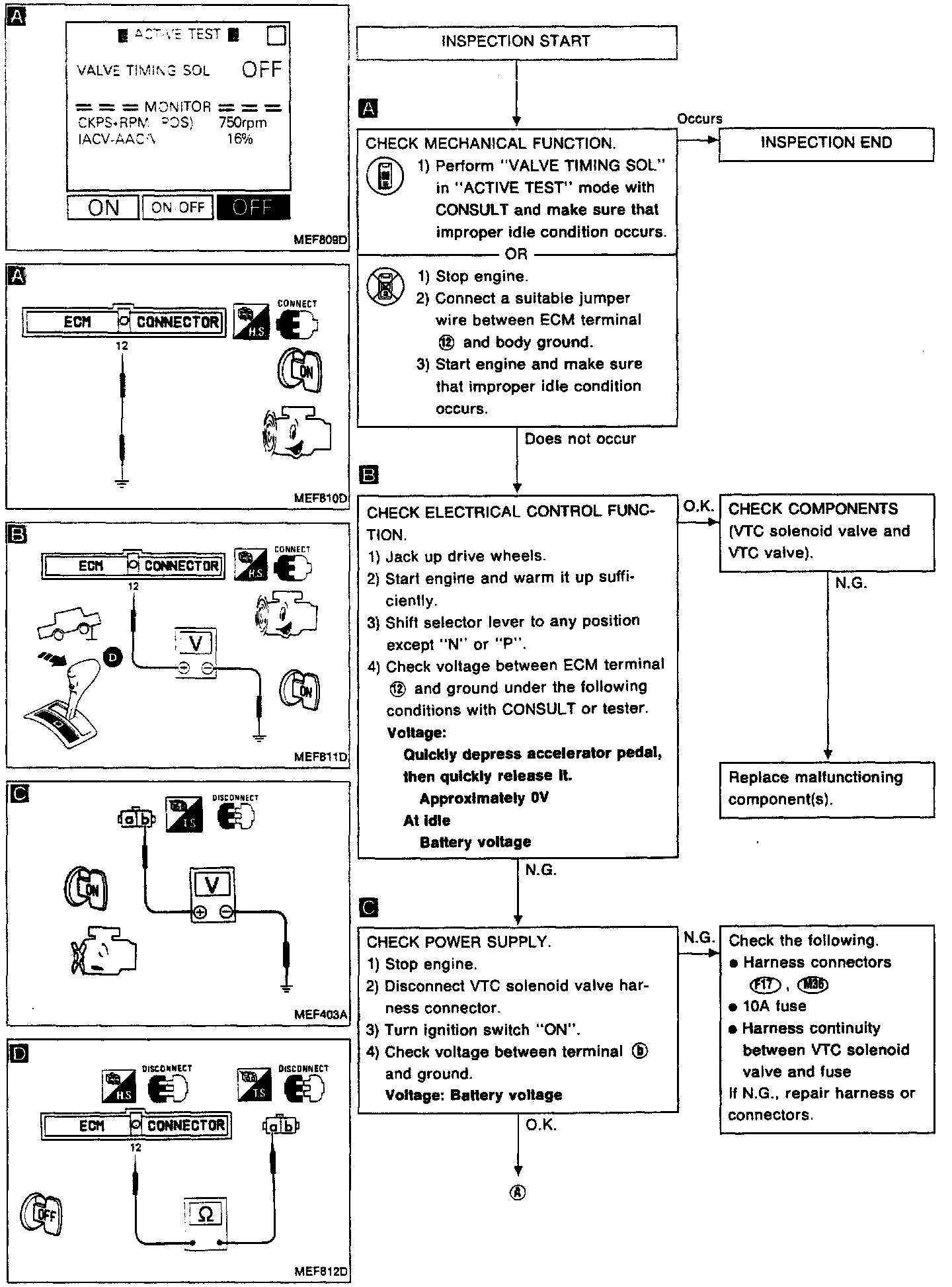

Valve Timing Control Solenoid Diagnostic Chart:

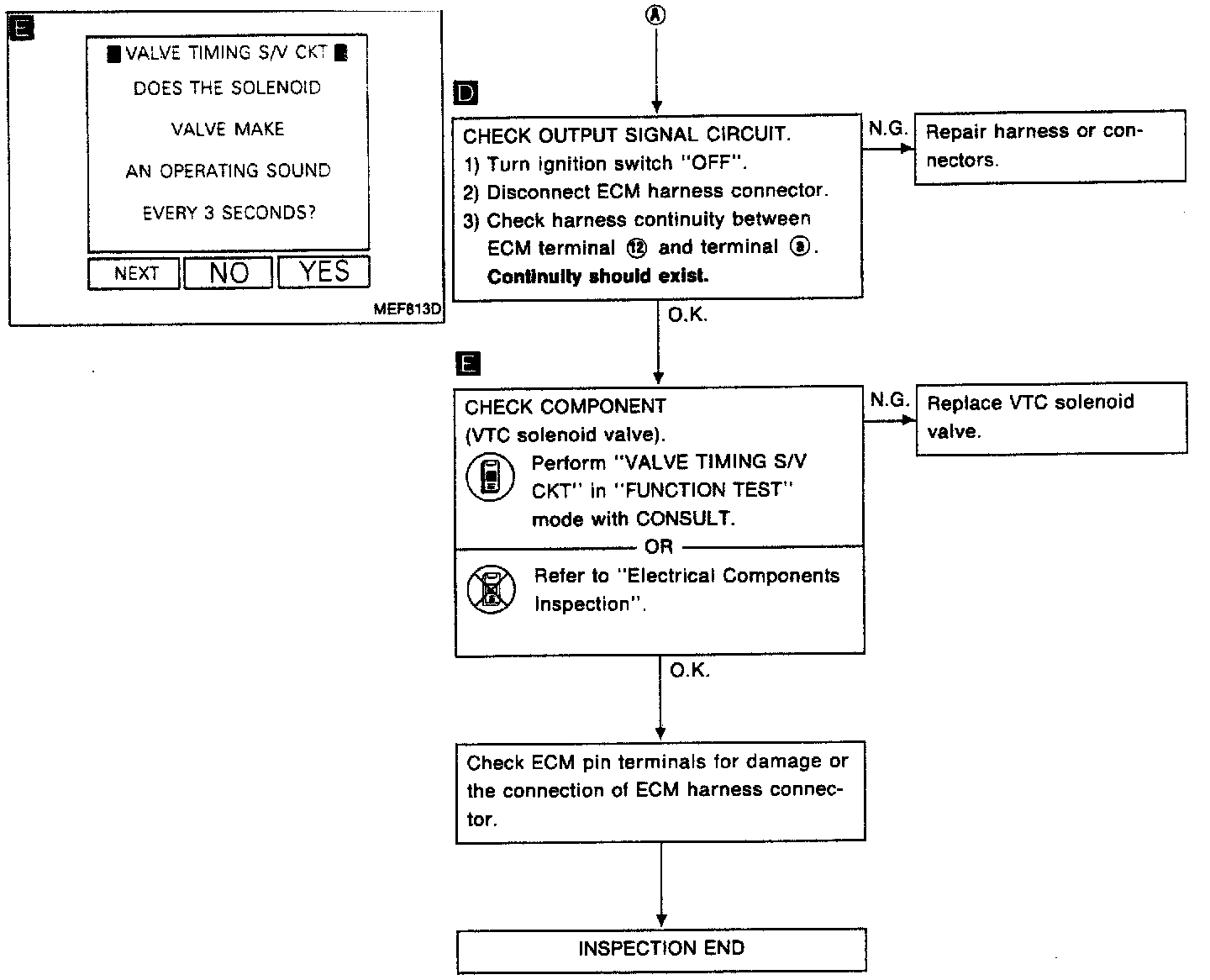

Valve Timing Control Solenoid Diagnostic Chart:

DIAGNOSTIC CHART IMAGE

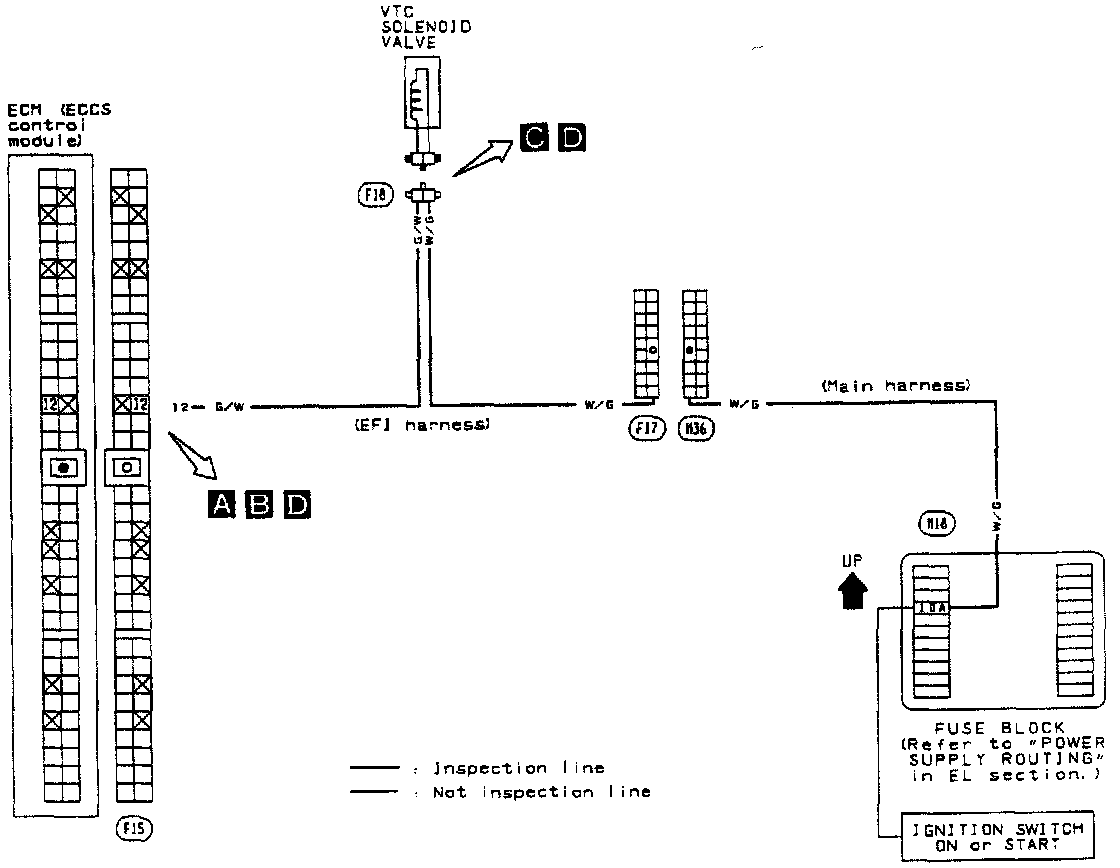

Valve Timing Control Solenoid Circuit:

CIRCUIT DIAGRAM IMAGE

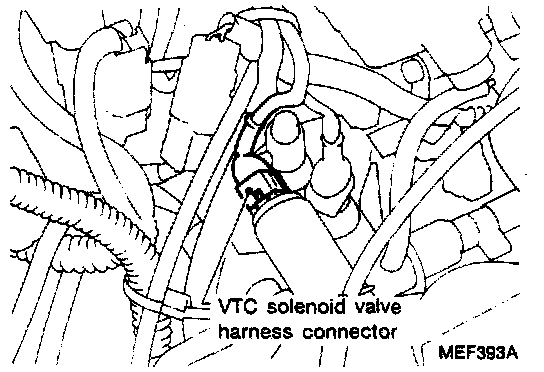

Valve Timing Control Solenoid Connector Location:

CONNECTOR LOCATION IMAGE
