A/T Only

Radiator Fan Control Diagnostic Chart:

Radiator Fan Control Diagnostic Chart:

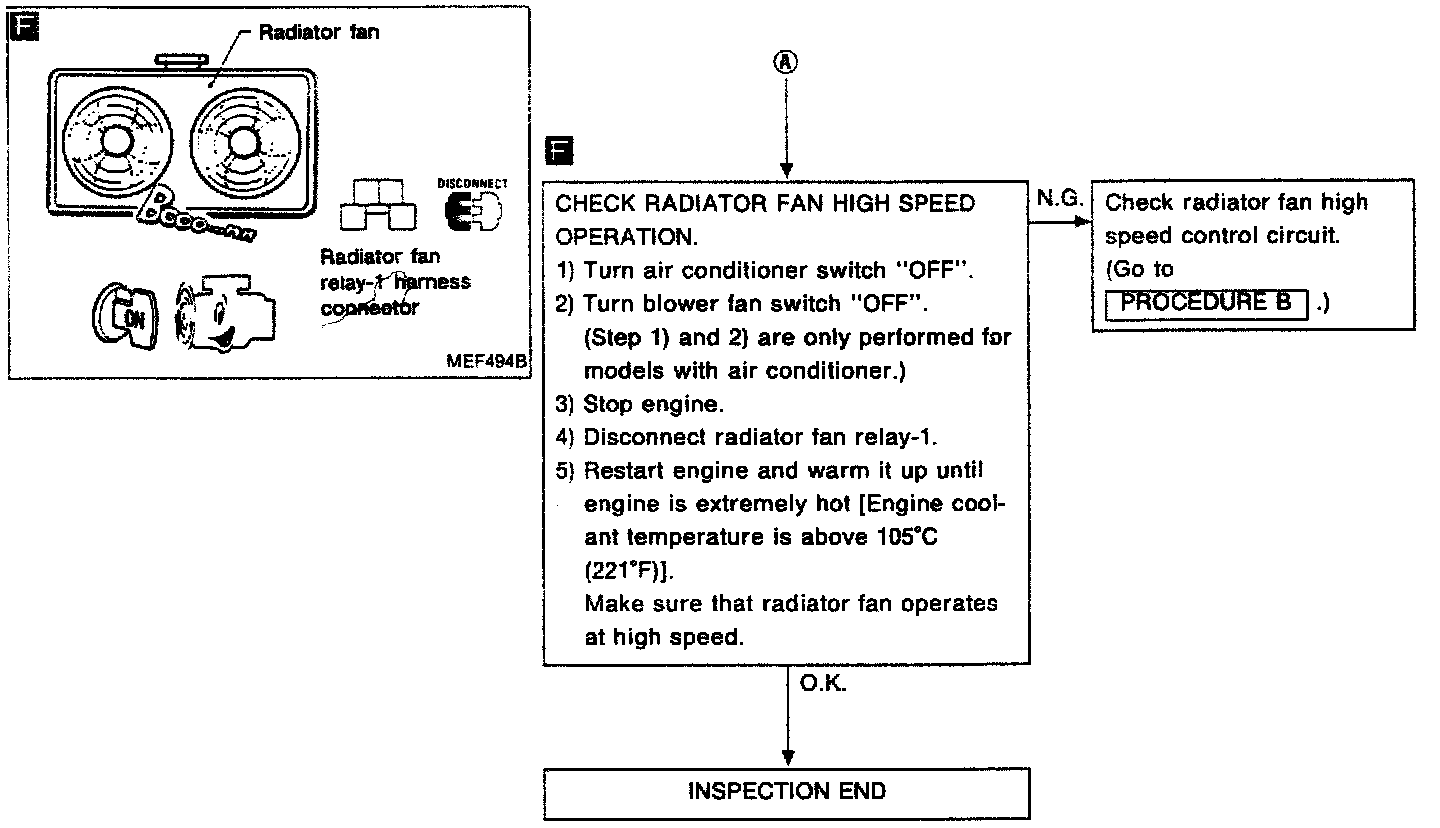

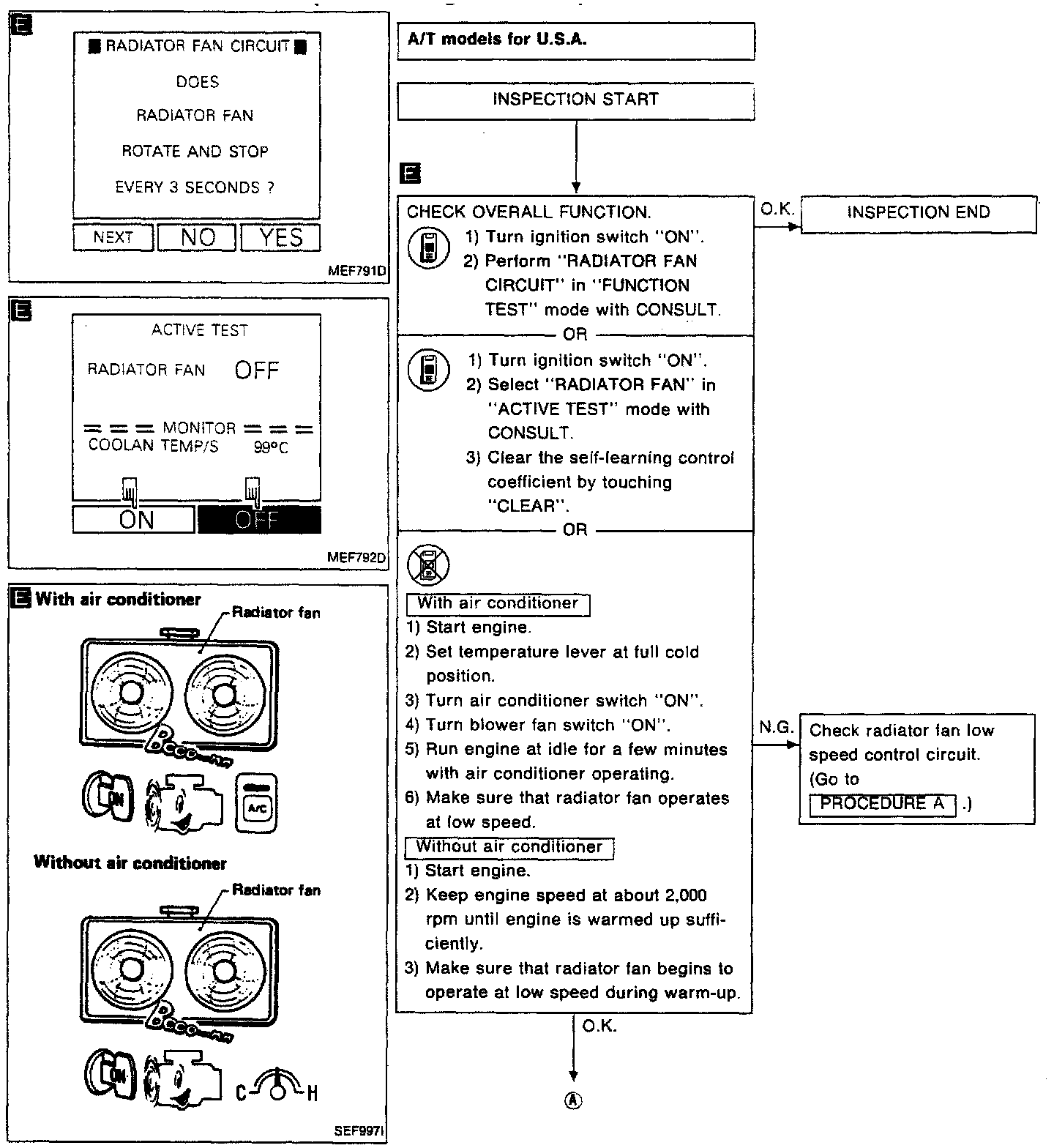

DIAGNOSTIC CHART IMAGE

Radiator Fan Control Diagnostic Chart:

Radiator Fan Control Diagnostic Chart:

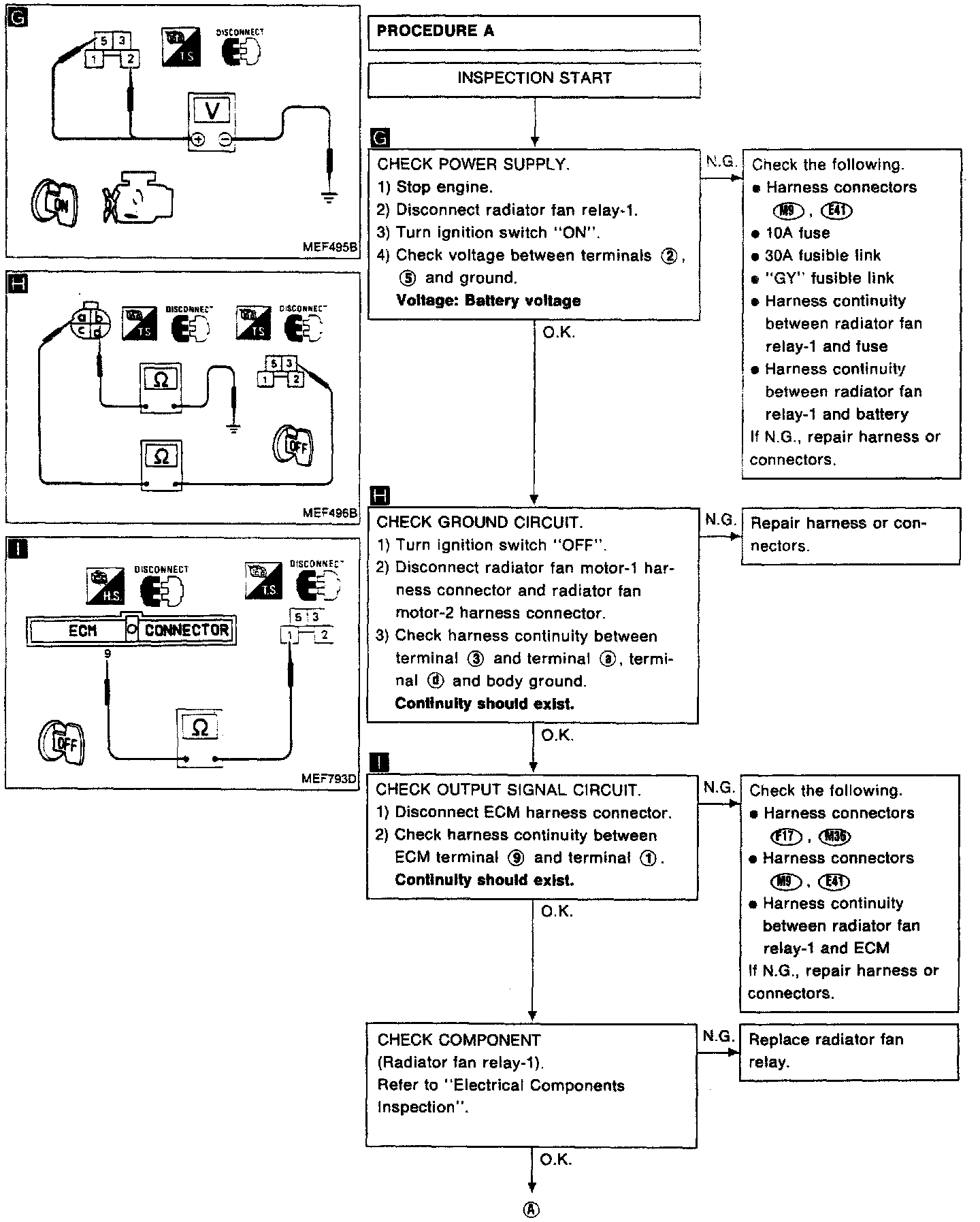

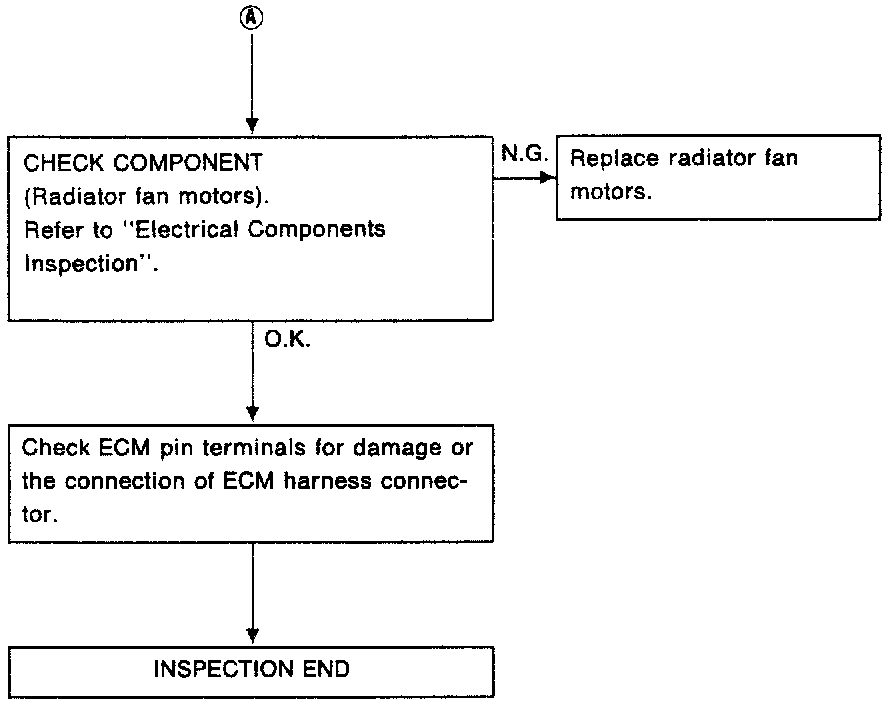

PROCEDURE "A" IMAGE

Radiator Fan Control Diagnostic Chart:

Radiator Fan Control Diagnostic Chart:

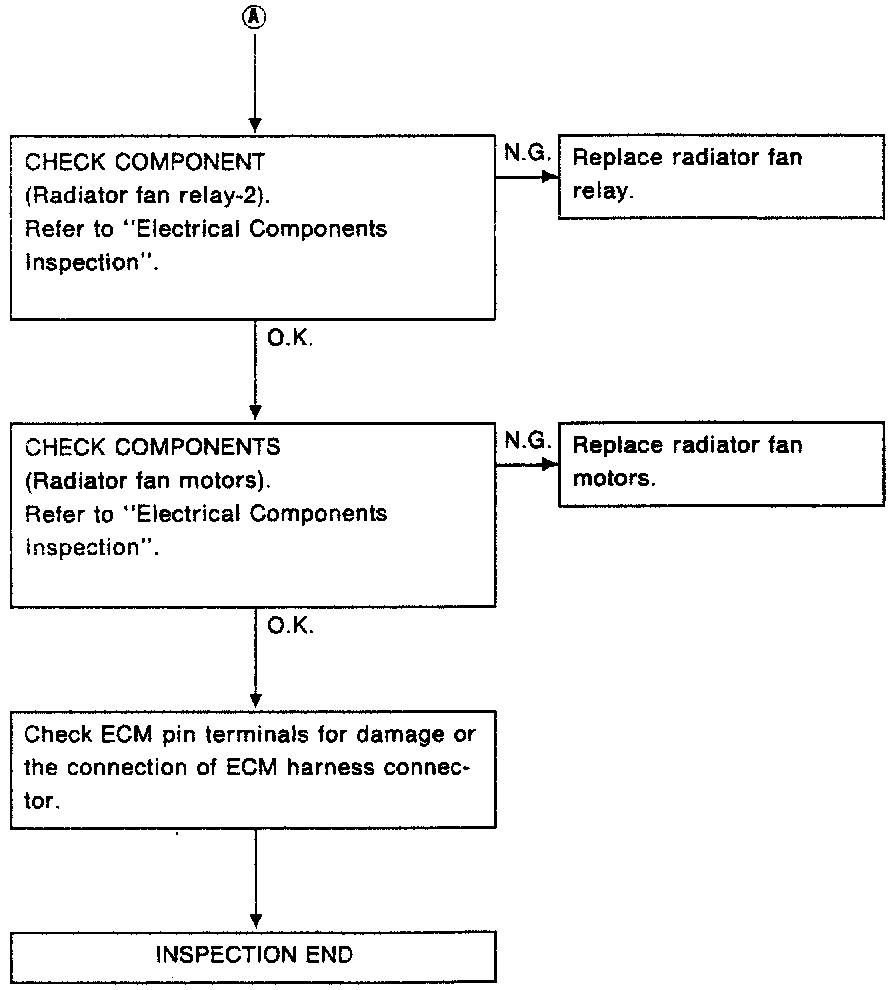

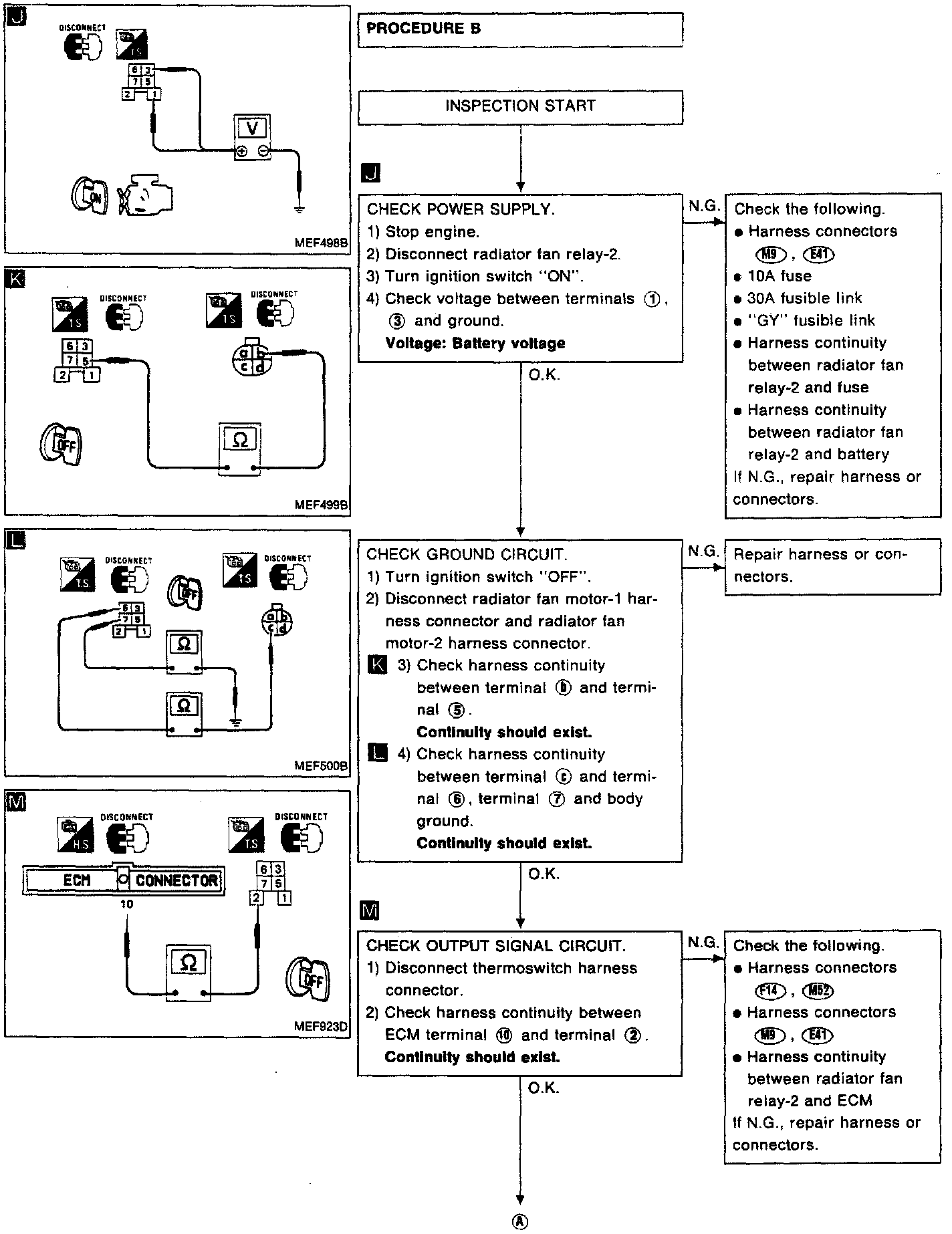

PROCEDURE "B" IMAGE

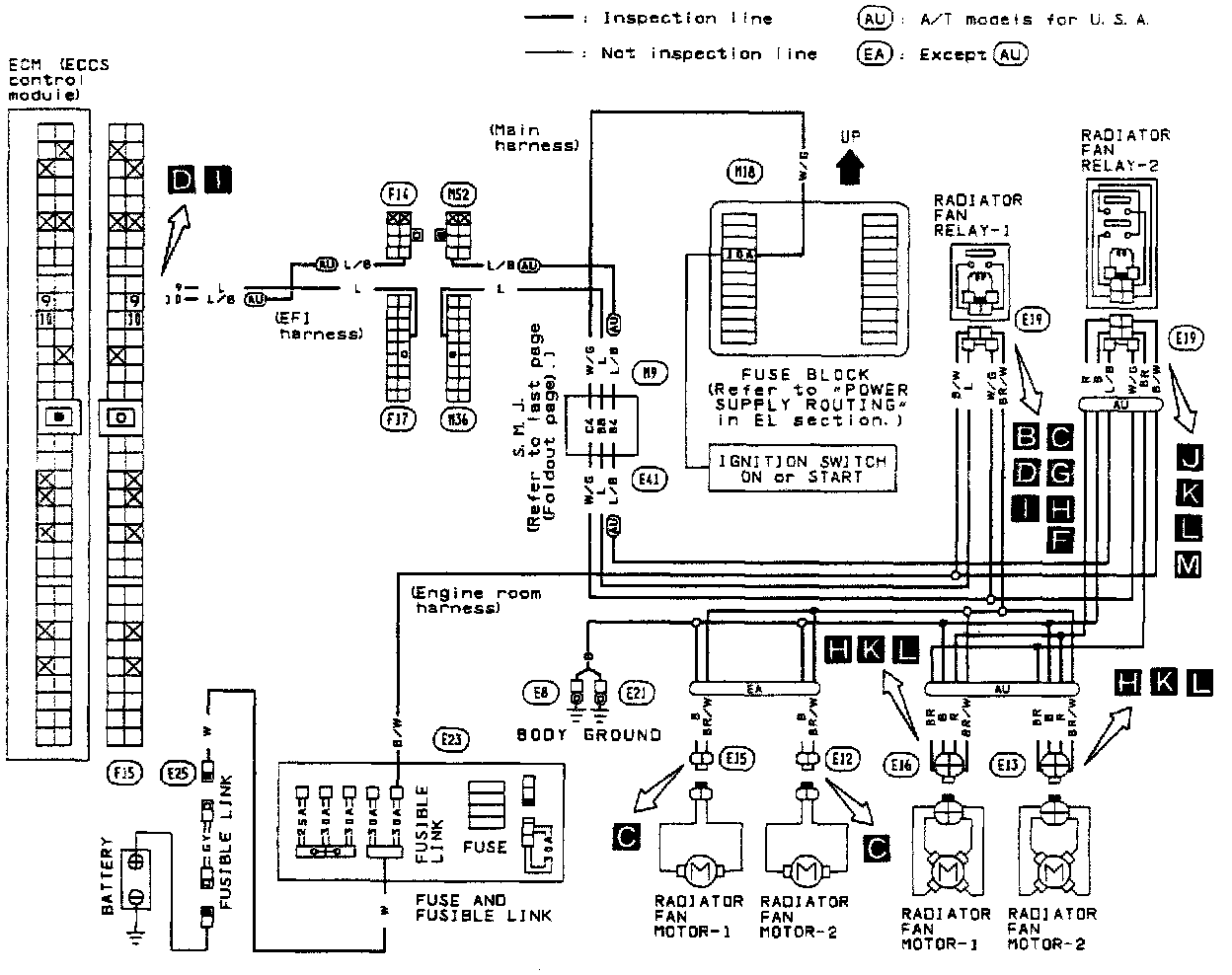

Radiator Fan Control Circuit:

CIRCUIT DIAGRAM IMAGE

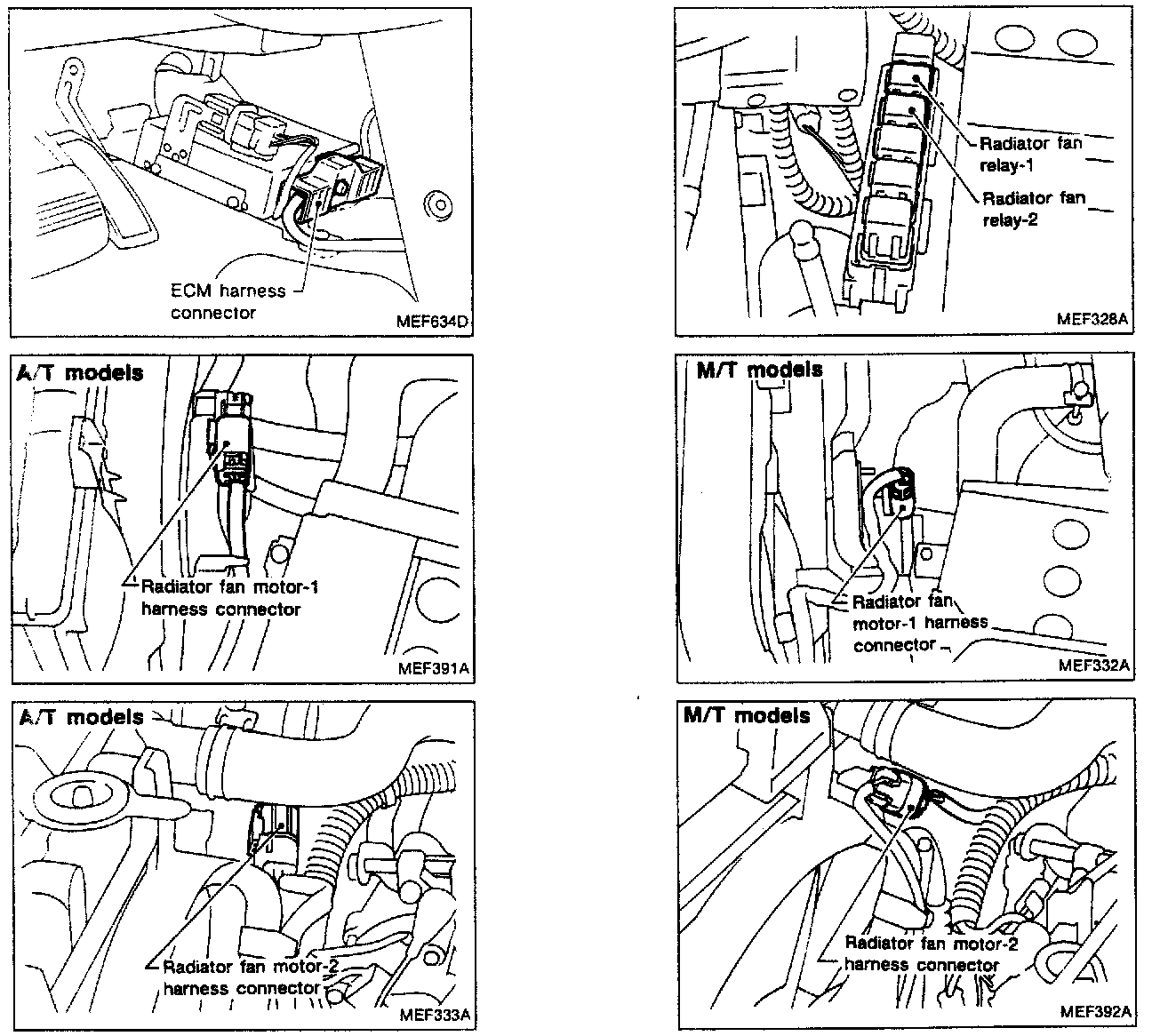

Radiator Fan Control Connector Location:

COMPONENT AND CONNECTOR LOCATION IMAGE

Thermoswitch Harness Connector:

THERMO SWITCH CONNECTOR LOCATION IMAGE
