Power Steering Oil Pressure Switch

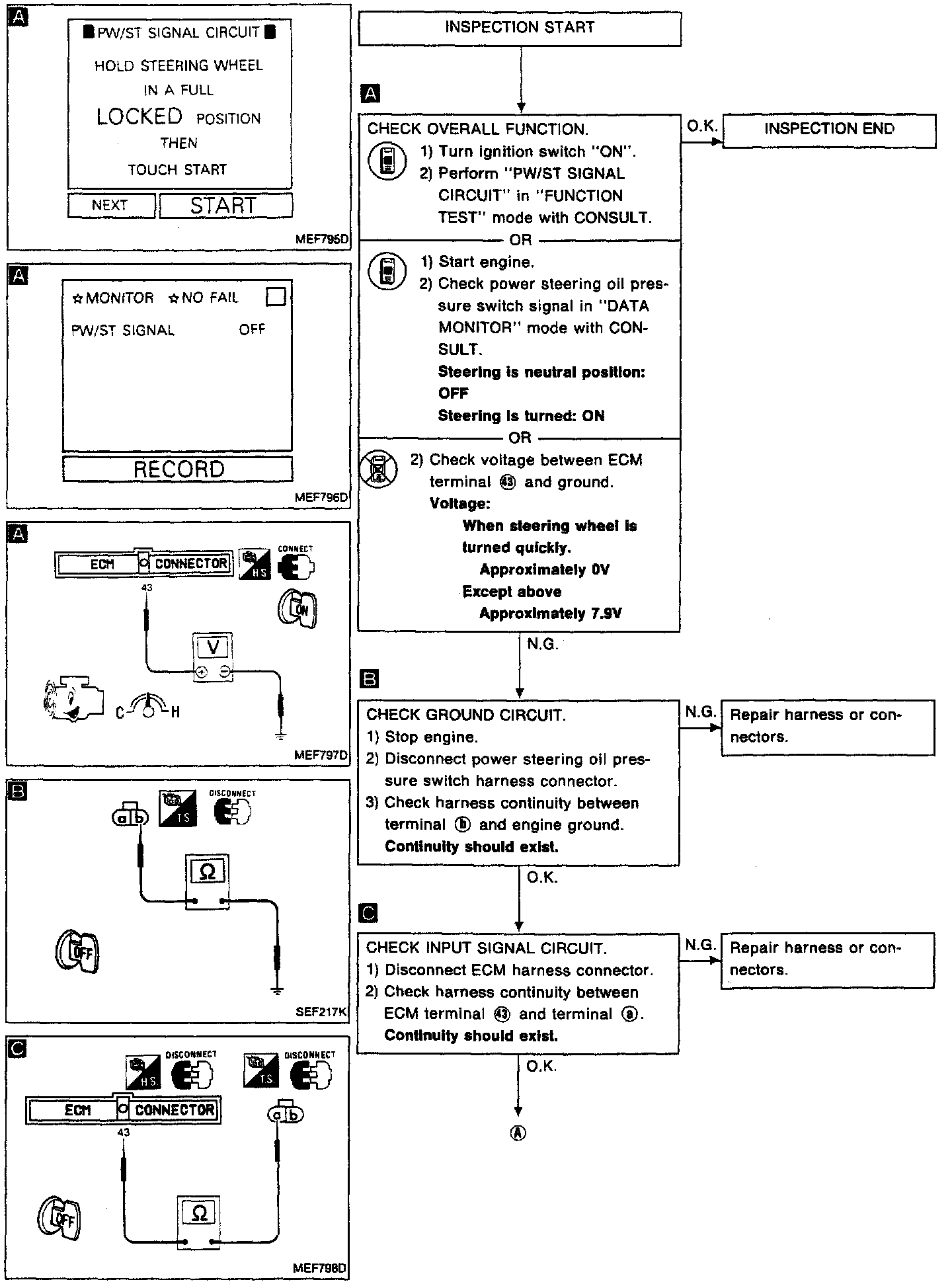

Power Steering Oil Pressure Switch Diagnostic Chart:

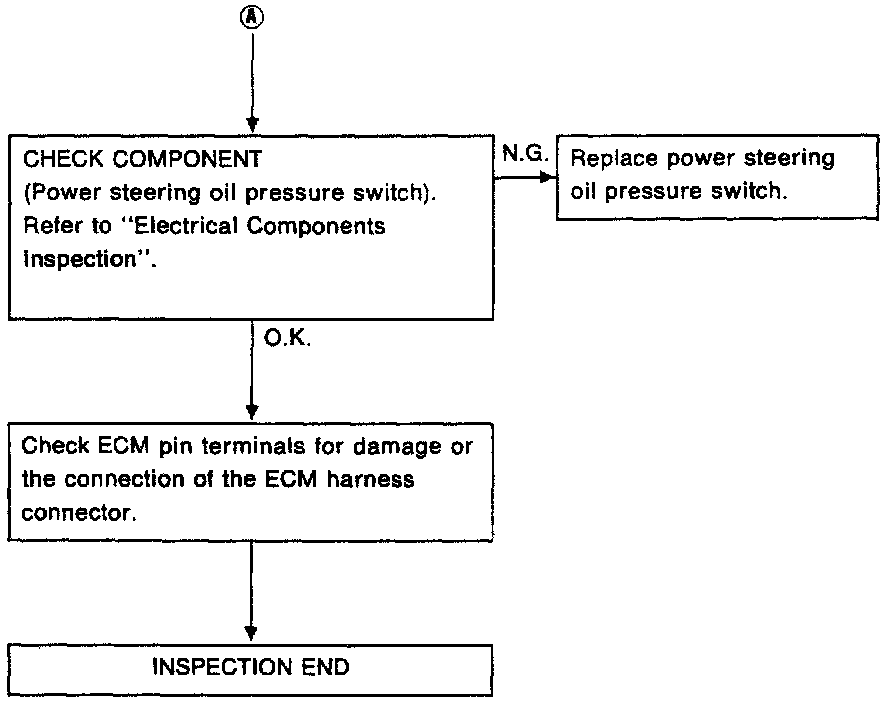

Power Steering Oil Pressure Switch Diagnostic Chart:





CIRCUIT TEST IMAGE

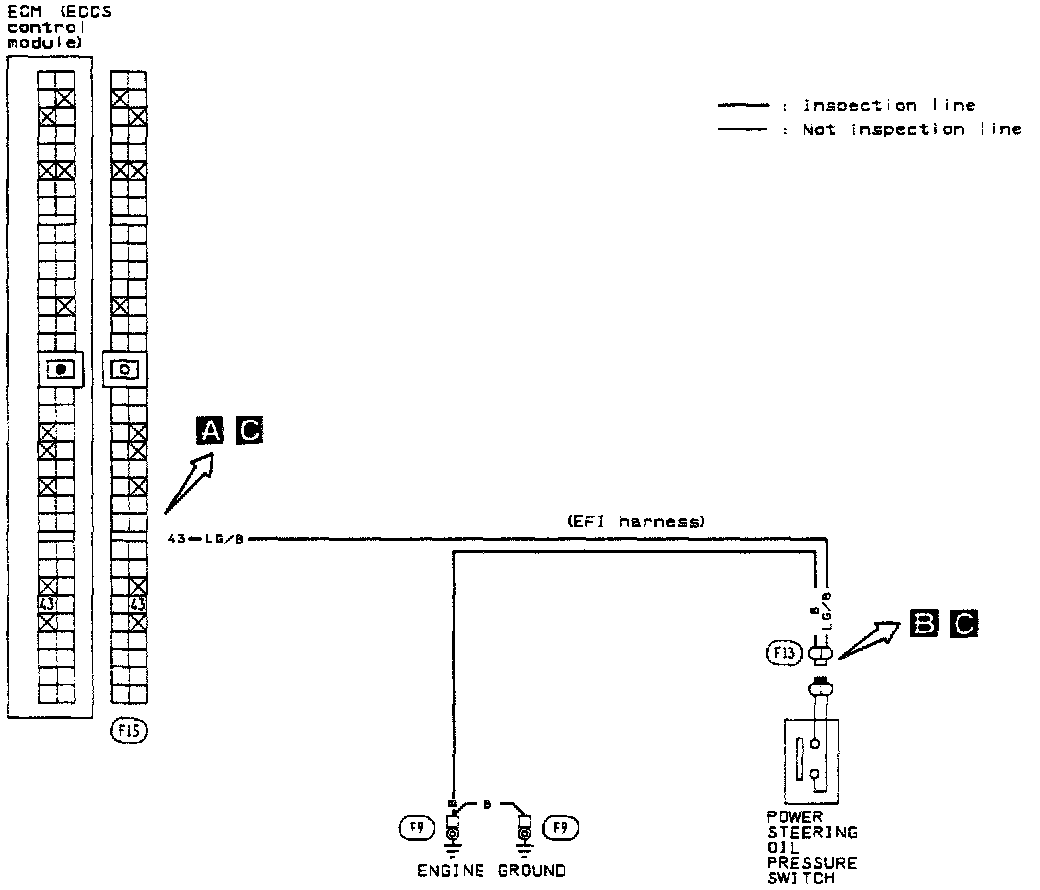

Power Steering Oil Pressure Switch Circuit:





CIRCUIT DIAGRAM IMAGE

Harness Connector:





CONNECTOR LOCATION IMAGE
