M/T Only

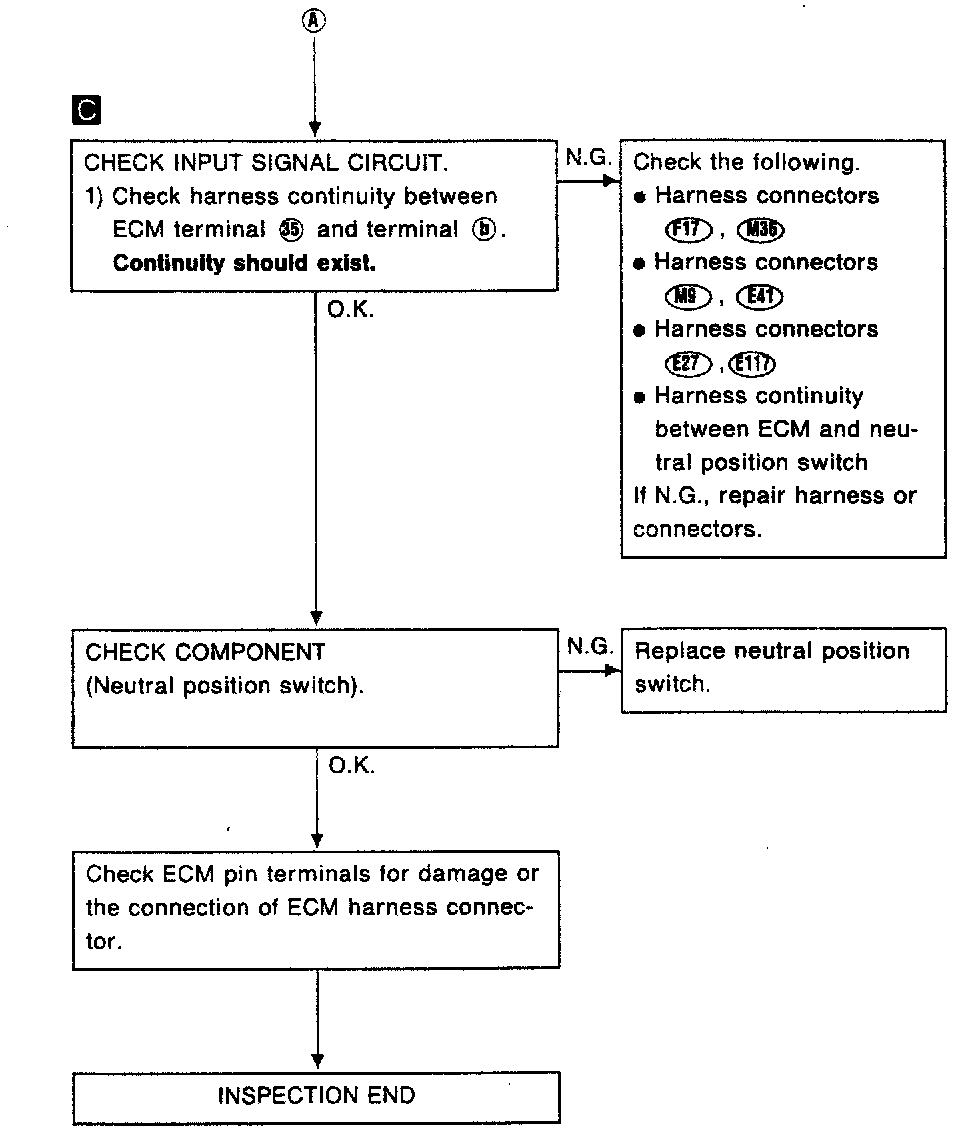

Neutral Position / Inhibitor Switch Diagnostic Chart:

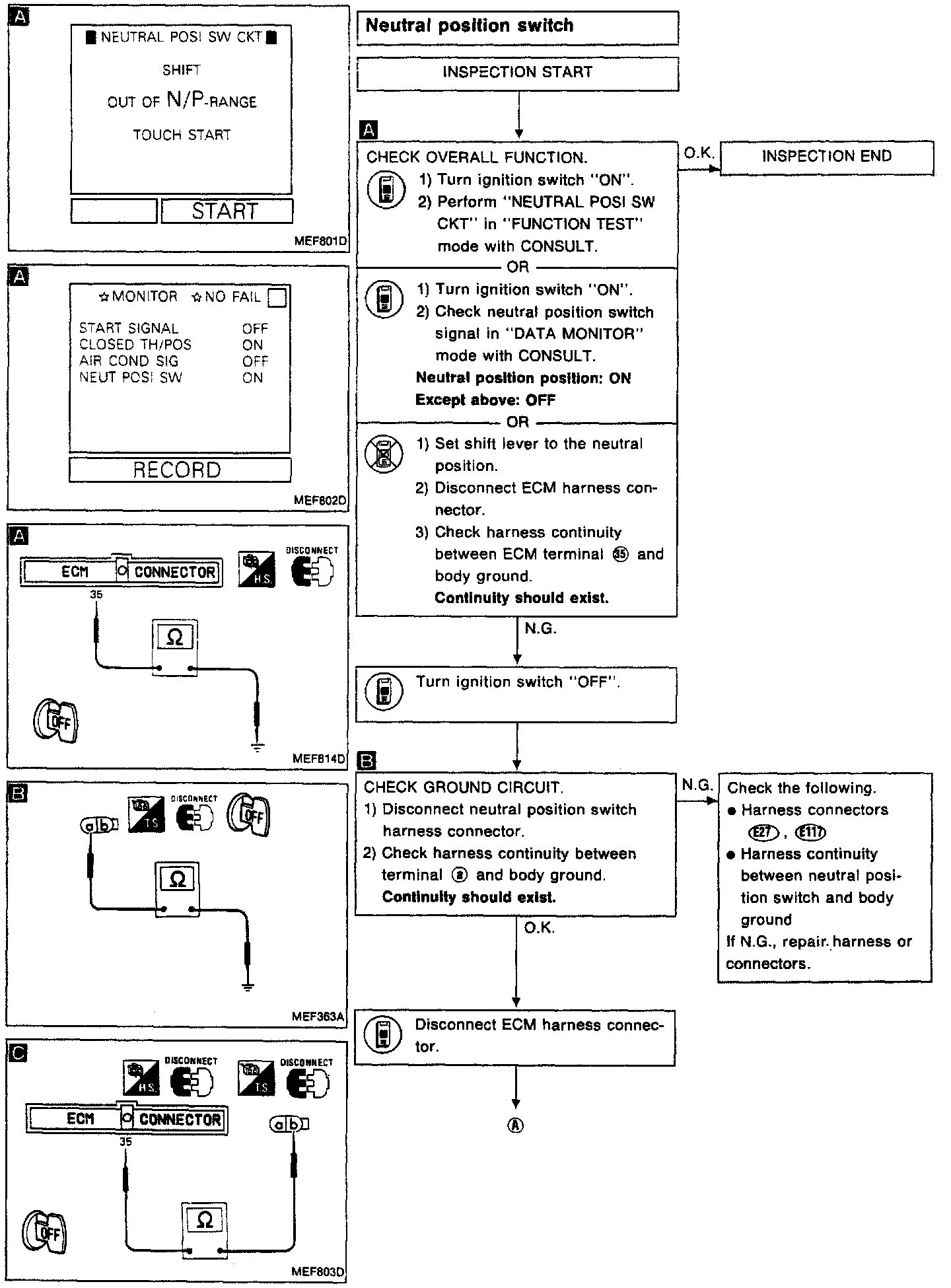

Neutral Position / Inhibitor Switch Diagnostic Chart:





CIRCUIT TEST IMAGE

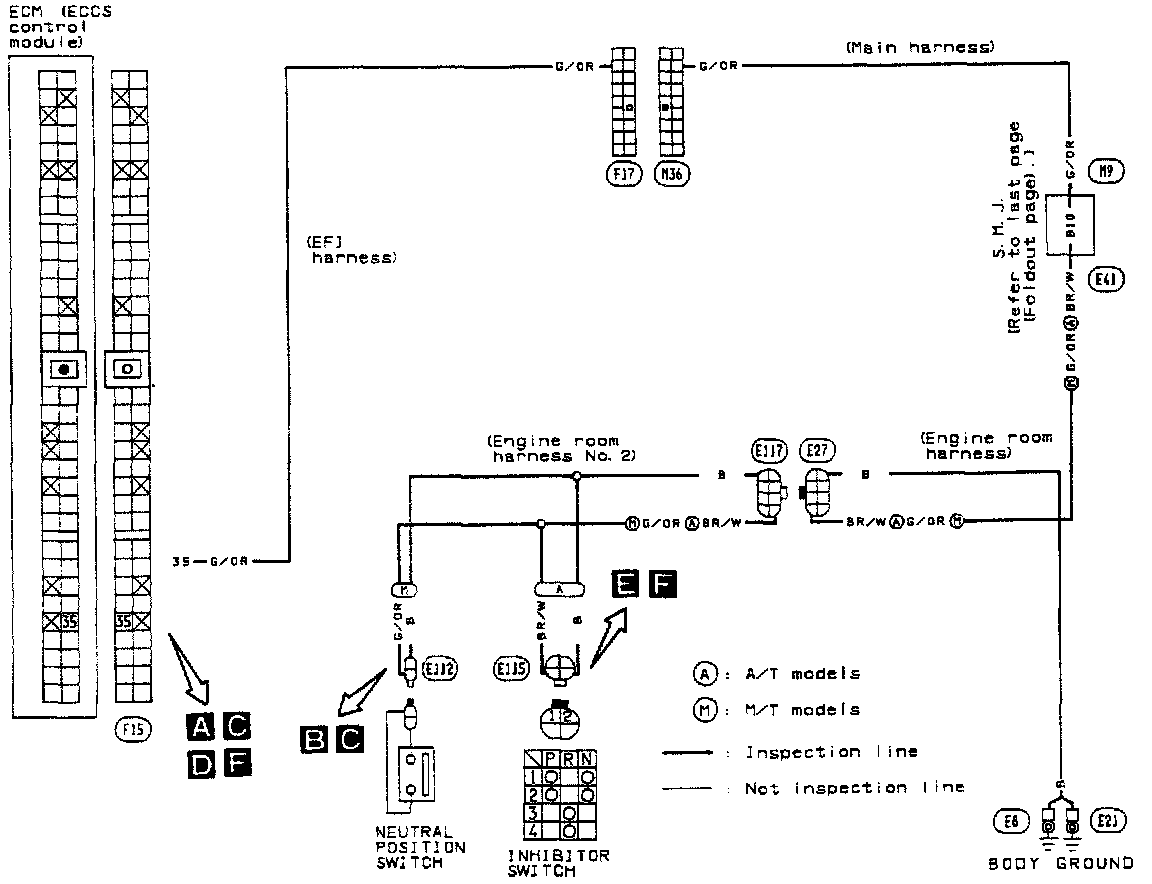

Neutral Position / Inhibitor Switch Circuit:





CIRCUIT DIAGRAM IMAGE

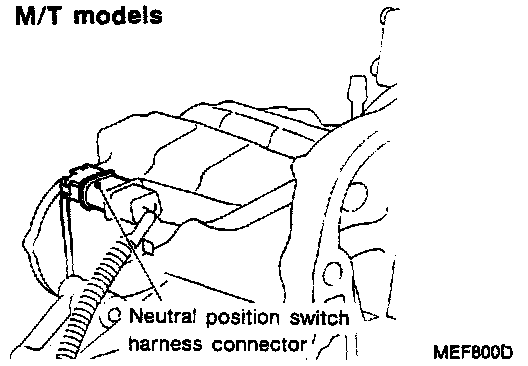

Neutral Position Switch Connector Location:





CONNECTOR LOCATION IMAGE
