Inhibitor Switch Circuit

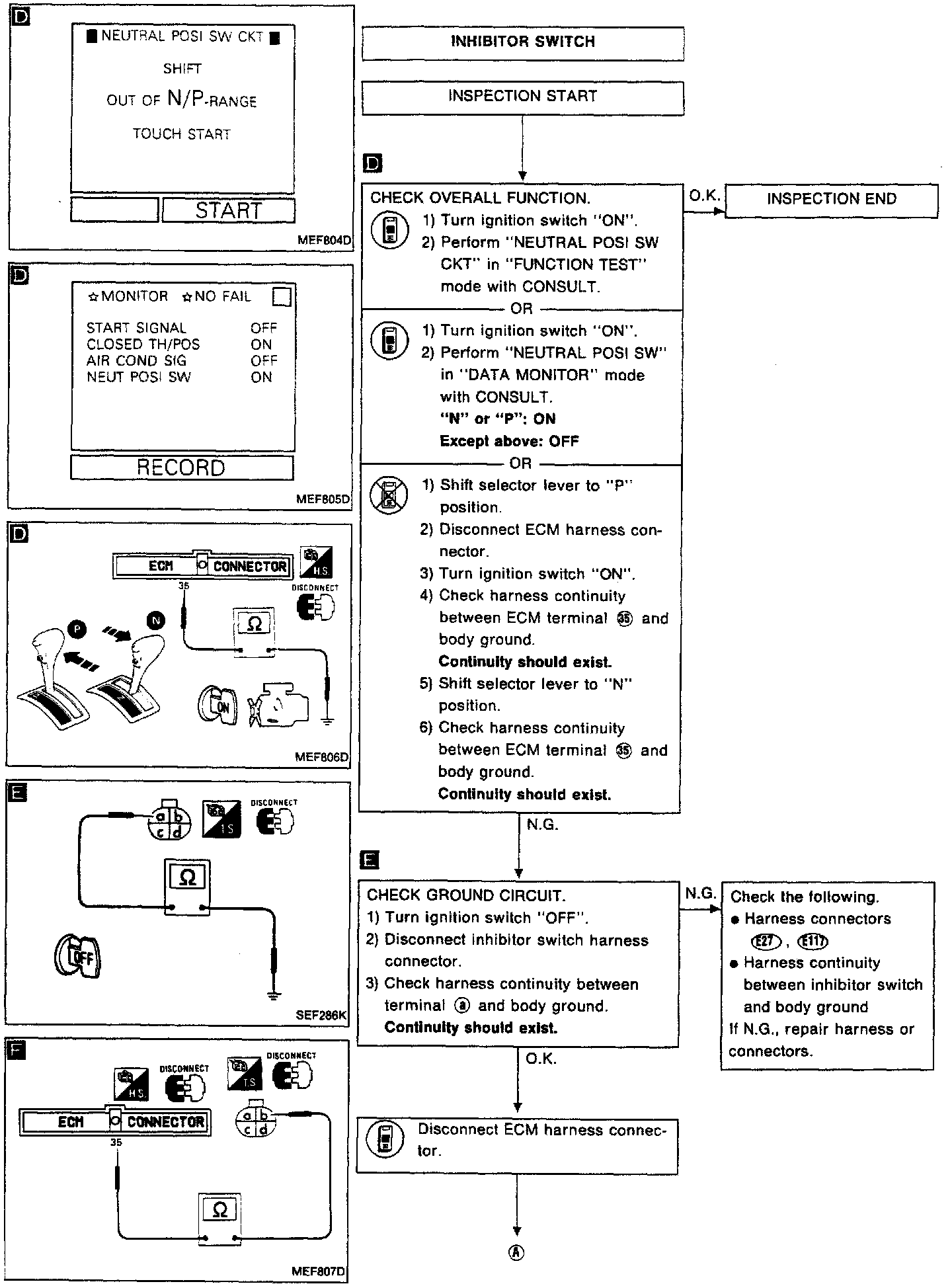

Neutral Position / Inhibitor Switch Diagnostic Chart:

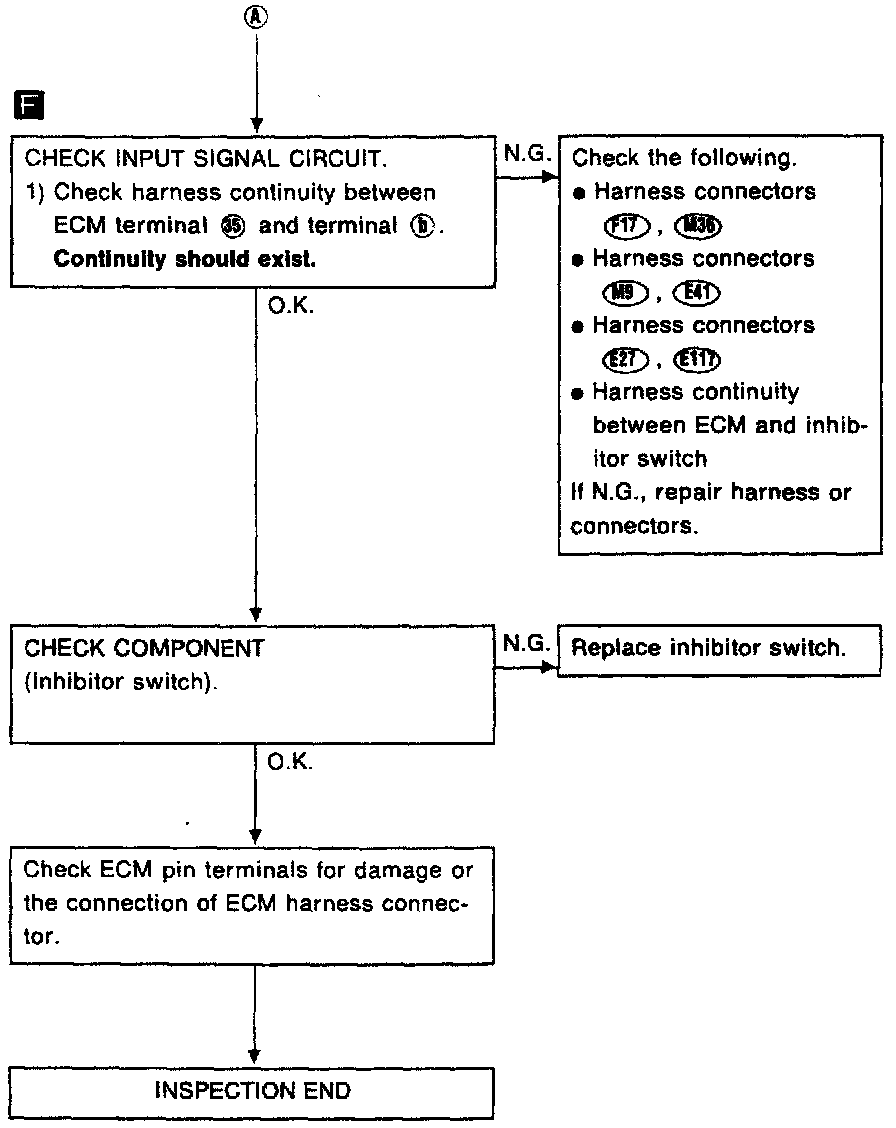

Neutral Position / Inhibitor Switch Diagnostic Chart:





CIRCUIT TEST IMAGE

Neutral Position / Inhibitor Switch Circuit:





CIRCUIT DIAGRAM IMAGE

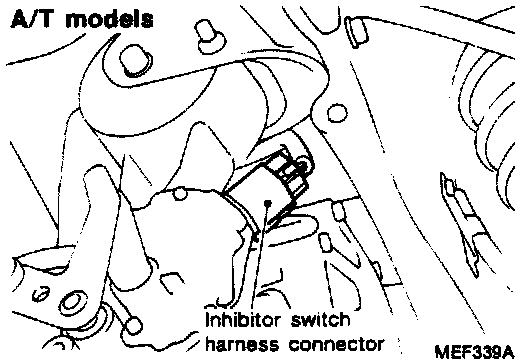

Inhibitor Switch Connector Location:





CONNECTOR LOCATION IMAGE
