Nissan-Datsun
>>
1993
>>
NX L4-1597cc 1.6L DOHC MFI (GA16DE)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Testing and Inspection
>>
Component Tests and General Diagnostics
>>
Component Tests
>>
Fuel Pump Control
Fuel Pump Control

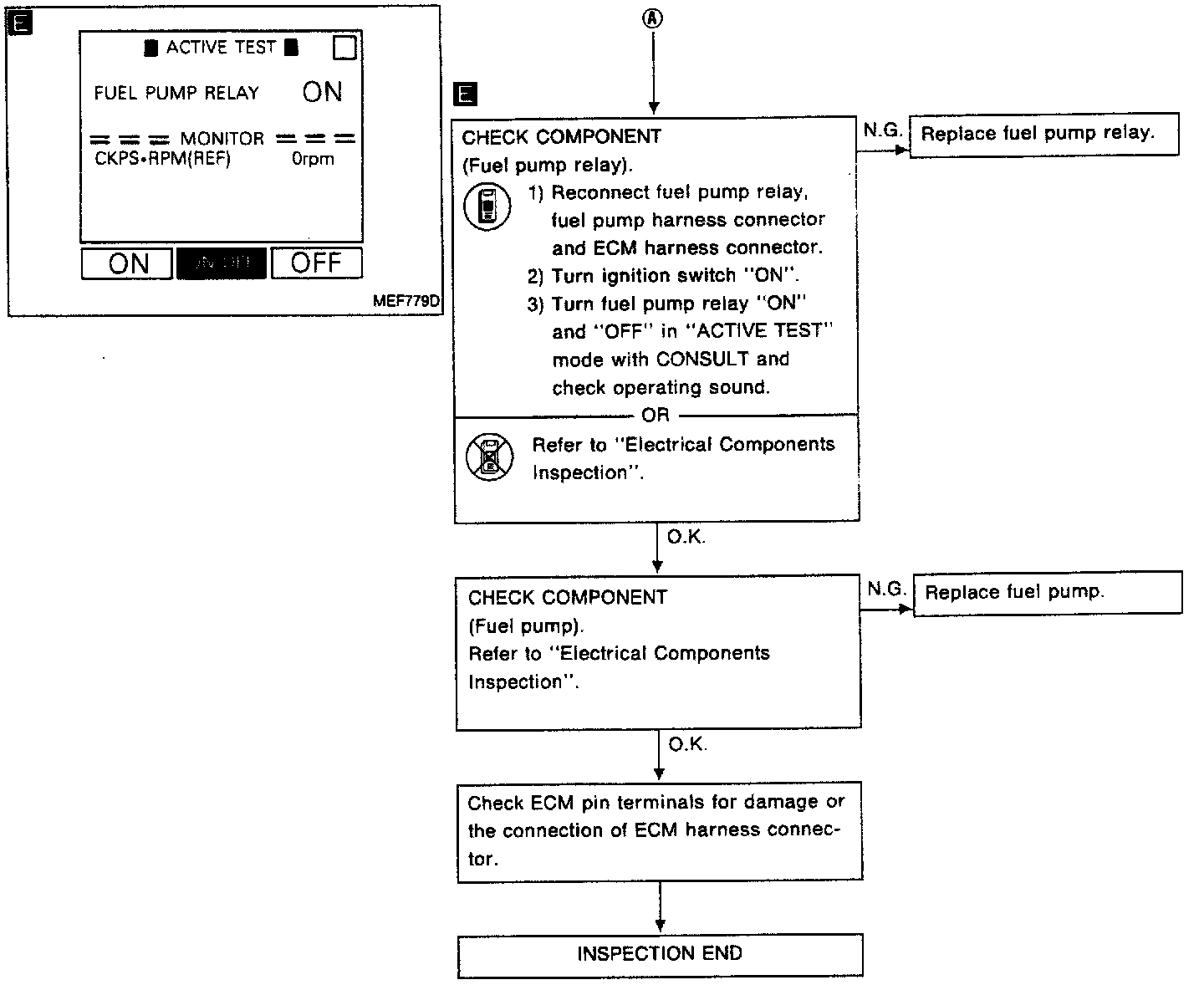

Fuel Pump Diagnostic Chart:
CIRCUIT TEST IMAGE

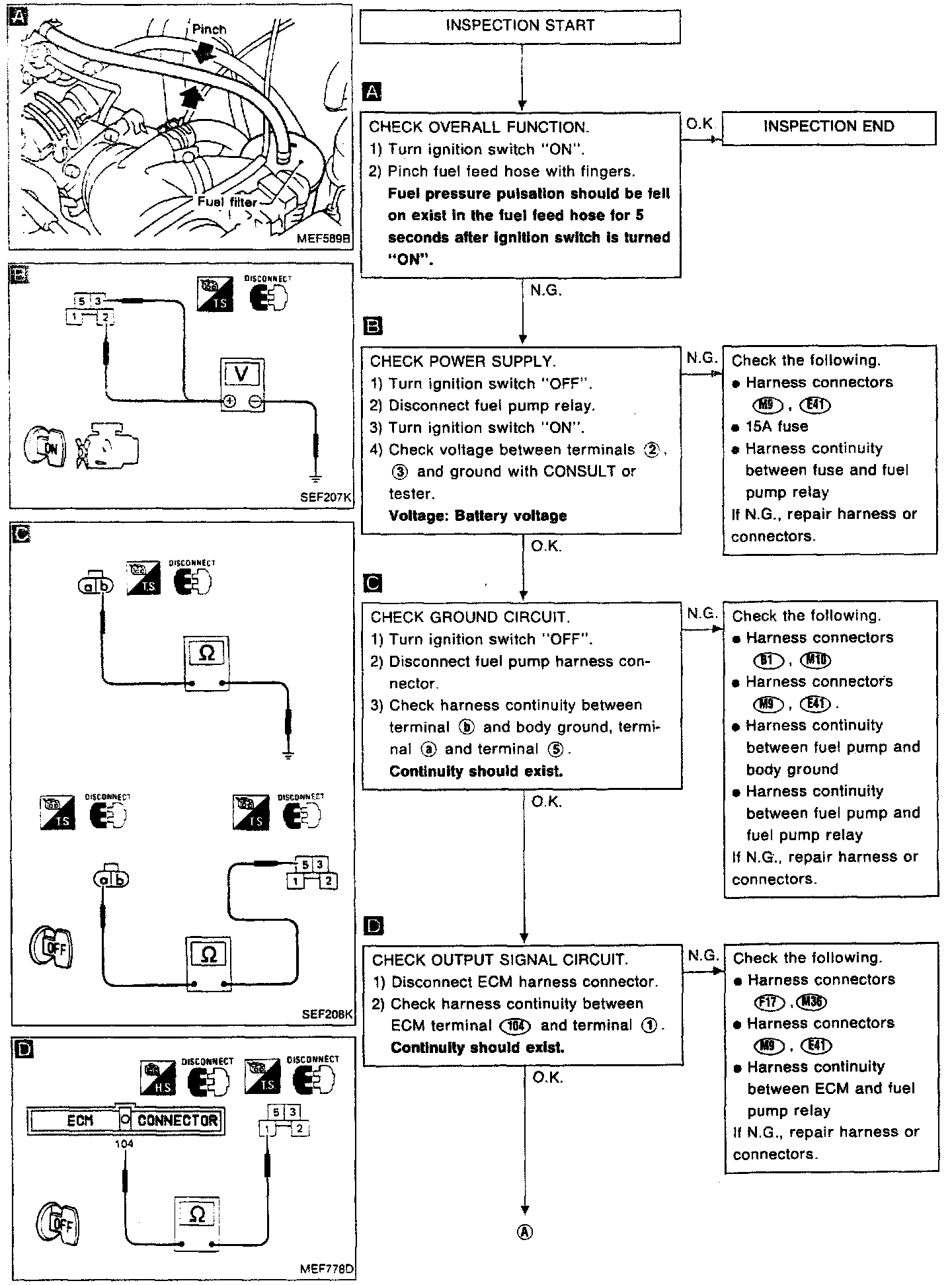

Fuel Pump Diagnostic Chart:
CIRCUIT DIAGRAM IMAGE

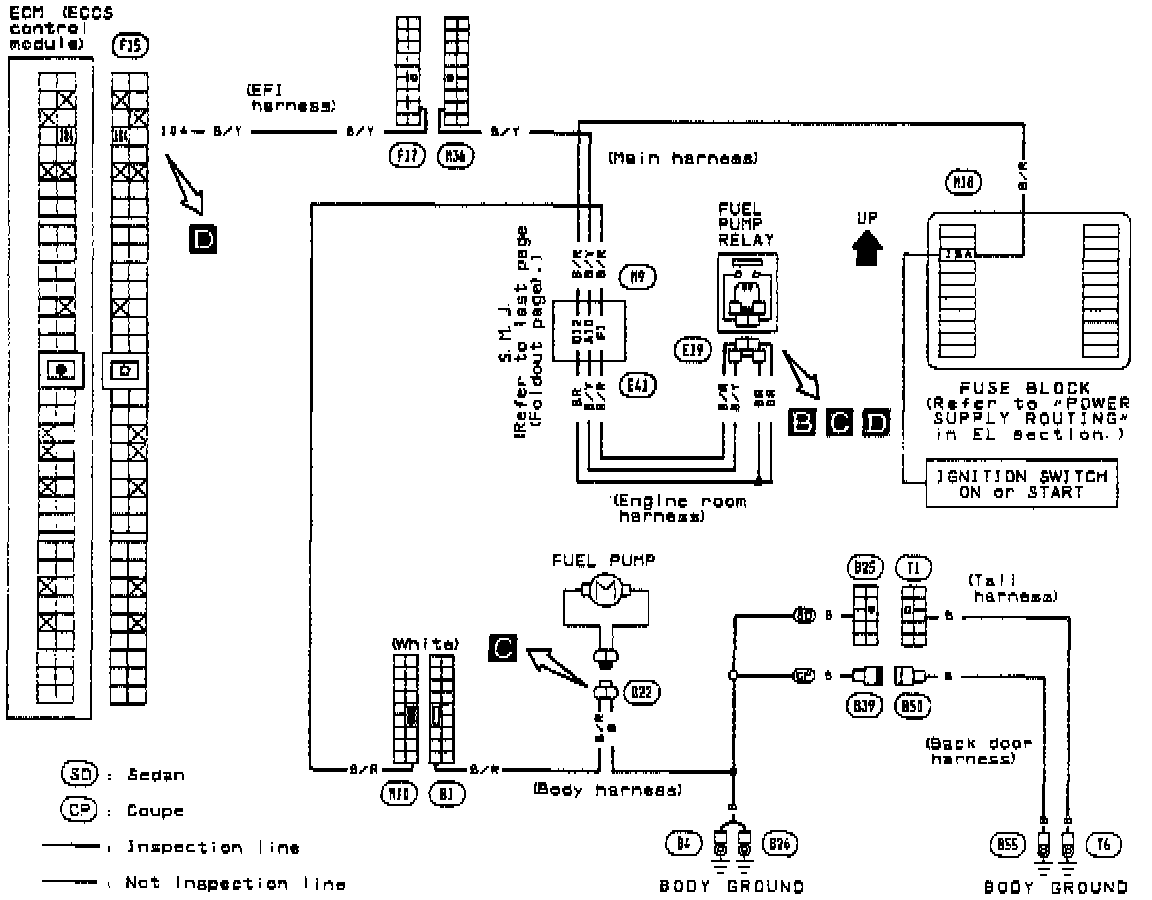

Fuel Pump Circuit:
FUEL INJECTOR
CONNECTOR IMAGE
