NX L4-1597cc 1.6L DOHC MFI (GA16DE)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Testing and Inspection
>>
Component Tests and General Diagnostics
>>
Component Tests
>>
Fuel Injector
Fuel Injector

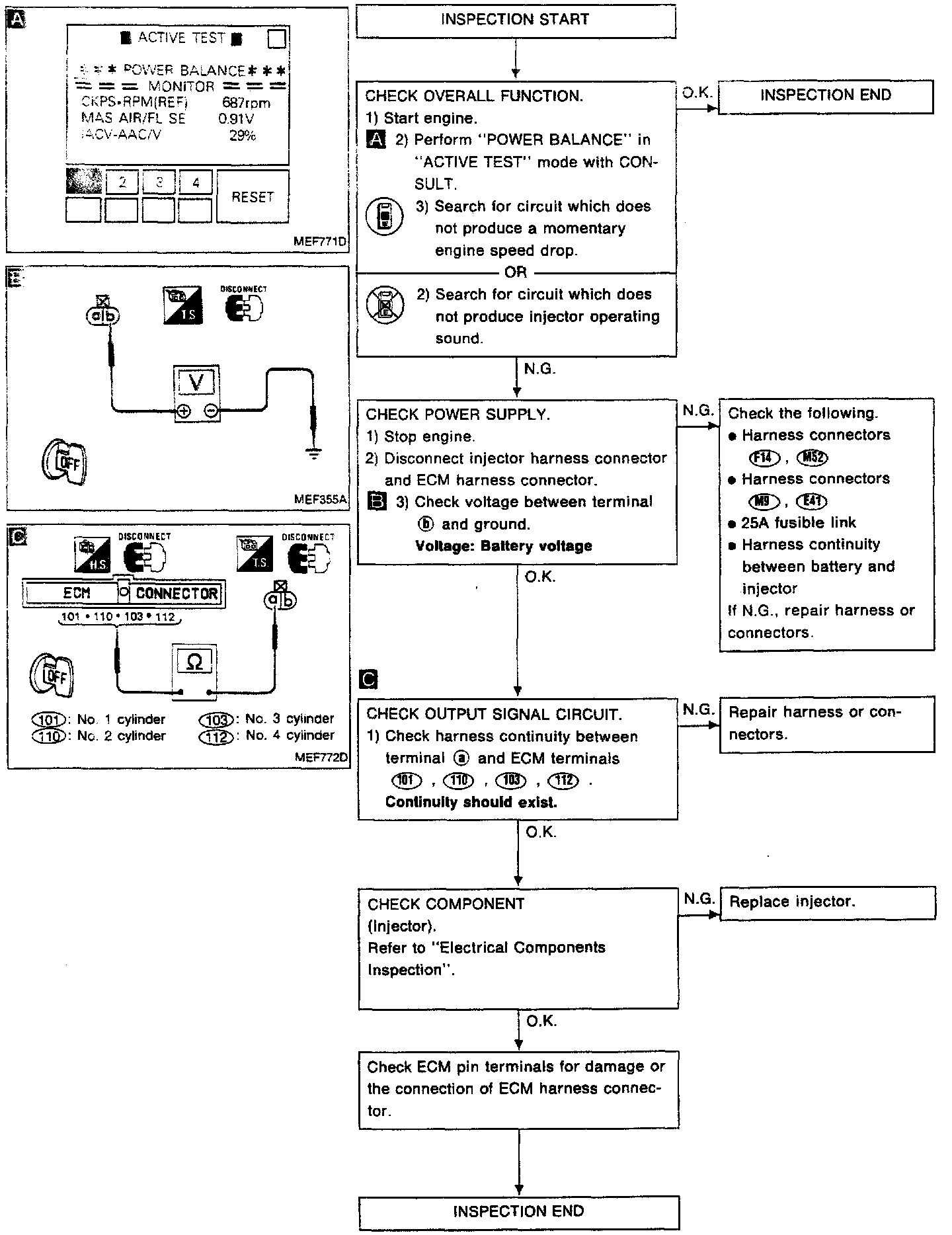

Fuel Injector Diagnostic Chart:
CIRCUIT TEST IMAGE

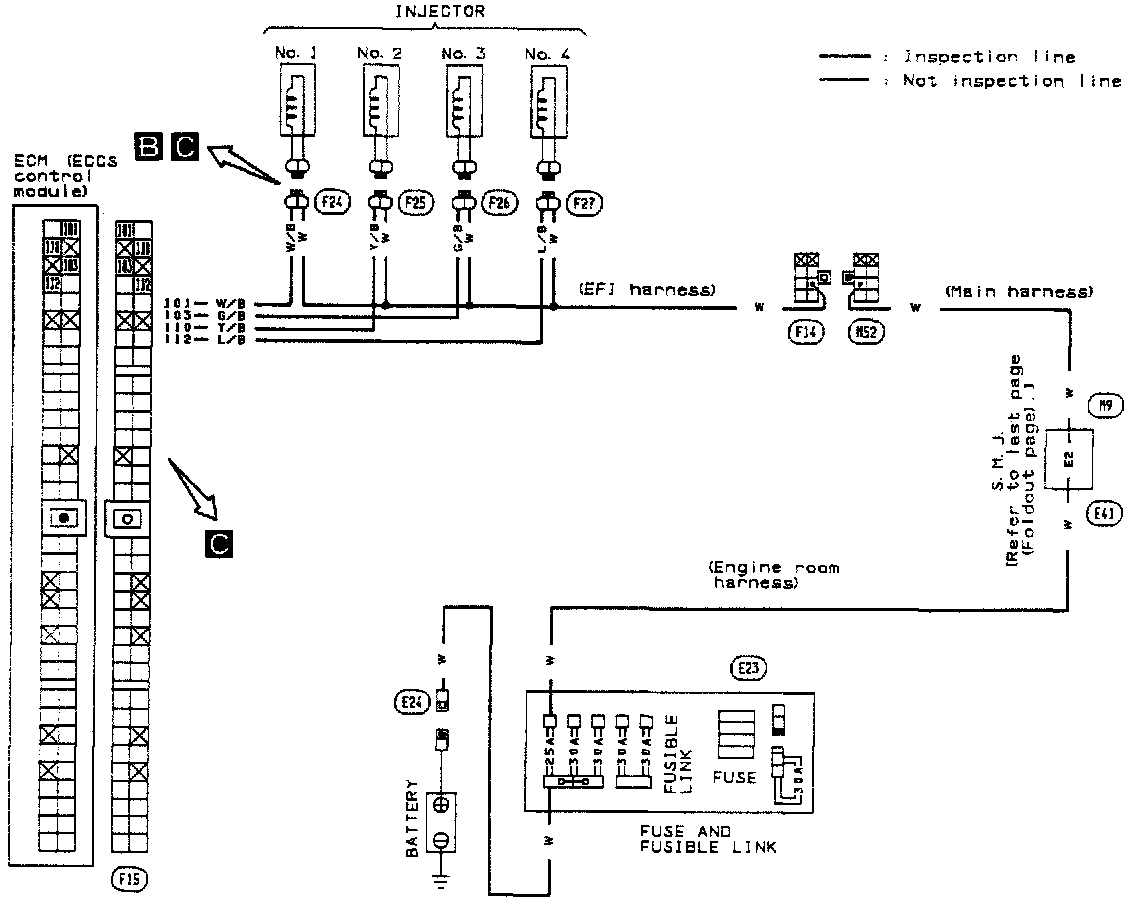

Fuel Injector Circuit:
CIRCUIT DIAGRAM IMAGE
Harness Connector:
FUEL INJECTOR
CONNECTOR IMAGE
