Crankshaft Position Sensor Circuit

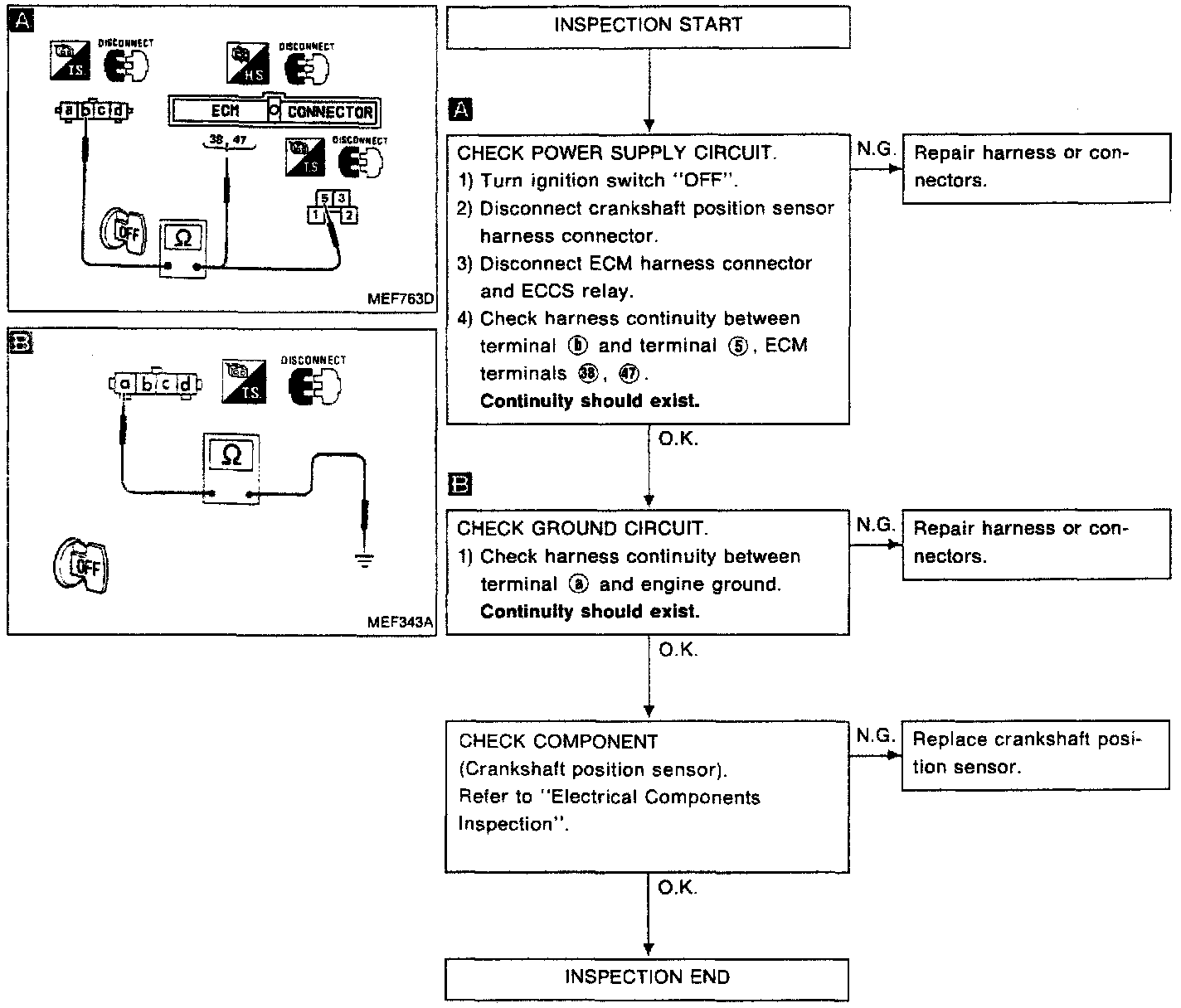

Crankshaft Position Sensor Diagnostic Chart:

DIAGNOSTIC CHART IMAGE

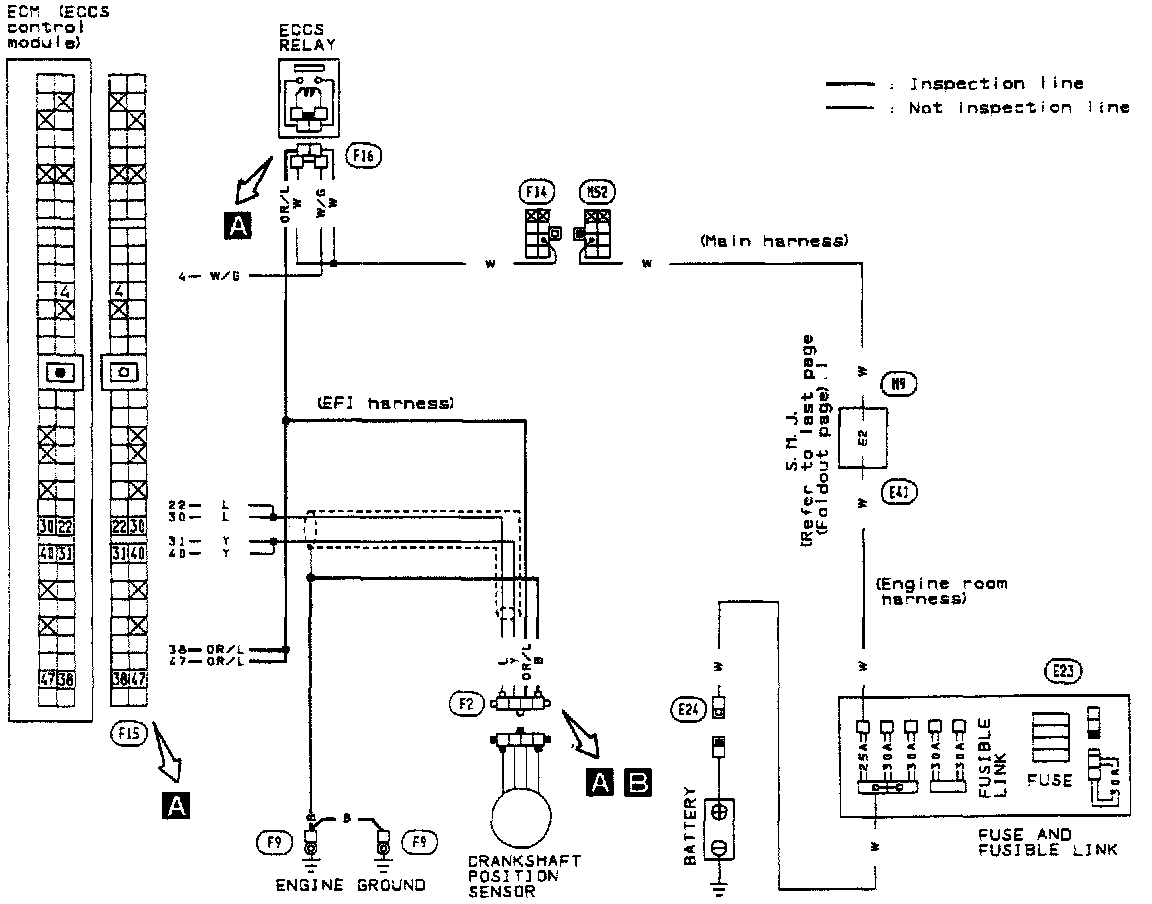

Crankshaft Position Sensor Circuit:

CIRCUIT DIAGRAM IMAGE

Crankshaft Position Sensor Connector Location:

ELECTRICAL CONNECTORS IMAGE
