NX L4-1597cc 1.6L DOHC MFI (GA16DE)
>>
Repair and Diagnosis
>>
Locations
>>
Connector Locations
>>
M Connectors, Main
>>
M-73 Thru M-76, Instrument Side
M-73 Thru M-76, Instrument Side

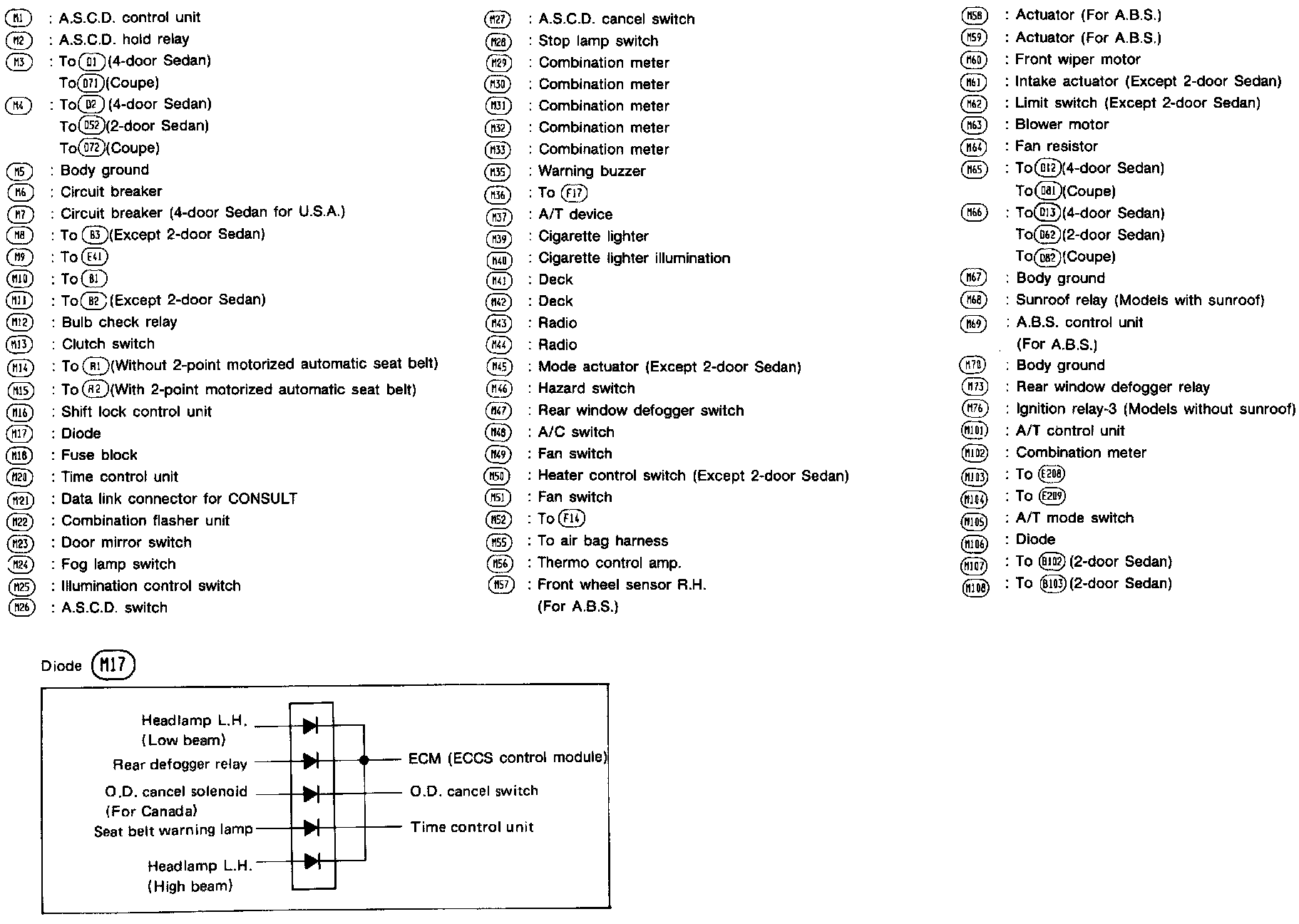

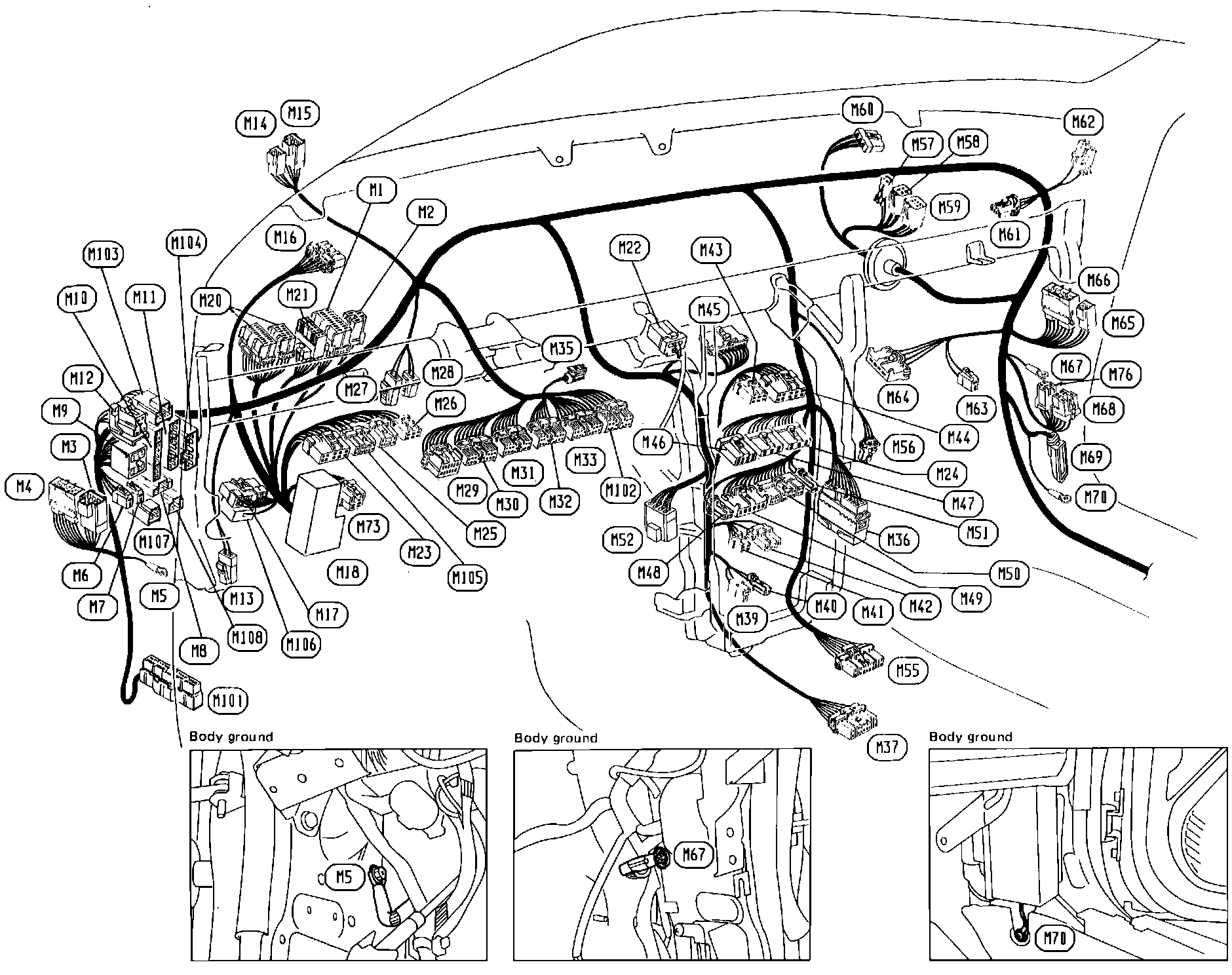

Harness Layout: Main Harness (Instrument Side):
Harness Layout: Main Harness (Instrument Side):
