Nissan-Datsun
>>
1993
>>
NX L4-1597cc 1.6L DOHC MFI (GA16DE)
>>
Repair and Diagnosis
>>
Locations
>>
Connector Locations
>>
F Connectors, E.F.I.
F Connectors, E.F.I.

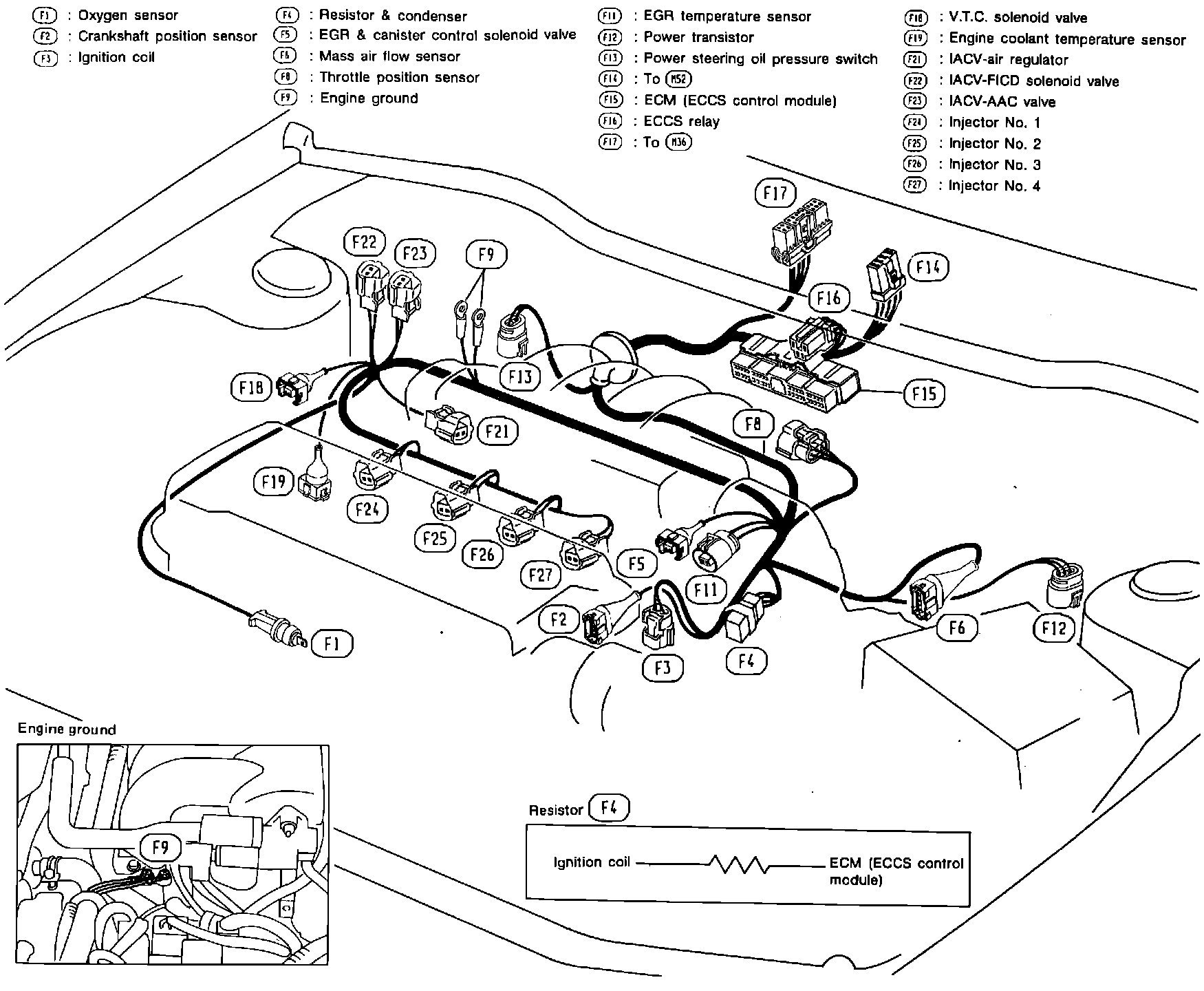

Harness Layout: EFI Harness:
