Nissan-Datsun
>>
1993
>>
NX L4-1597cc 1.6L DOHC MFI (GA16DE)
>>
Repair and Diagnosis
>>
Locations
>>
Connector Locations
>>
D Connectors, Door
>>
D-102
D-102

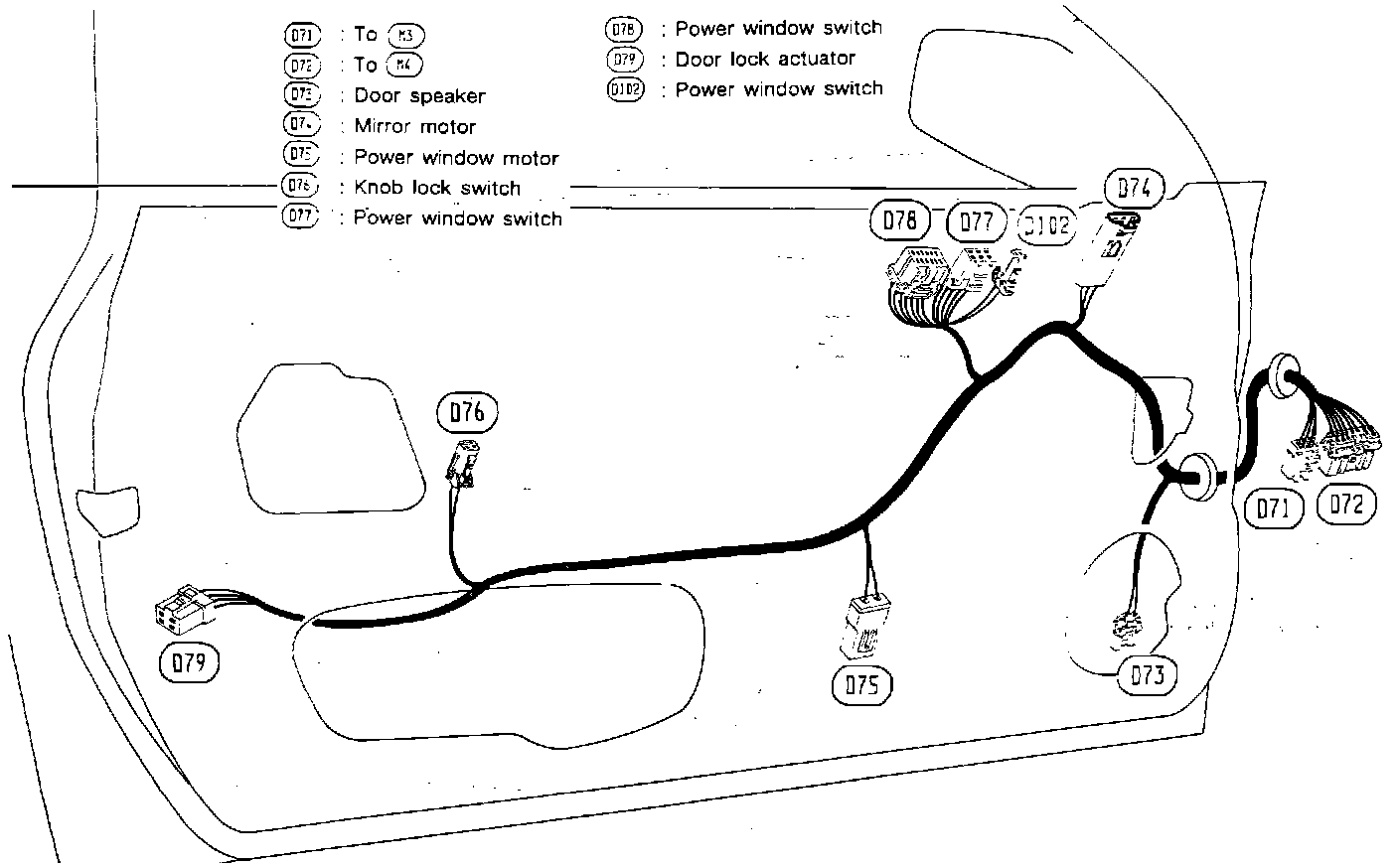

Harness Layout: Door Harness (LH Side):
