LEMON Manuals: Even more car manuals for everyone
Home >> Nissan-Datsun >> 1993 >> NX L4-1597cc 1.6L DOHC MFI (GA16DE) >> Repair and Diagnosis >> Locations >> Component Locations >> Vehicle Lift Points

Vehicle Lift Points

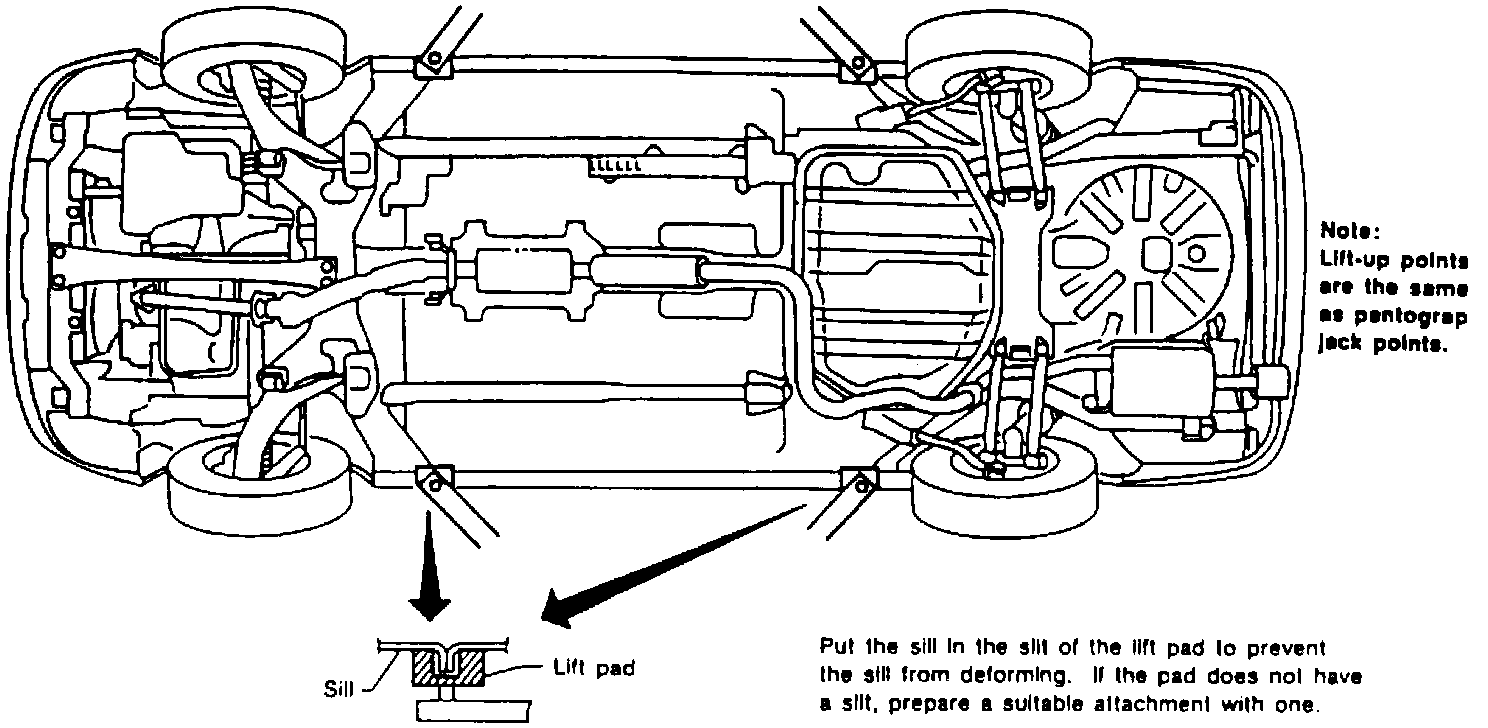

Fig. 7 Hoist:

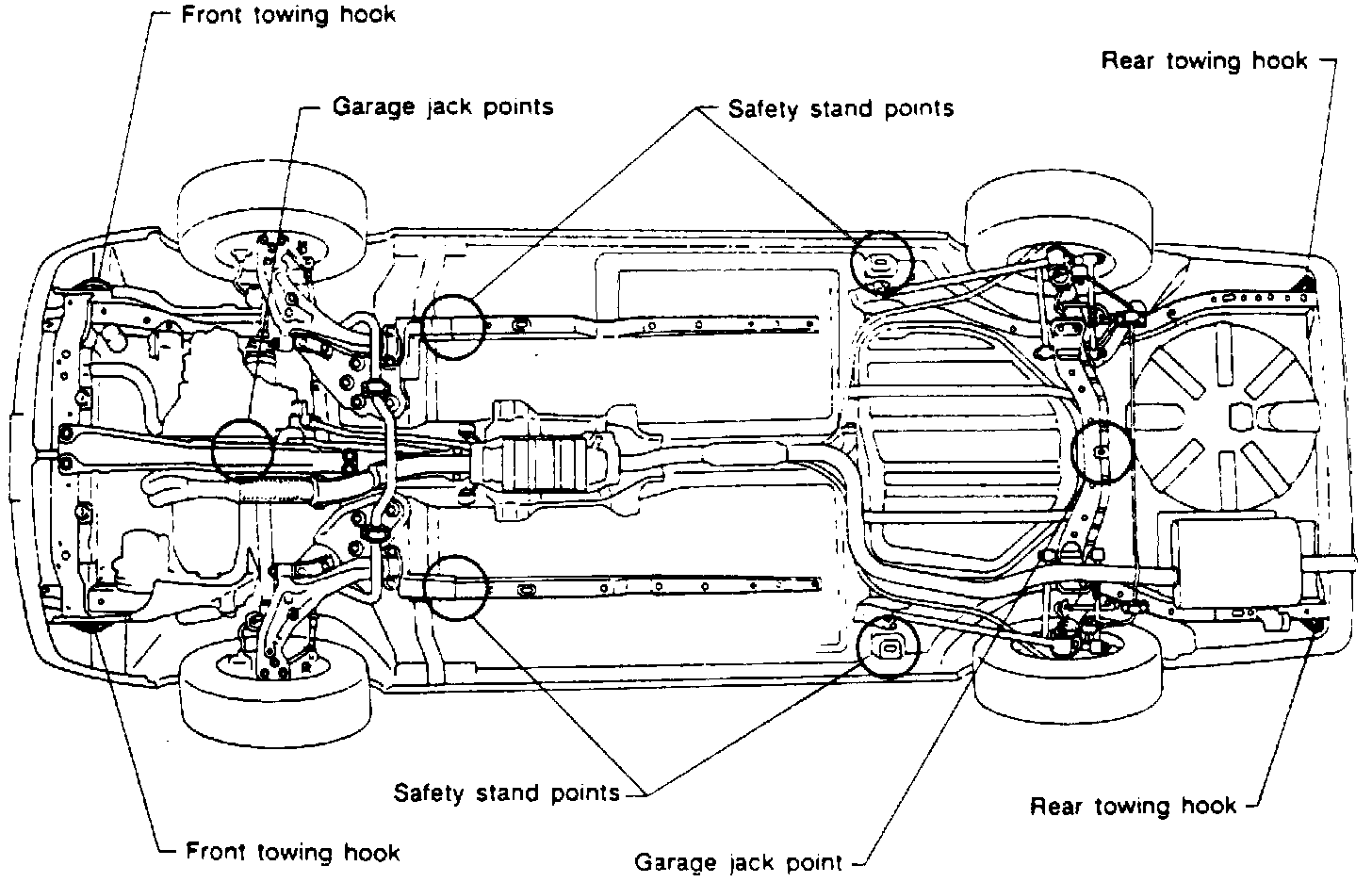

Fig. 6 Floor Jack:
