Instrument Panel, Gauges and Warning Indicators
>>
Fuel Gauge
>>
Testing and Inspection
>>
With Digital Gauges
With Digital Gauges

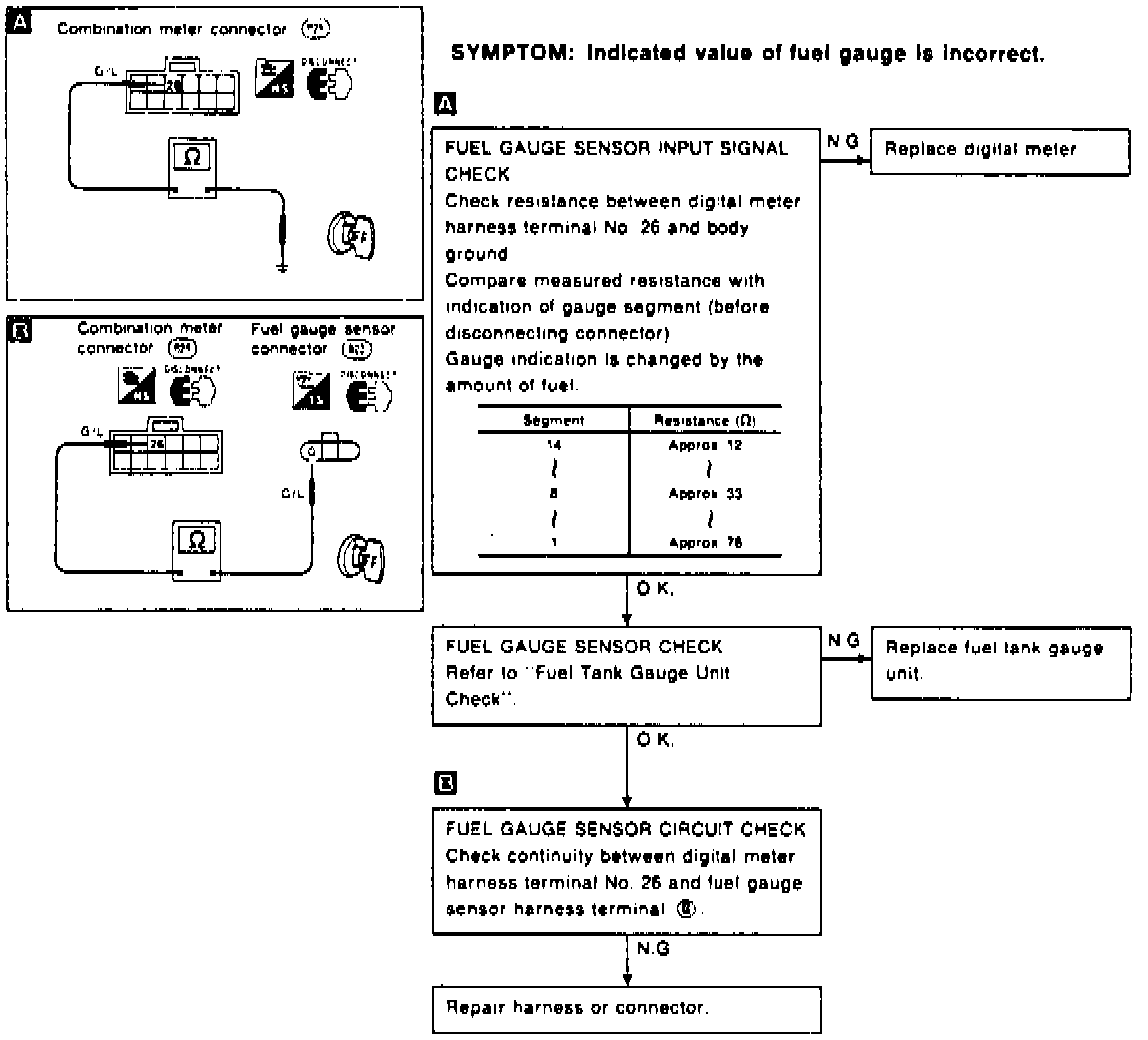

Fig. 6 Fuel Gauge Inspection:
GAUGE DIAGNOSIS
Refer to
Fig. 6
for fuel and/or
temperature gauge
diagnosis.
