Evaporator Core: Service and Repair

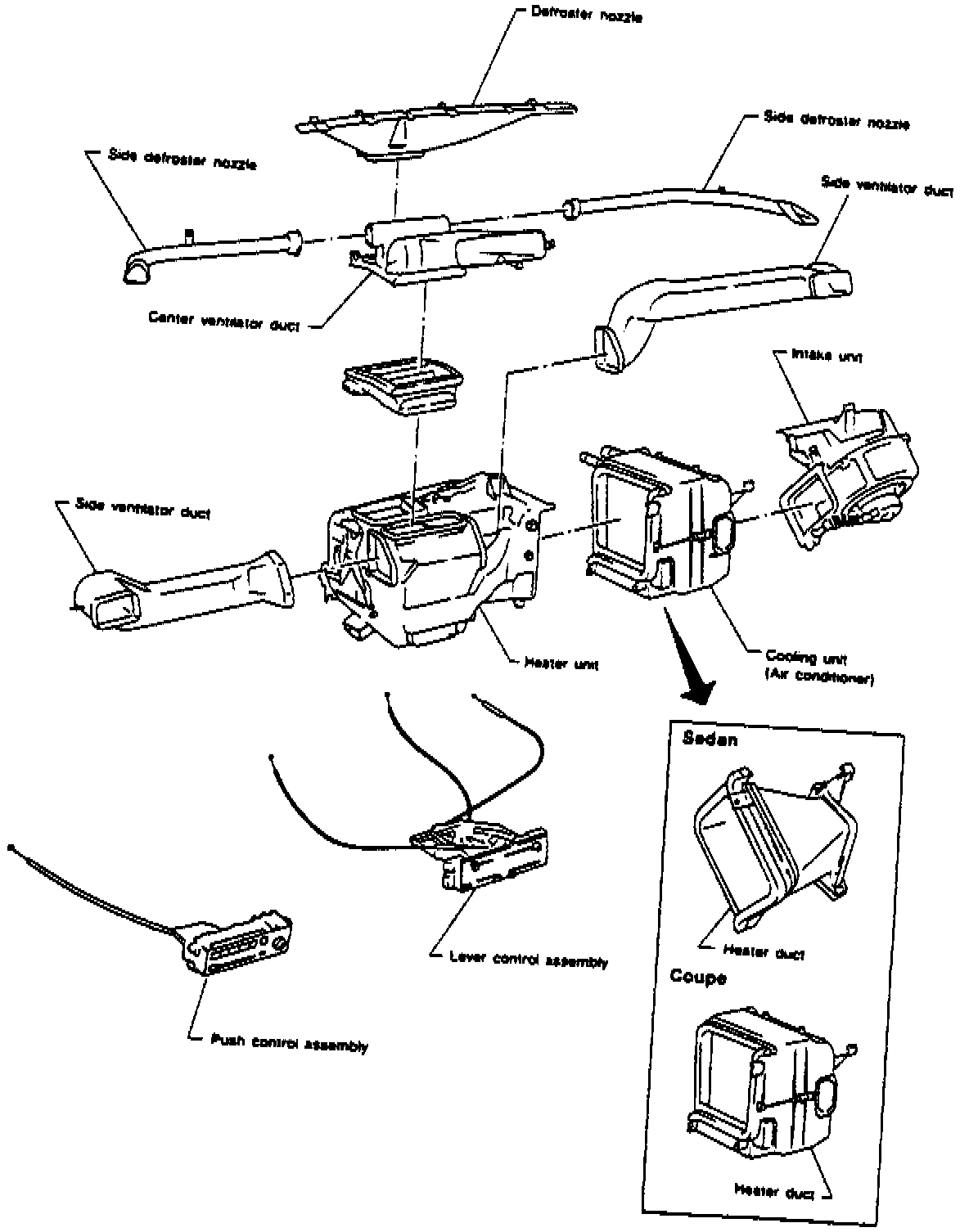

Fig. 9 Exploded View Of HVAC System:

1. Disconnect battery ground cable and discharge A/C system into an approved recovery/recycling container.
2. Remove passenger side instrument lower cover and glove compartment.
3. Disconnect wiring harness connectors to evaporator.
4. Separate cooling unit case halves and remove evaporator, Fig. 9.
5. Reverse procedure to install.
