Trouble Diagnosis

Trouble Diagnoses
Remove driver's side lower instrument panel and lower knee protector.

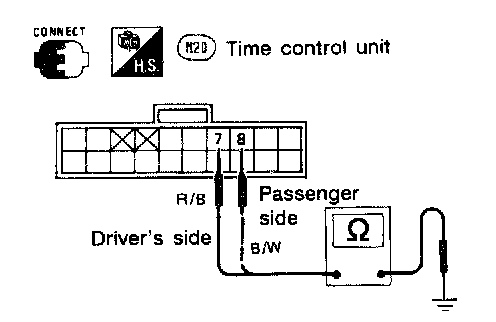

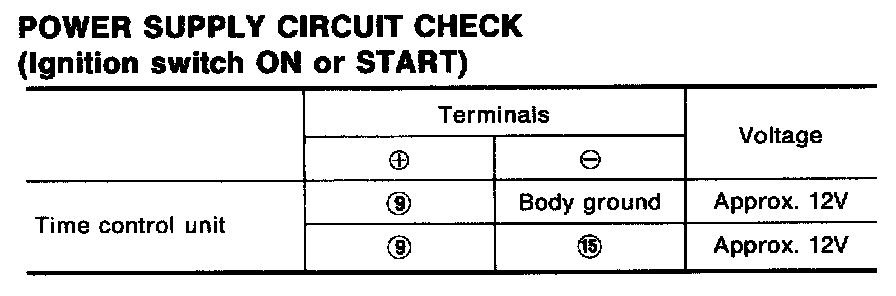

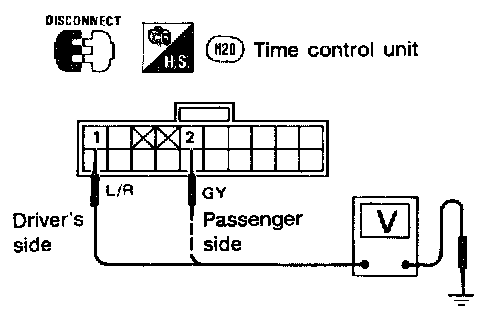

POWER SUPPLY CIRCUIT CHECK
(Ignition Switch ON or START)

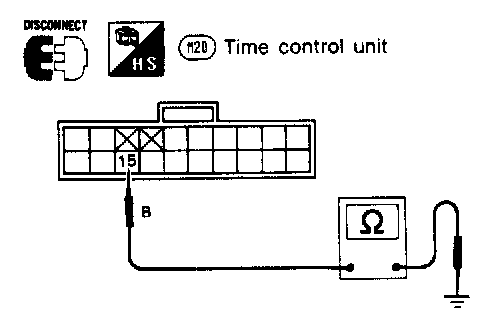

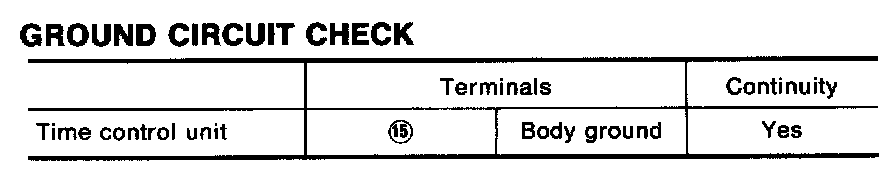

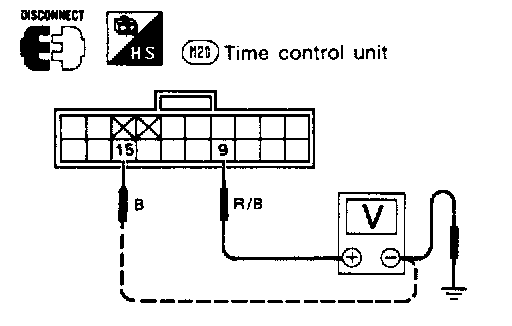

GROUND CIRCUIT CHECK

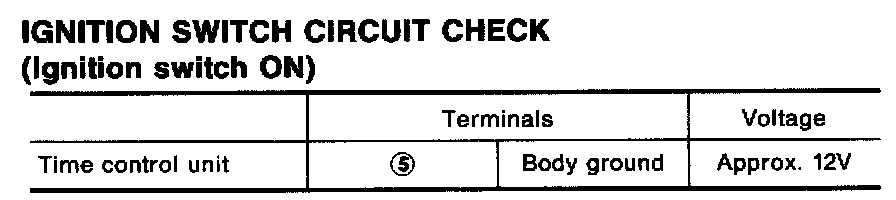

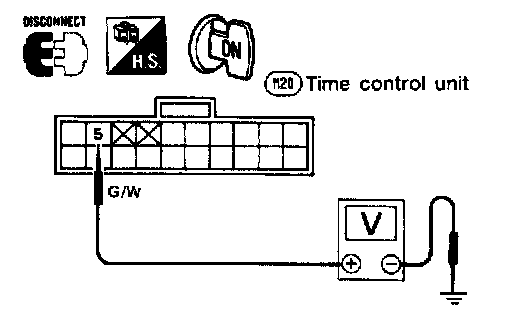

IGNITION SWITCH CIRCUIT CHECK

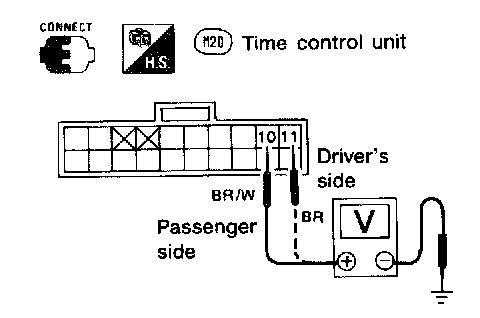

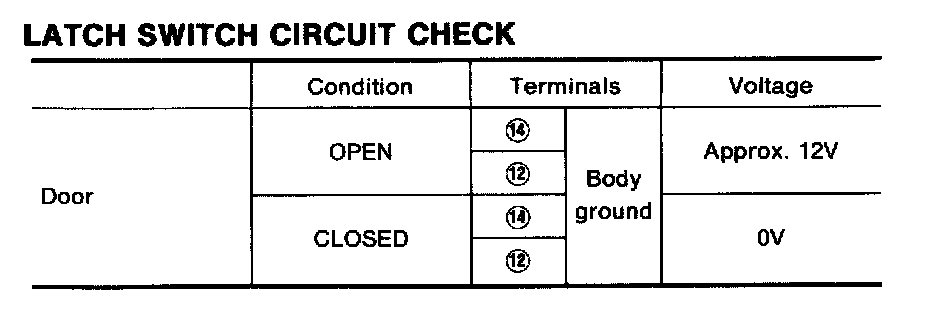

LATCH SWITCH CIRCUIT CHECK

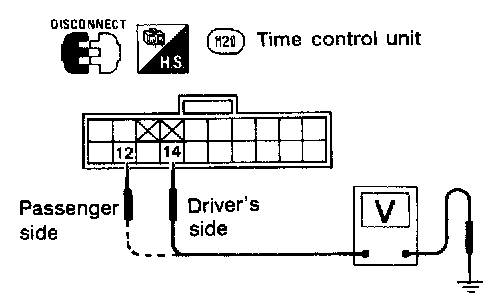

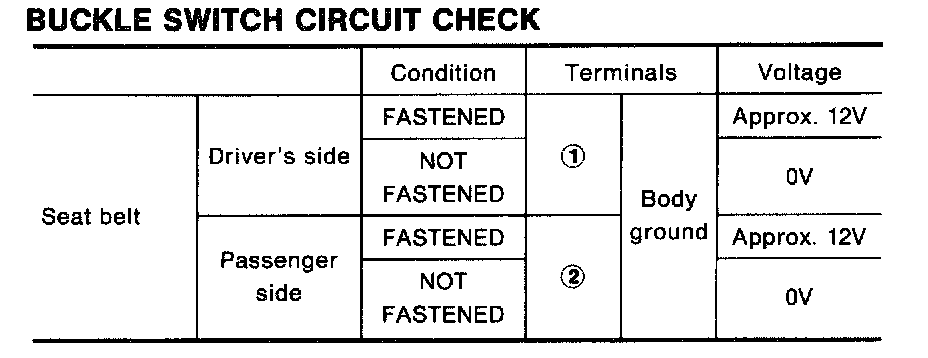

BUCKLE SWITCH CIRCUIT CHECK

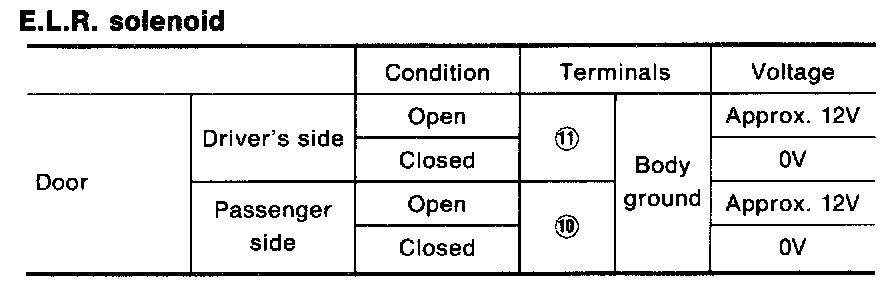

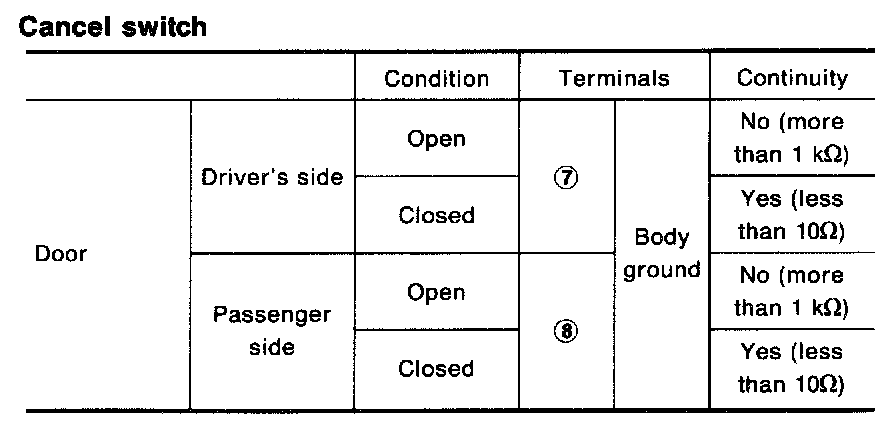

SEAT BELT LOCKING CANCELLER CIRCUIT CHECK

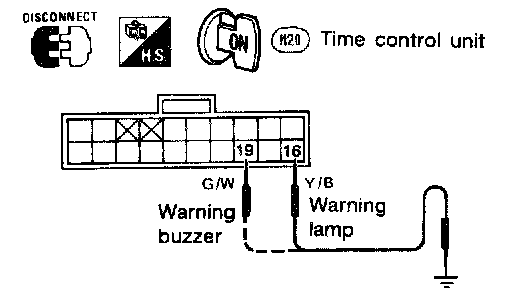

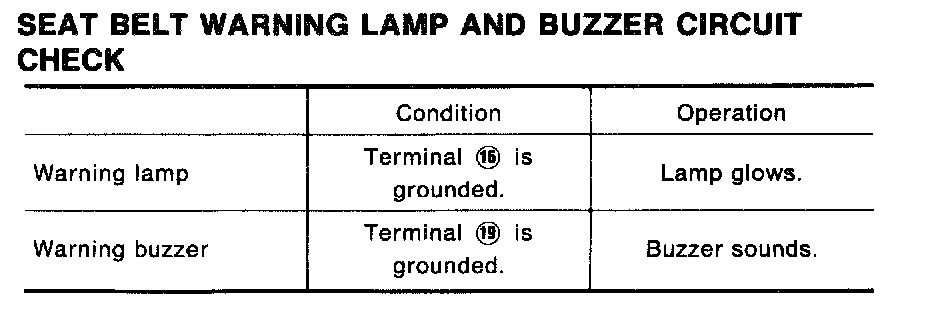

SEAT BELT WARNING LAMP AND BUZZER CIRCUIT CHECK
